Fluid - A/T: Service and Repair

Changing A/T Fluid
1. Warm up A/T fluid.
2. Stop engine.




3. Drain A/T fluid from drain plug and refill with new A/T fluid.
Always refill same volume with drained fluid.

Fluid grade : NISSAN Matic "D" (Continental U.S. and Alaska) or Canada NISSAN Automatic Transmission Fluid. Refer to "Fluids and Lubricants".

Fluid capacity (With torque converter) :
RE4F03B (QG18DE) 7.0 l (7 - 3/8 US qt, 6 - 1/8 Imp qt)
RE4F04B (QR25DE) 9.4 l (10.0 US qt, 8 - 1/4 Imp qt)

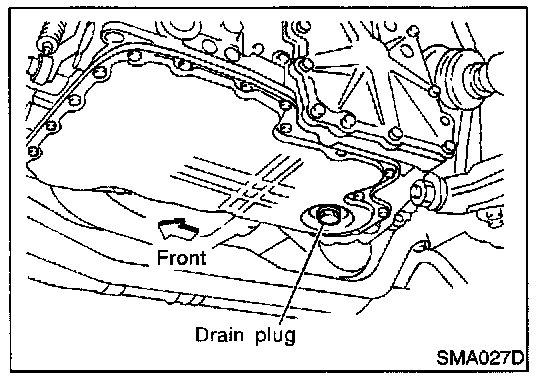

Drain plug
Tightening Torque : 29 - 39 N.m (3.0 - 4.0 kg-m, 22 - 29 ft-lb)

4. Run engine at idle speed for five minutes.
5. Check fluid level and condition. Refer to "Checking A/T Fluid". If fluid is still dirty, repeat steps 2 through 5.
