Ignition Coil: Testing and Inspection
Component InspectionIGNITION COIL WITH POWER TRANSISTOR
1. Turn ignition switch "OFF".
2. Disconnect ignition coil harness connector.

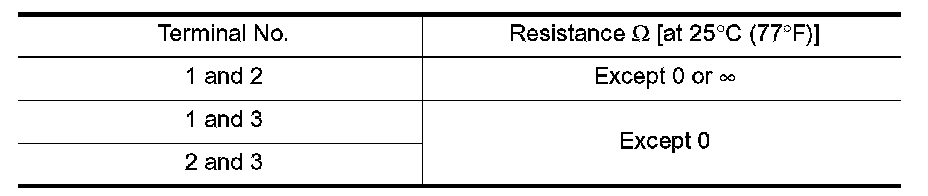

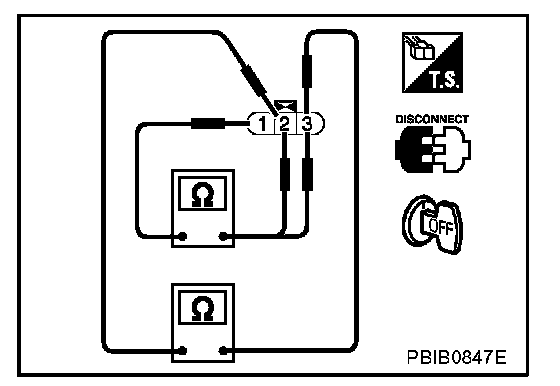

3. Check resistance between ignition coil terminals as shown.
IGNITION COIL WITH POWER TRANSISTOR
1. Turn ignition switch "OFF".
2. Disconnect ignition coil harness connector.
3. Check resistance between ignition coil terminals as shown.
