Control Assembly: Service and Repair

A/C CONTROLLER

Removal and Installation

REMOVAL
1. Remove console finisher (A/T) or console boot (M/T). Refer to "Removal and Installation".

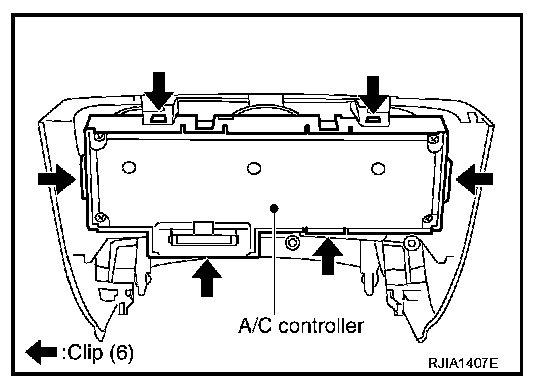

2. Remove A/C controller from console finisher (A/T) or console boot (M/T).

INSTALLATION
Installation is basically the reverse order of removal.
