Radiator Cooling Fan Control Module: Description and Operation
SYSTEM DESCRIPTIONCOOLING FAN CONTROL

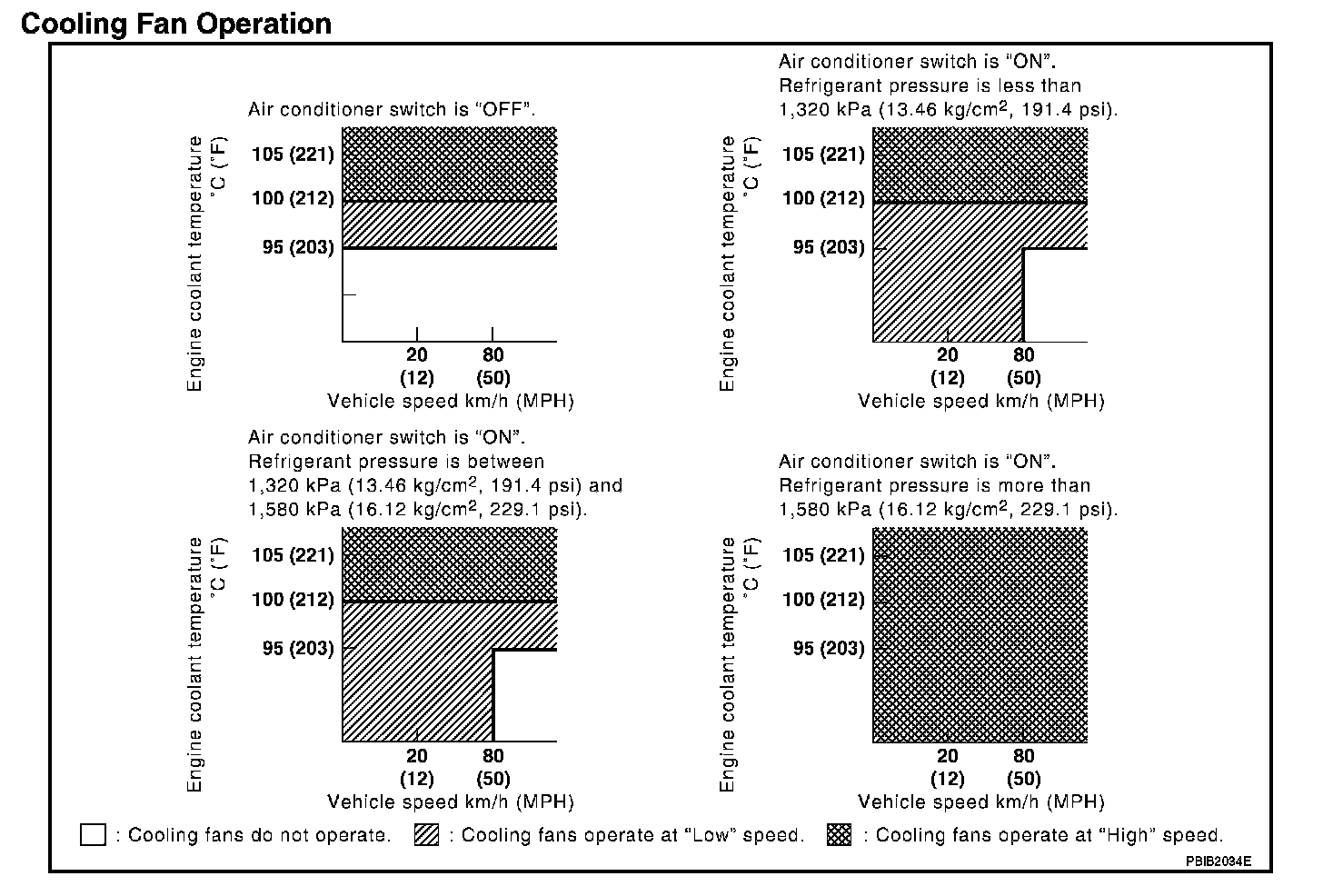

The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].
