Control Assembly: Service and Repair

CONTROL UNIT

Removal and Installation

REMOVAL
1. Remove cluster lid C.
2. Remove audio unit.

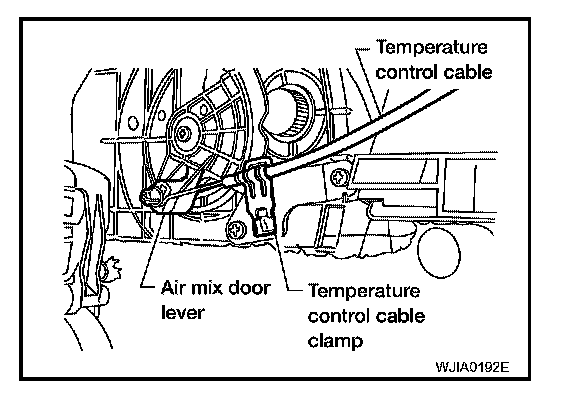

3. Remove the temperature control cable clamp and then remove the cable from the air mix door lever.

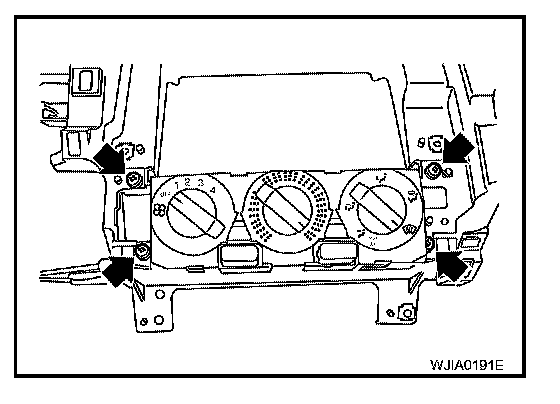

4. Remove the A/C control unit screws and then remove it from the instrument panel.
5. Disconnect the A/C control unit connectors and then remove it.

INSTALLATION
Installation is in the reverse order of removal.
