Auto Amp
AUTO AMPRemoval and Installation
1. Remove cluster lid D.
2. Remove the audio unit.

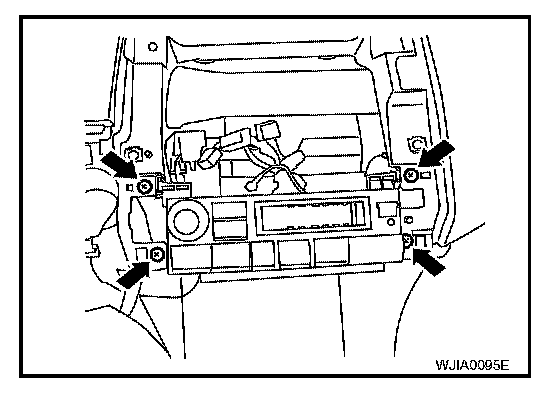

3. Remove the A/C auto amp. screws and then remove it from the instrument panel.
4. Disconnect the connectors.
Removal and Installation
1. Remove cluster lid D.
2. Remove the audio unit.
3. Remove the A/C auto amp. screws and then remove it from the instrument panel.
4. Disconnect the connectors.
