Control Module HVAC: Testing and Inspection

Thermo Control Amp.
1. Run engine and operate A/C system.

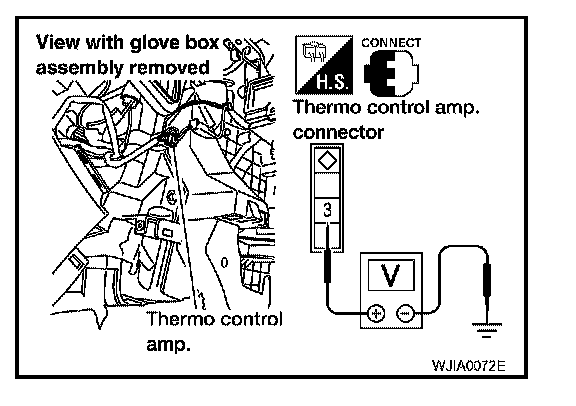

2. Connect the voltmeter from harness side.

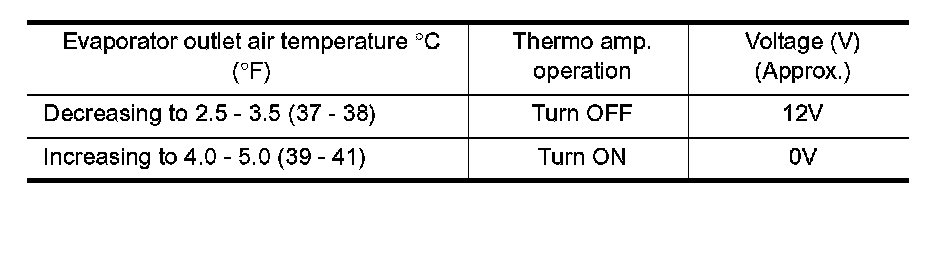

3. Check the thermo control amp. operation as shown in the table.
