CAN Communication Circuit Check

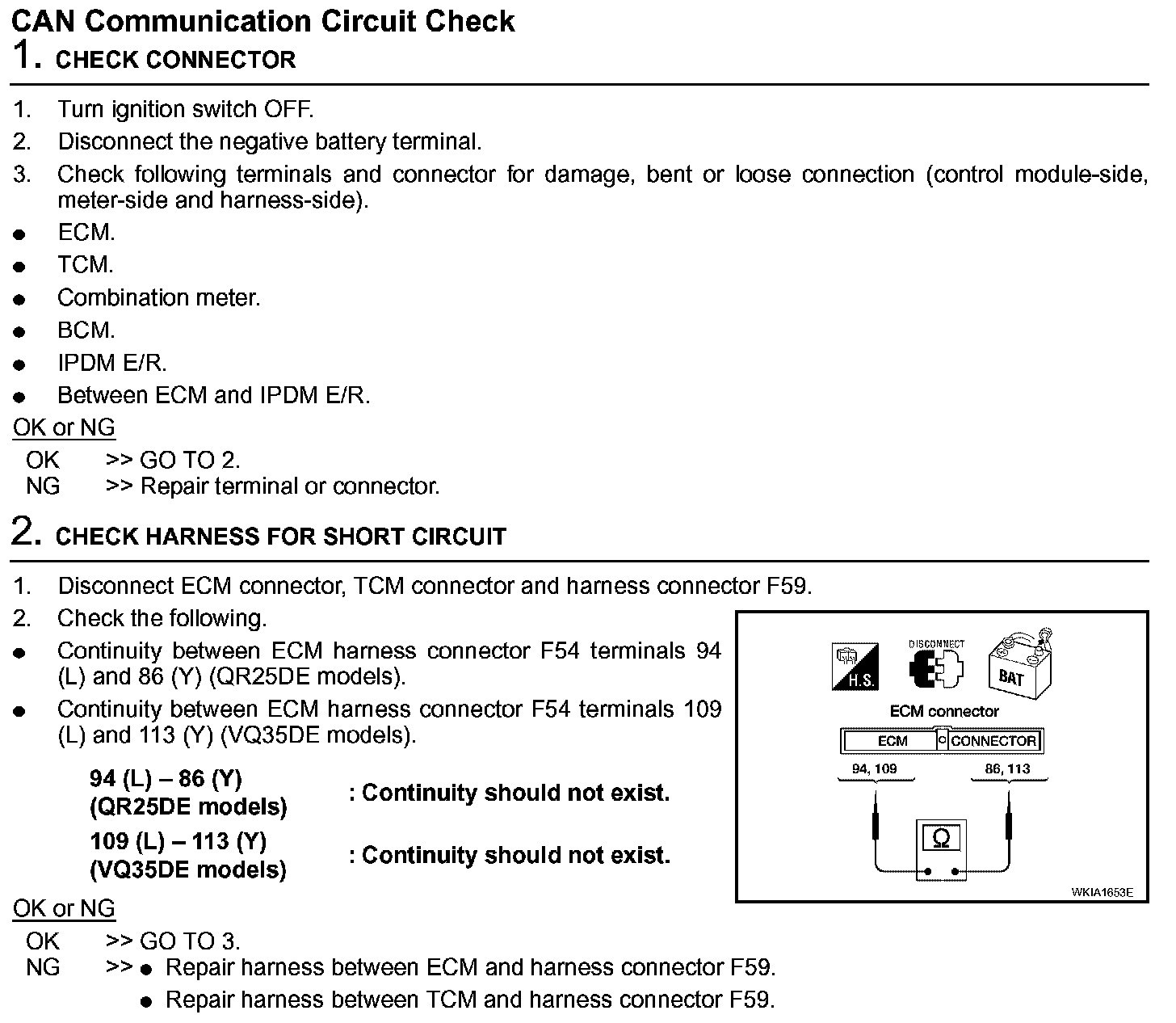

CAN Communication Circuit Check (Steps 1 - 2):

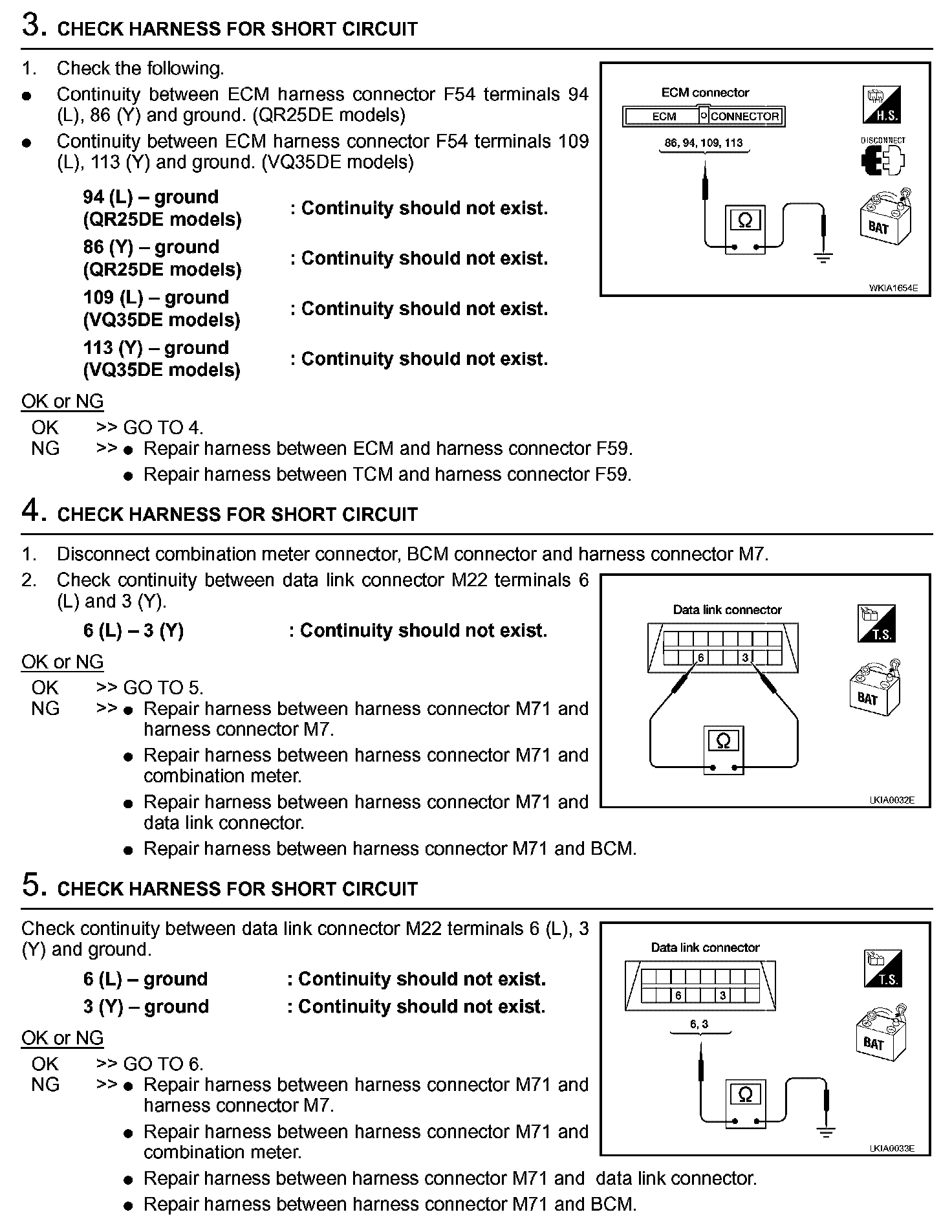

CAN Communication Circuit Check (Steps 3 - 5):

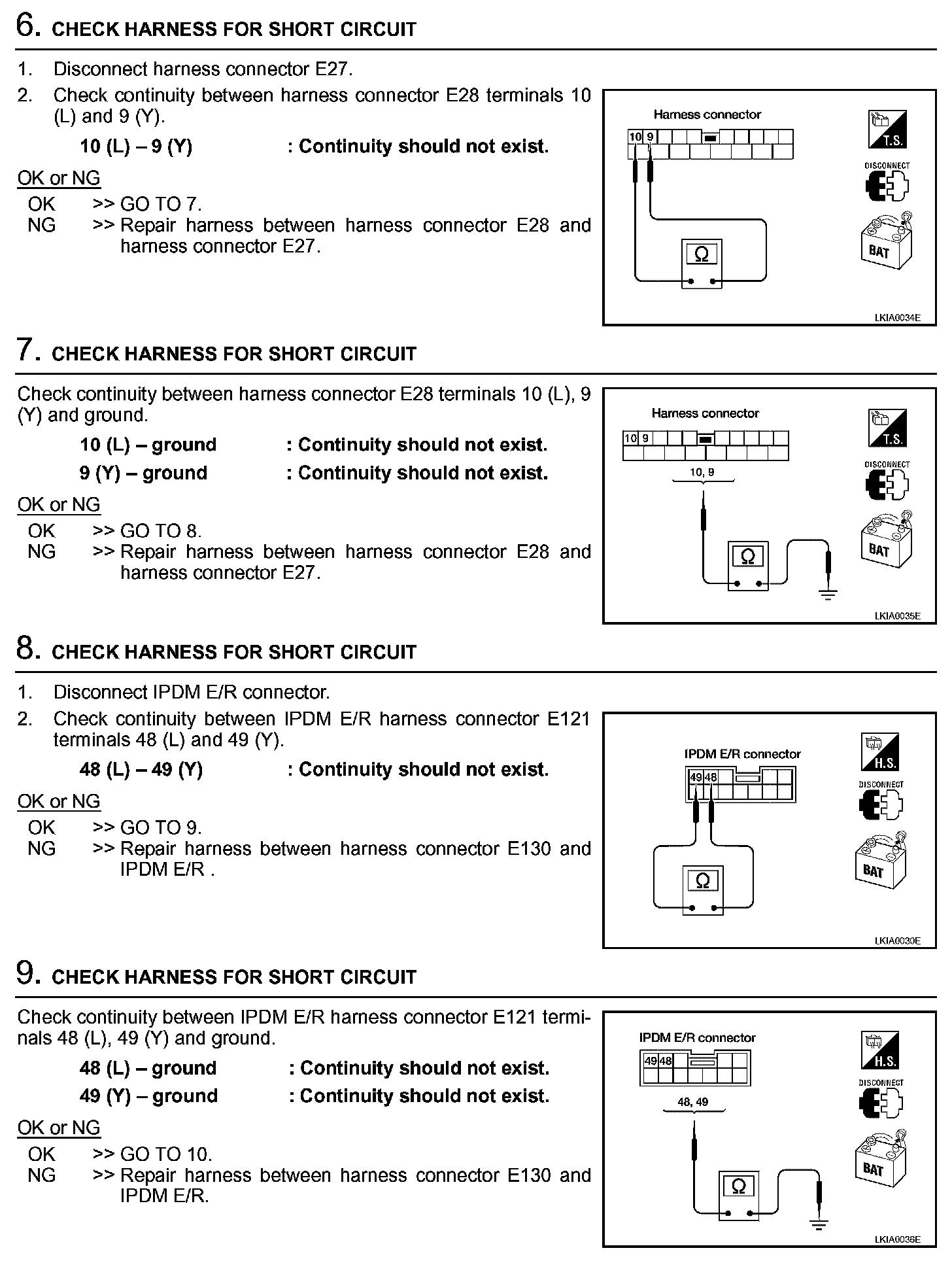

CAN Communication Circuit Check (Steps 6 - 9):

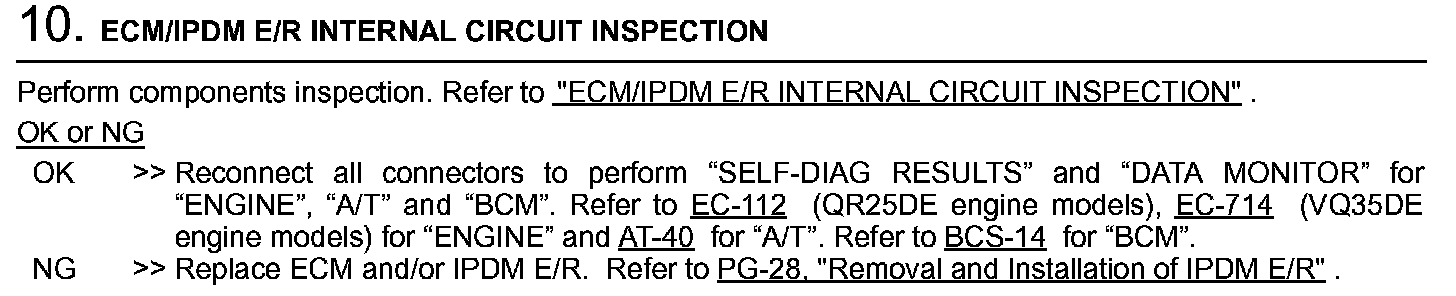

CAN Communication Circuit Check (Step 10):
