Circuit Check Between TCM and Combination Meter
Circuit Check Between TCM and Combination Meter

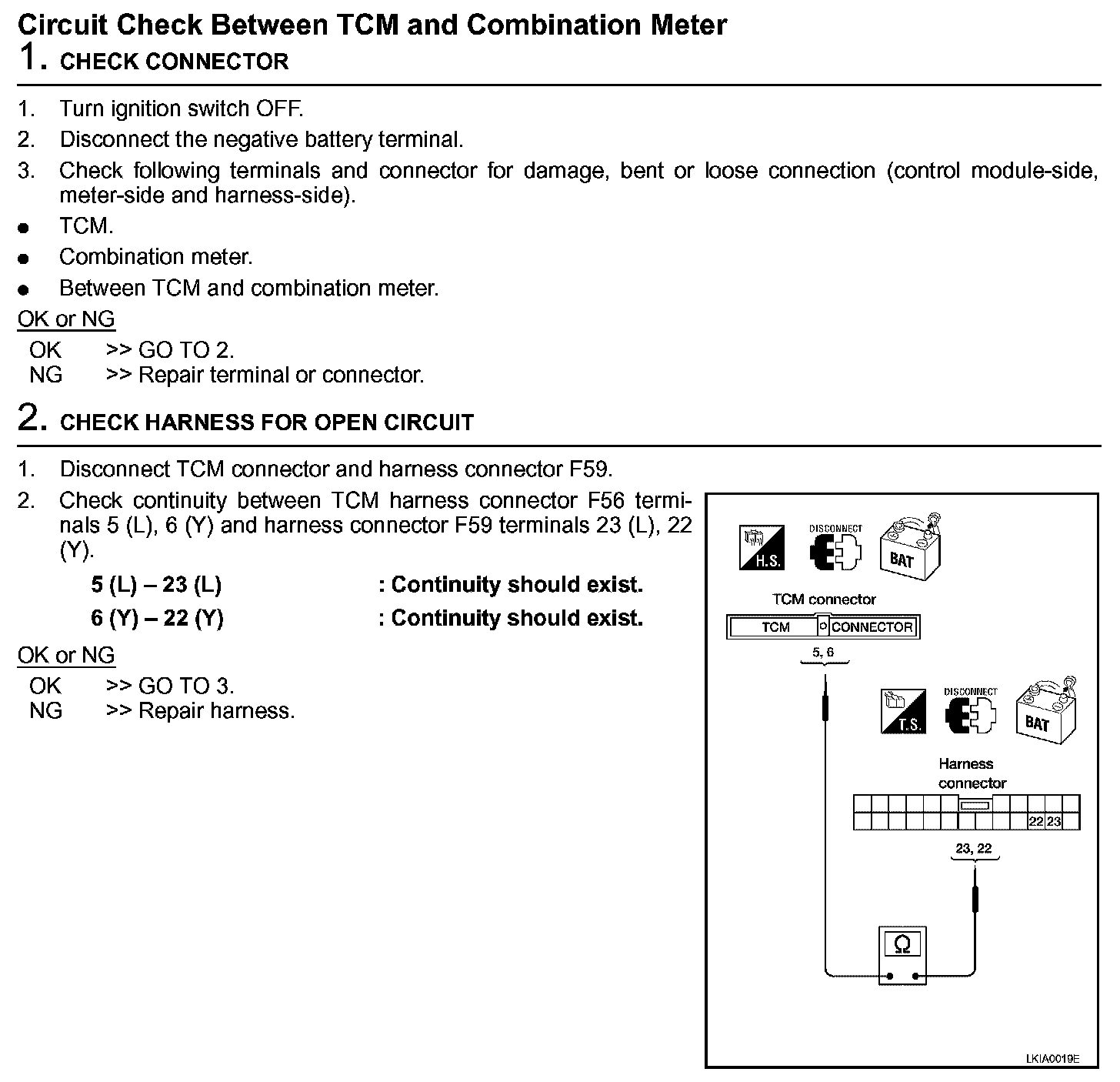

Circuit Check Between TCM And Combination Meter (Steps 1 - 2):

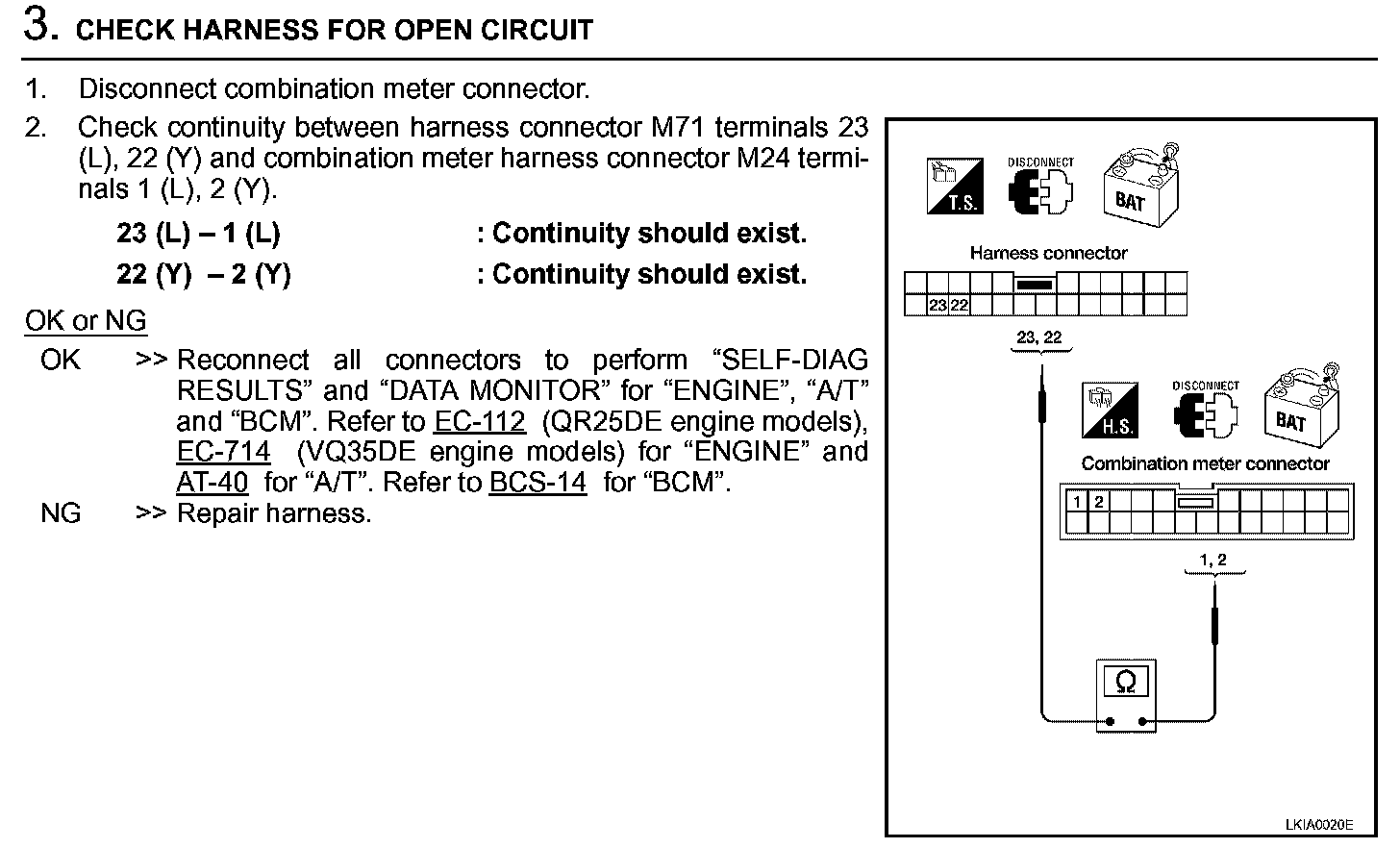

Circuit Check Between TCM And Combination Meter (Step 3):
