ECM/IPDM E/R Internal Circuit Inspection

Component Inspection

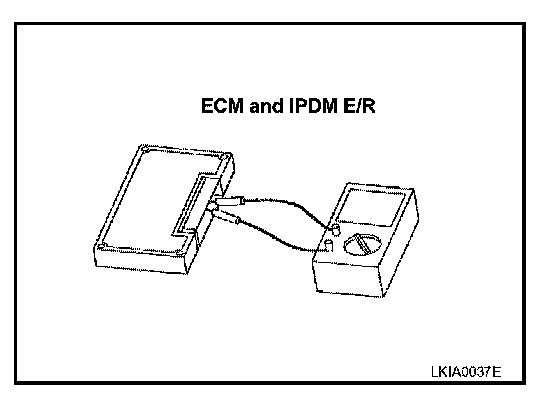

ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION
- Remove ECM and IPDM E/R from vehicle. Refer to "Removal and Installation of Power Distribution Module".

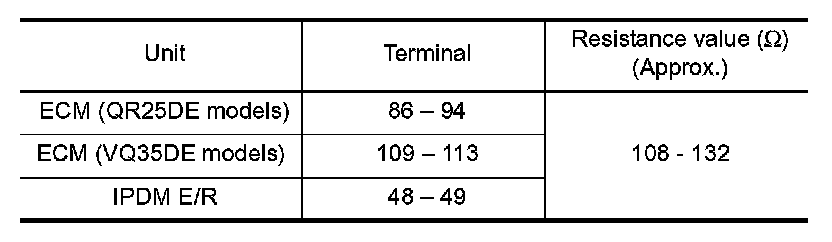

- Check resistance between ECM terminals 86 and 94 (QR25DE models).
- Check resistance between ECM terminals 109 and 113 (VQ35DE models).
- Check resistance between IPDM E/R terminals 48 and 49.
