Condenser: Testing and Inspection

IGNITION SIGNAL

Component Inspection

CONDENSER
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.

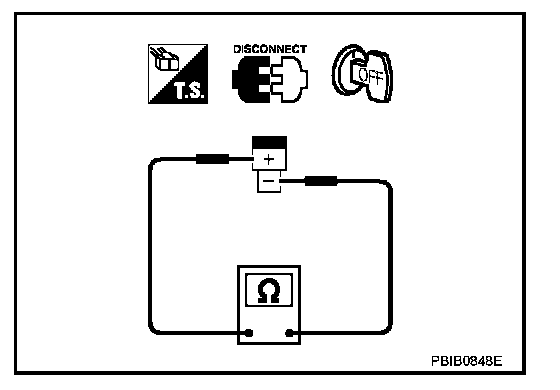

3. Check resistance between condenser terminals + and -.

Resistance Above 1 MOhm at 25 °C (77 °F)

FUEL PUMP

CONDENSER
1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.

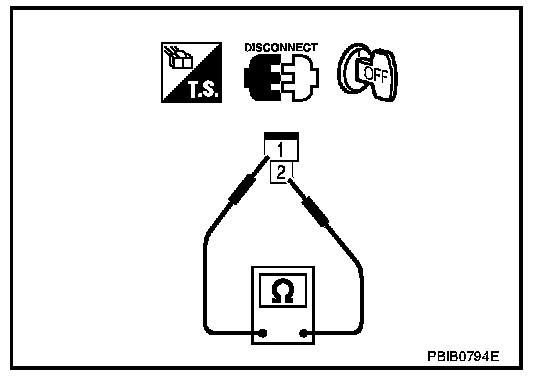

3. Check resistance between condenser terminals 1 and 2.

Resistance Above 1 MOhm at 25 °C (77 °F)
