Nissan-Datsun
>>
2004
>>
Maxima V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Intake Manifold
Intake Manifold

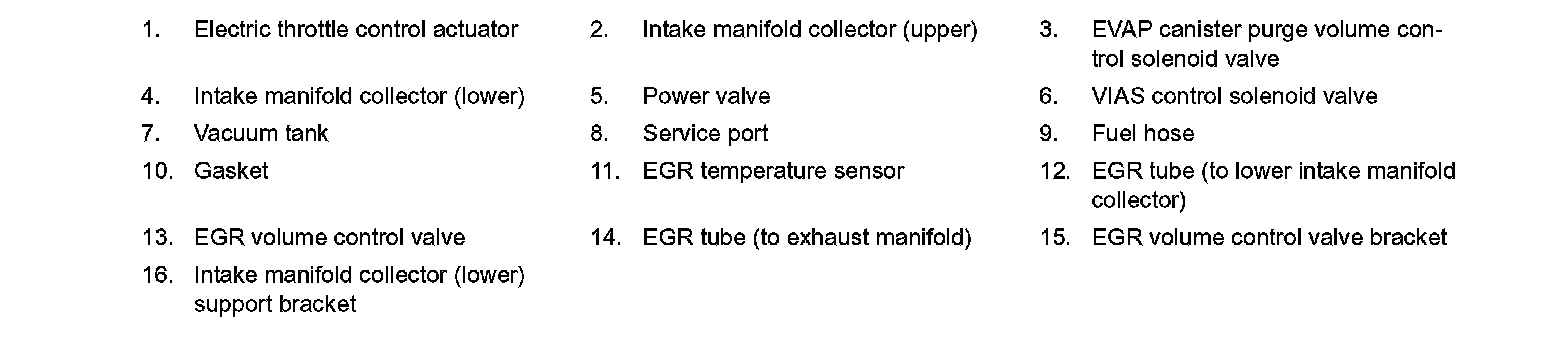

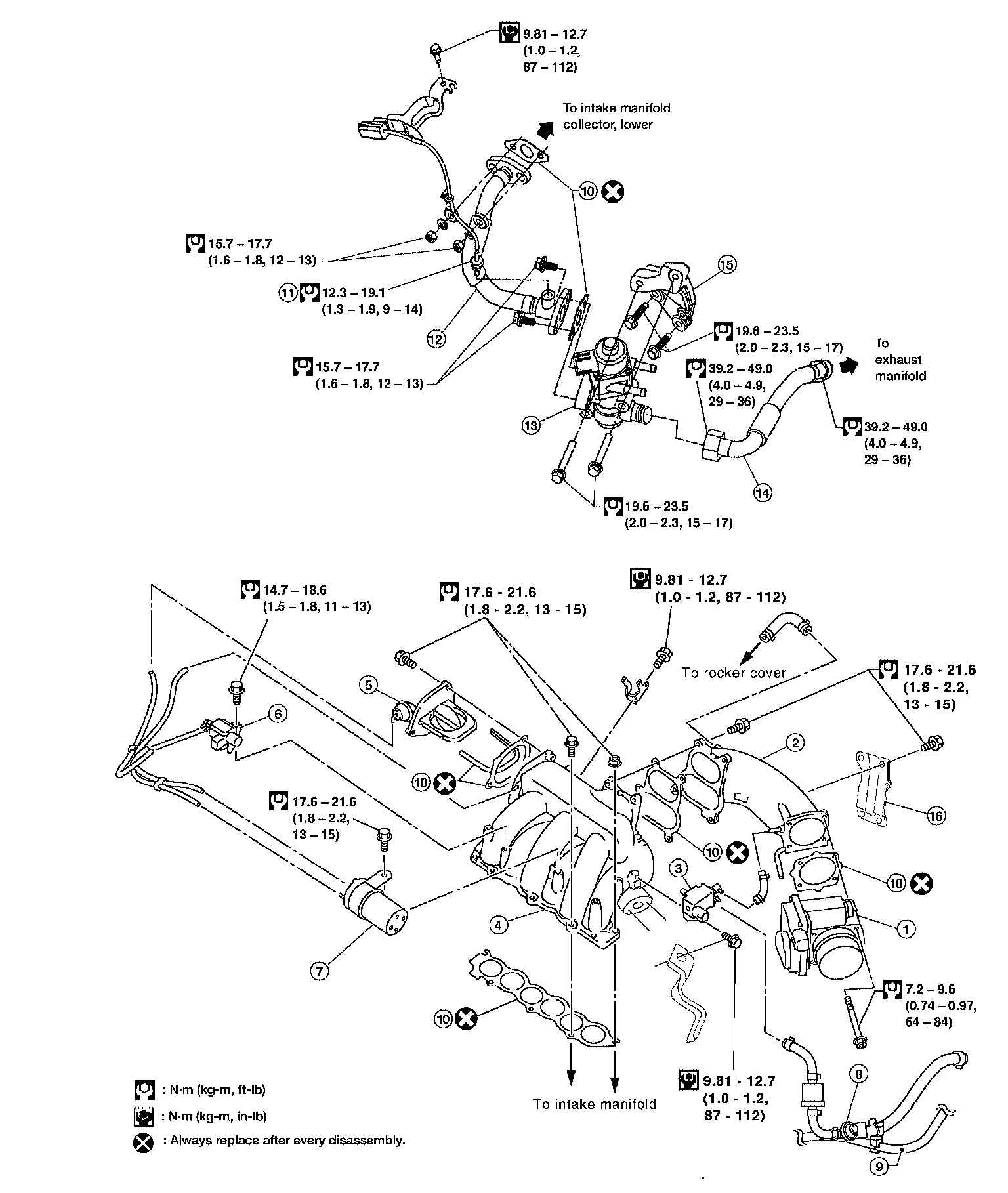

INTAKE MANIFOLD COLLECTOR
Removal and Installation

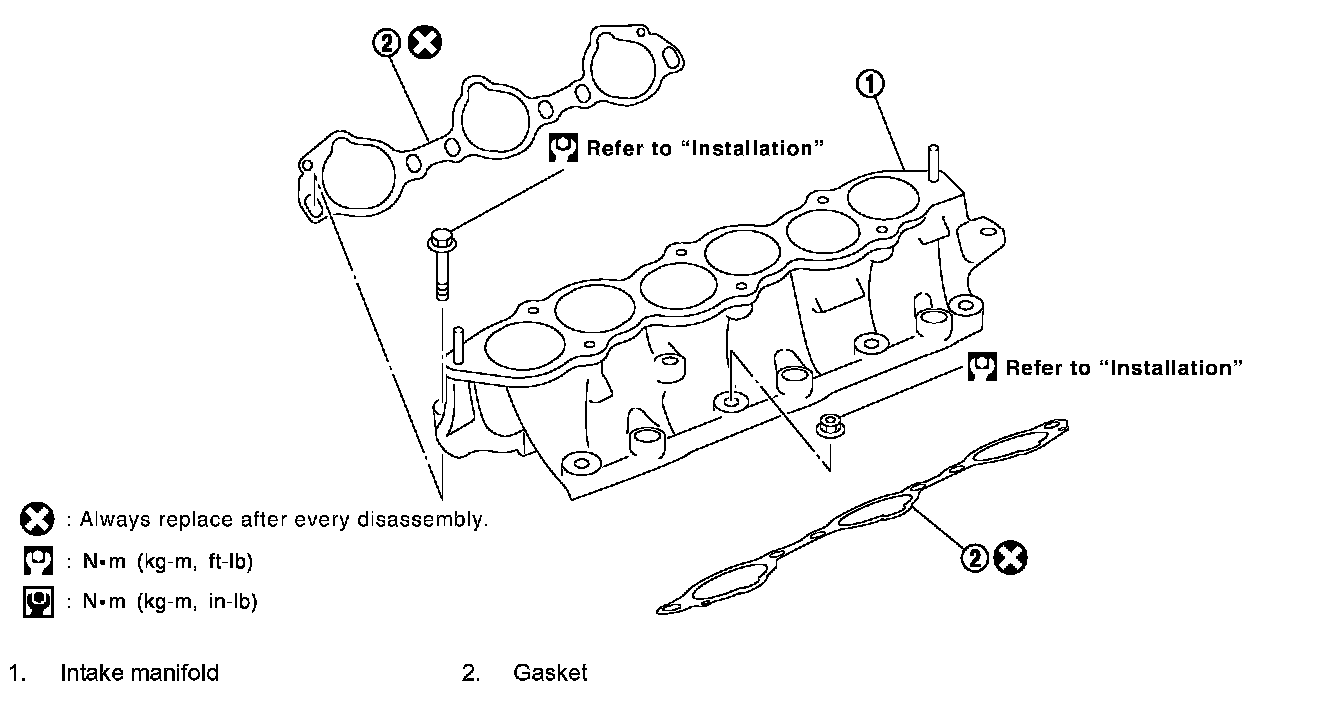

INTAKE MANIFOLD
Removal and Installation
