Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2004
>>
Maxima V6-3.5L (VQ35)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Timing Chain
>>
Front Timing Chain Case

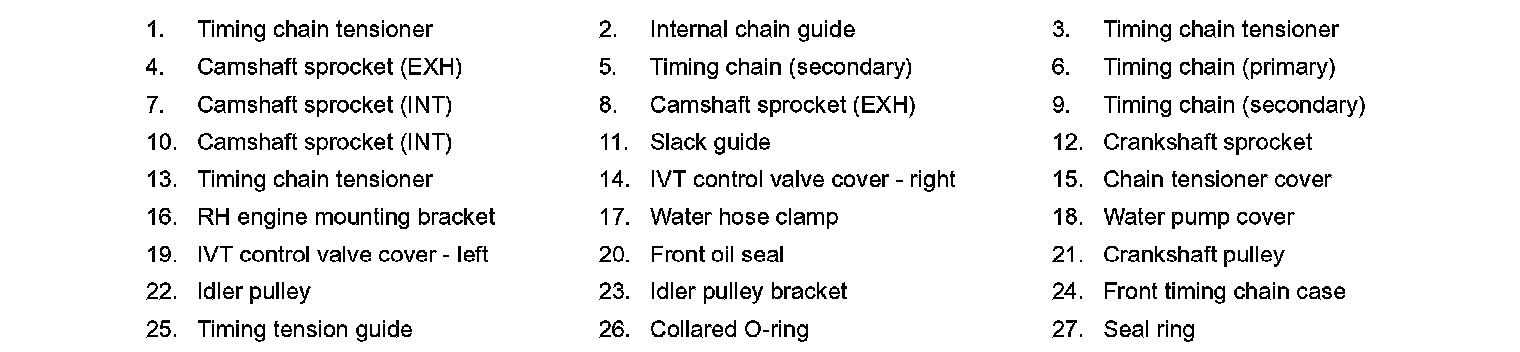

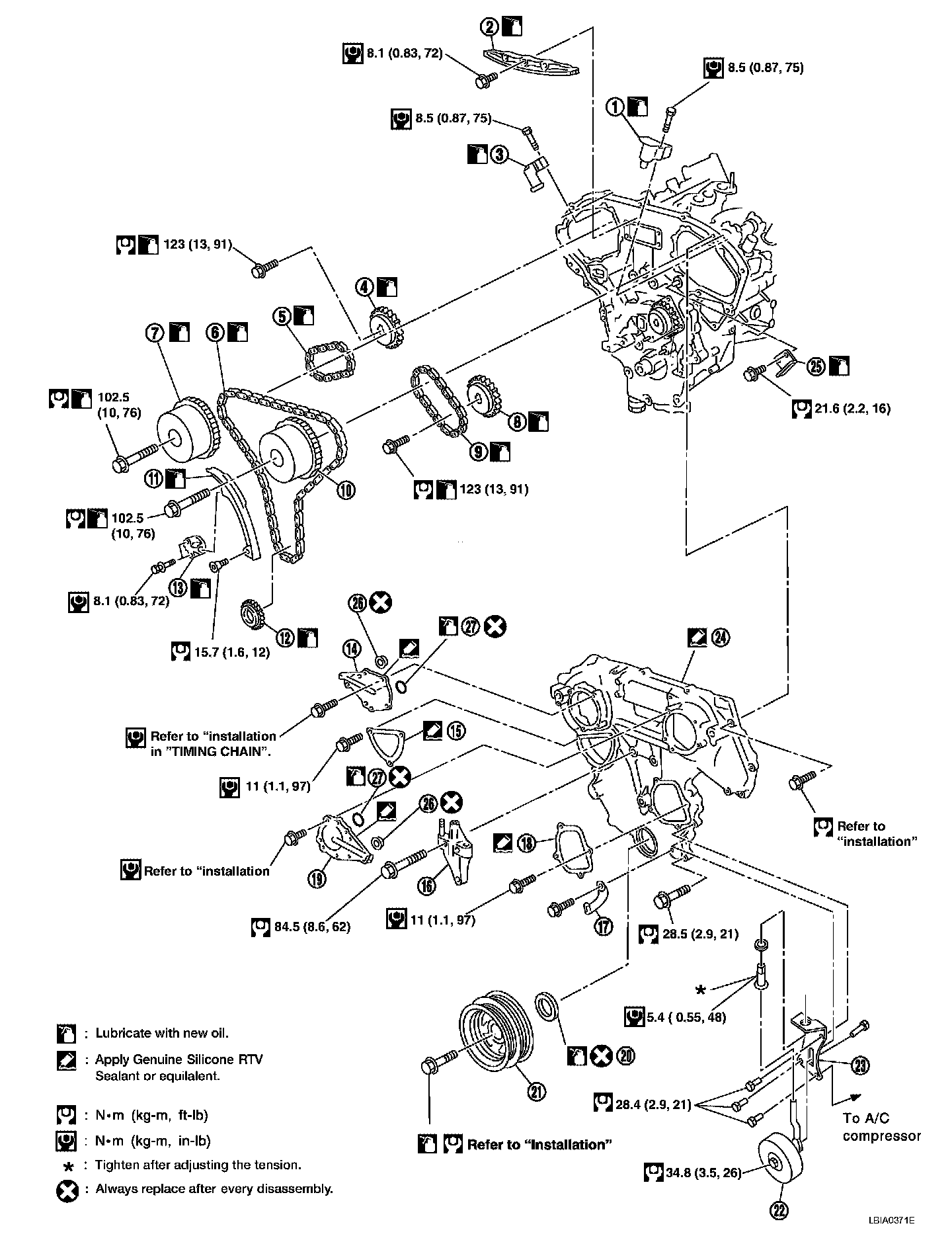

Front Timing Chain Case
FRONT
TIMING CHAIN
CASE
Removal and Installation
