Control Module HVAC: Service and Repair

AUTO AMP

Removal and Installation

REMOVAL
1. Remove shift knob.
2. Remove shift bezel.
3. Remove cluster lid C.
4. Remove cluster lid D.
5. Remove the center stack.

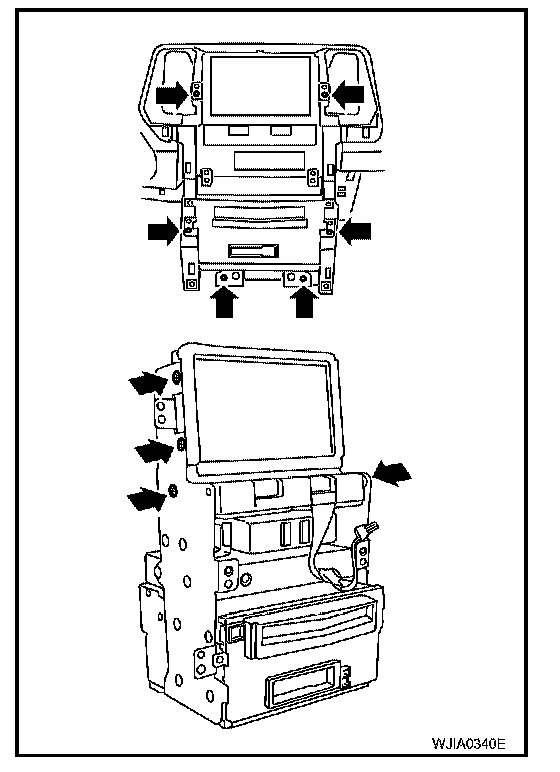

6. Remove fasteners securing rear of unified meter and A/C auto amp.
7. Remove fasteners on either side of display screen.
8. Gently spread top of bracket and remove unified meter and A/C auto amp.

INSTALLATION
Installation is the reverse order of removal.
