Solar Sensor: Service and Repair

SUNLOAD SENSOR

Removal and Installation

REMOVAL

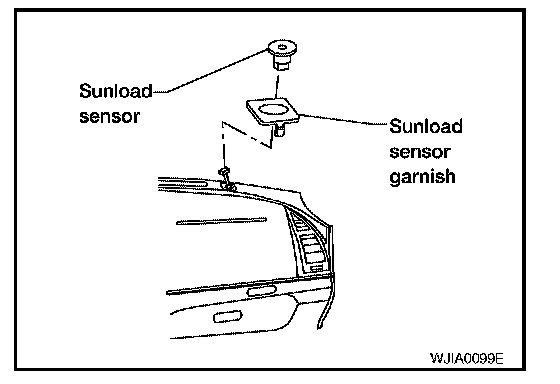

1. Remove the sunload sensor garnish.




2. Disconnect the connector.
3. Release the sunload sensor tabs and then remove it from the garnish.

INSTALLATION
Installation is the reverse order of removal.
