Engine Controls - MIL ON/Multiple DTC's Set: Overview

Classification:
EC04-001

Reference:
NTB04-025

Date:
February 19, 2004

2004 MAXIMA AND QUEST (4AT & 6MT MODELS ONLY); MIL ON P0171/P0174/P12731 P1283

APPLIED VEHICLE:
2004 Maxima (A34) with 4-speed A/T and 6-speed M/T
2004 Quest (V42) with 4-speed A/T

NOTE:
This bulletin does NOT apply to vehicles with 5-speed A/T. See NTB04-027.

IF YOU CONFIRM:

The following DTC code(s) are stored:

^ DTC P0171/P1273

OR

^ DTC P0174/P1283

NOTE:
This bulletin does NOT apply if you have P0171 and P0174 together or you have P1273 and P1283 together.

ACTIONS:

1. Make sure the engine does not have any intake or exhaust leaks.

2. Replace the Air/Fuel Sensor (if no intake or exhaust leaks are found).

^ Codes P0171 and/or P1273; replace Bank 1 sensor.

^ Code P0174 and/or P1283; replace Bank 2 sensor.

3. If needed, reprogram the ECM (see the Service Procedure, step 3).

IMPORTANT:
The purpose of "ACTIONS" (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire Service Procedure as it contains information that is essential to successfully completing this repair.

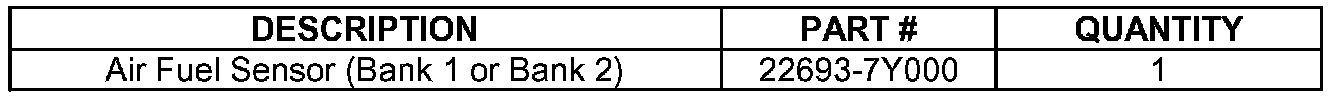

PARTS INFORMATION





CLAIMS INFORMATION
