RE4F04B

Park/Neutral Position (PNP) Switch Adjustment

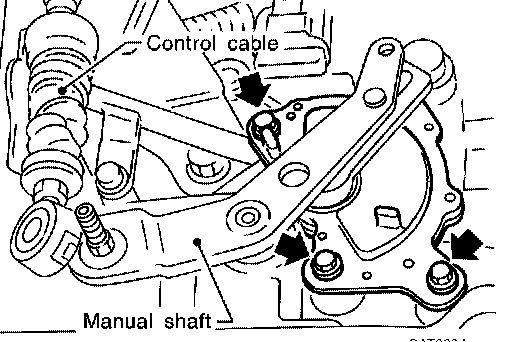

1. Remove control cable from manual shaft.
2. Set manual shaft in N position.
3. Loosen Park/Neutral Position (PNP) switch fixing bolts.

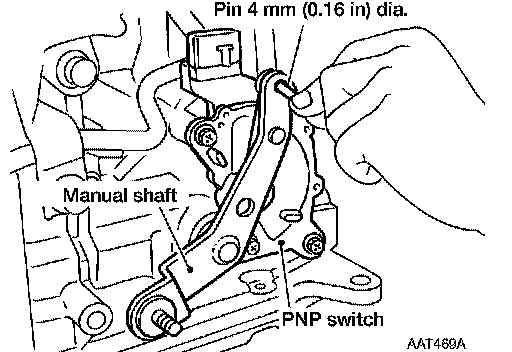

4. Insert pin into adjustment holes in both Park/Neutral Position (PNP) switch and manual shaft as near vertical as possible.
5. Reinstall any part removed.
6. Check continuity of Park/Neutral Position (PNP) switch. Refer to "P0705; Diagnostic Procedure".
