RE5F22A

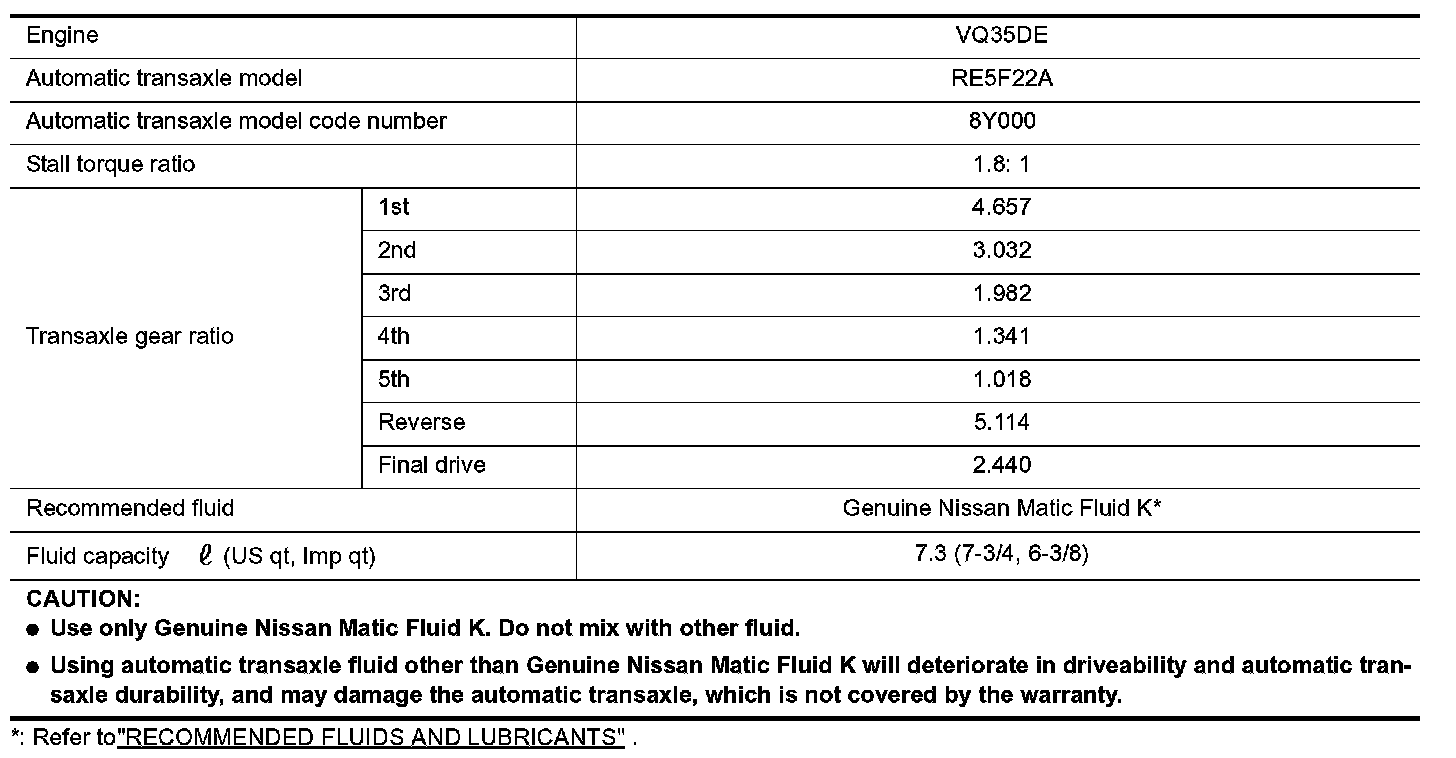

General Specification

Shift Schedule

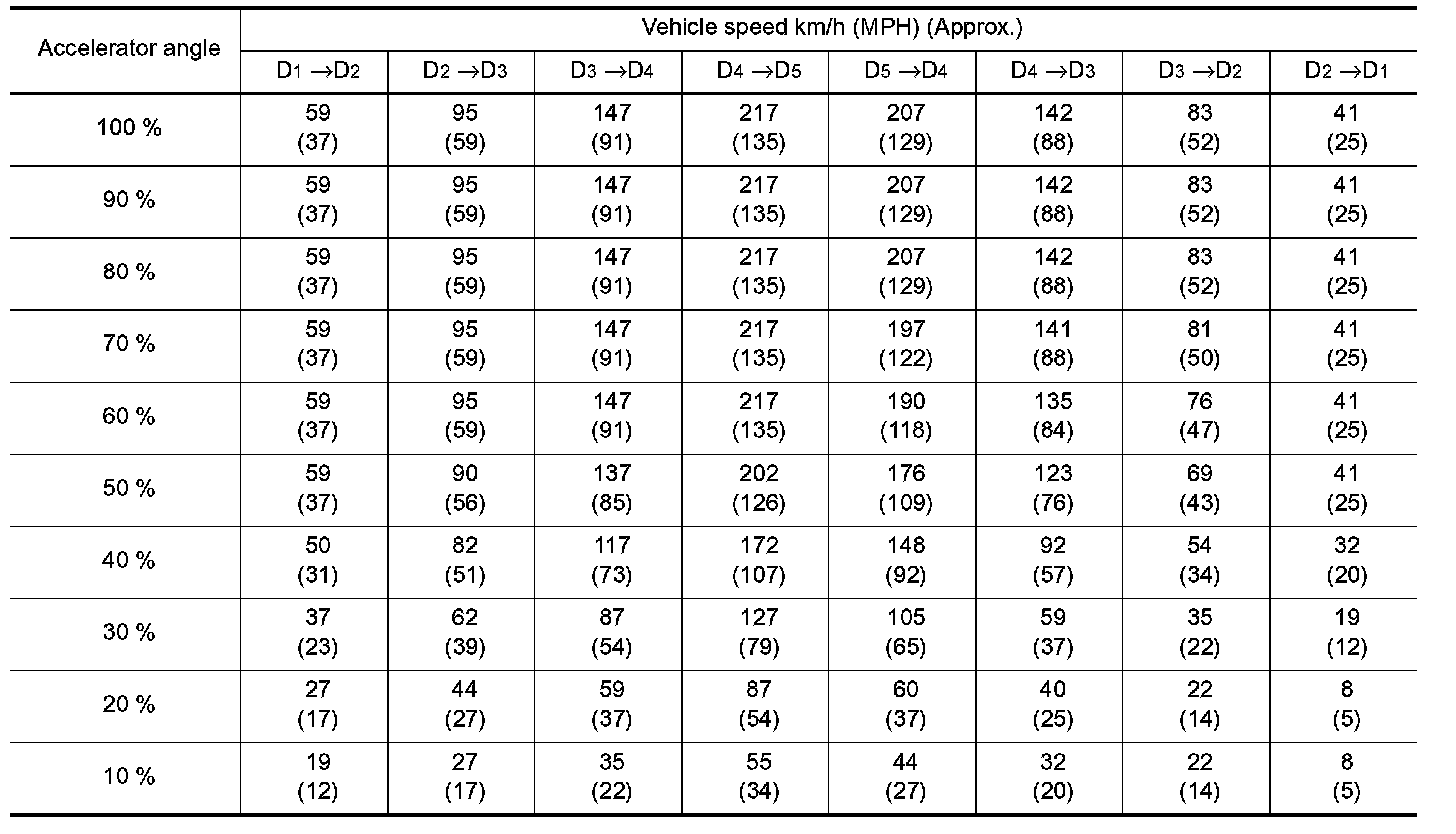

VEHICLE SPEED WHEN SHIFTING GEARS

VEHICLE SPEED WHEN PERFORMING AND RELEASING COMPLETE LOCK-UP





^ Lock-up vehicle speed indicates the speed in D position.
^ Perform lock-up inspection after warming up engine.
^ Lock-up vehicle speed may vary depending on the driving conditions and circumstances.

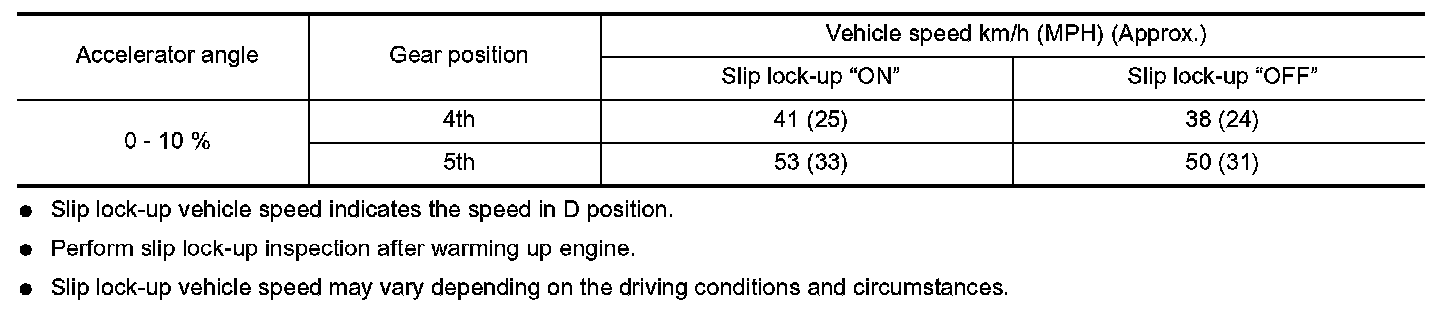

VEHICLE SPEED WHEN PERFORMING AND RELEASING SLIP LOCK-UP





^ Slip lock-up vehicle speed indicates the speed in D position.
^ Perform slip lock-up inspection after warming up engine.
^ Slip lock-up vehicle speed may vary depending on the driving conditions and circumstances.





Stall Speed

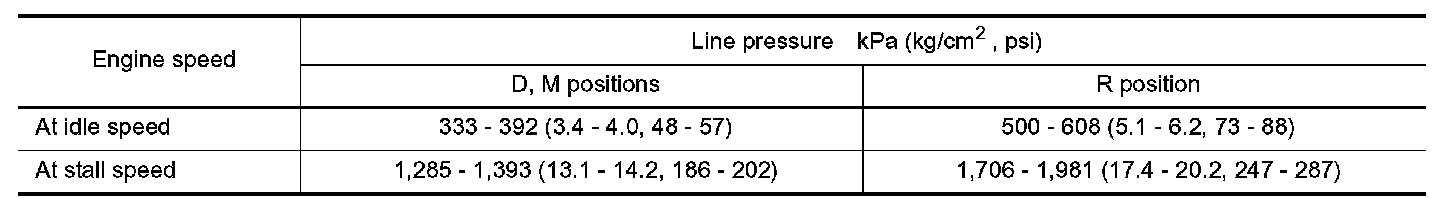

Line Pressure

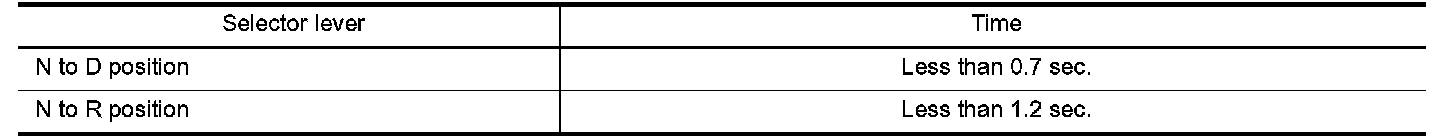

Time Lag

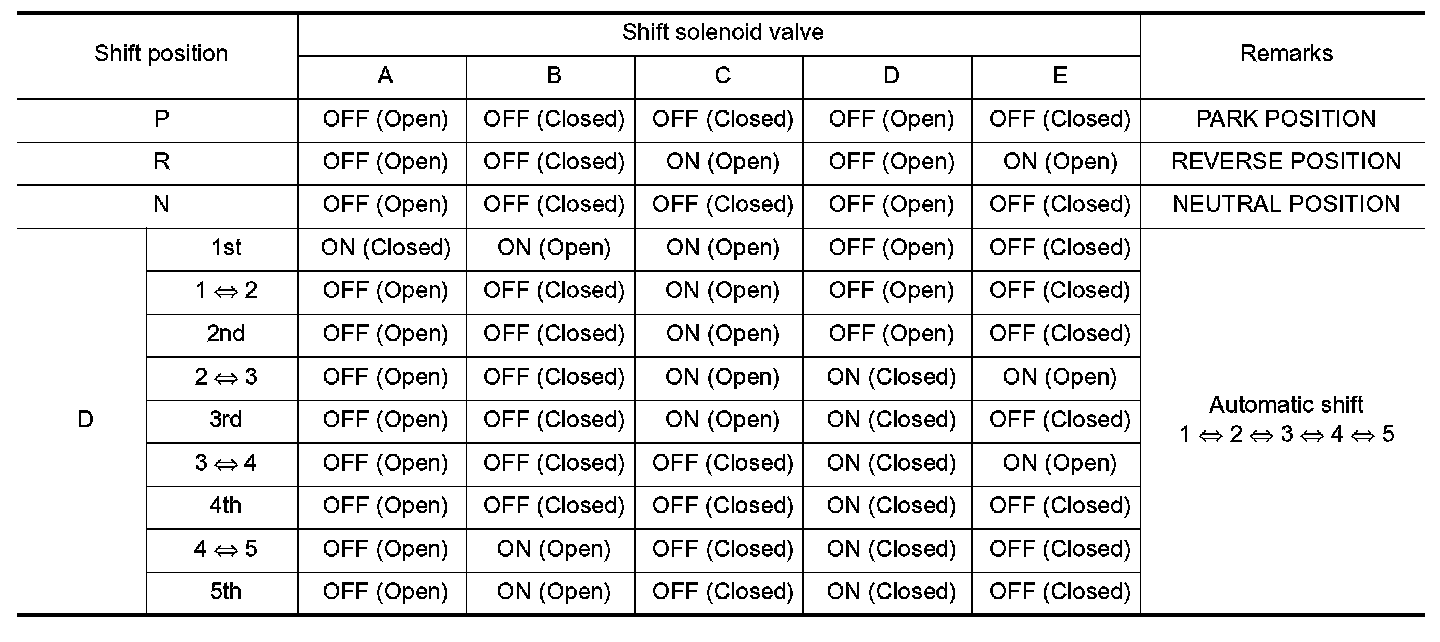

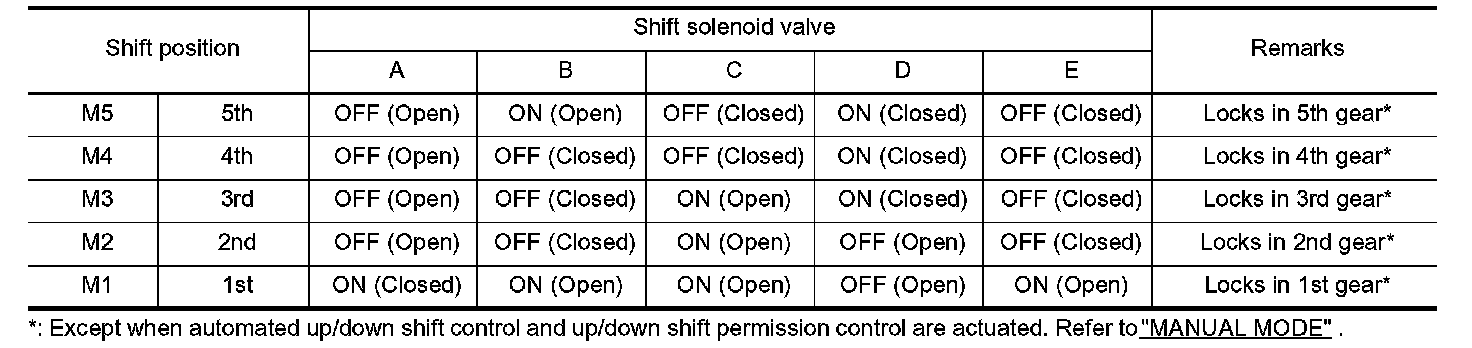

Shift Solenoid Valve

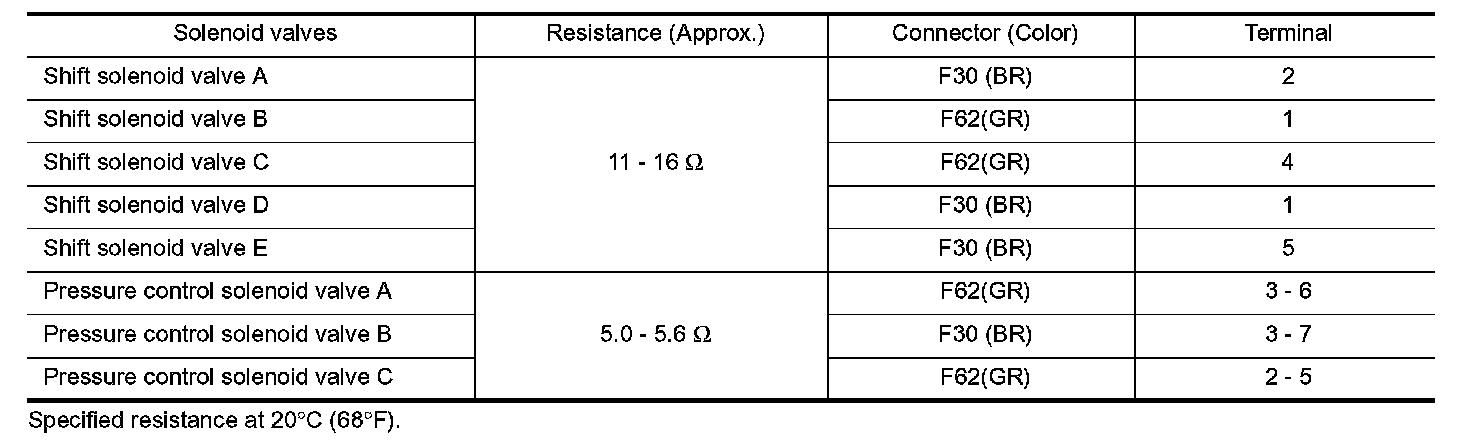

Solenoid Valves

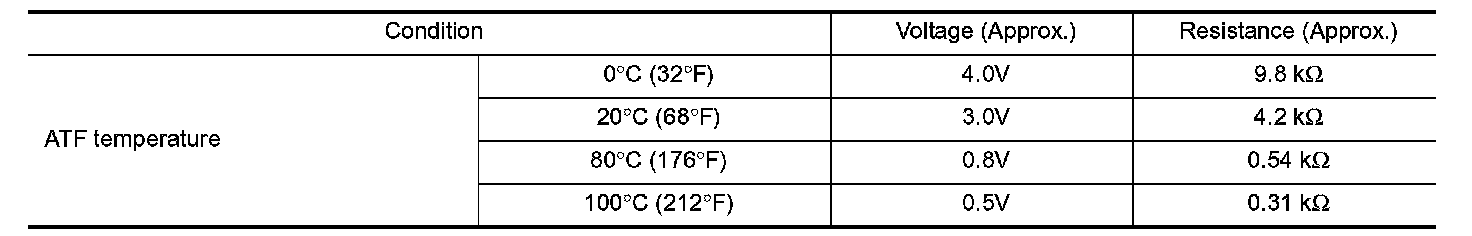

A/T Fluid Temperature Sensor

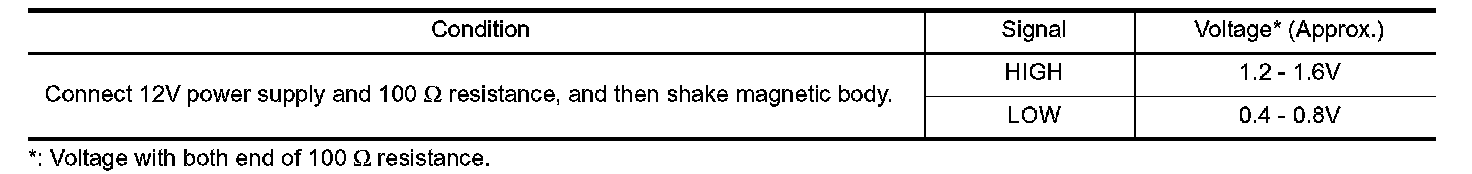

Turbine Revolution Sensor

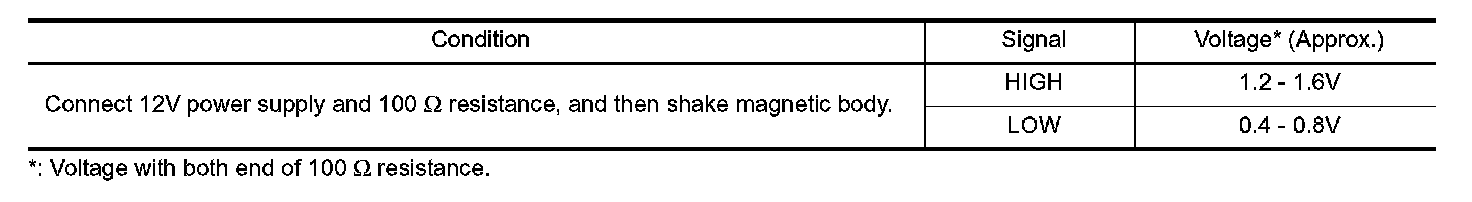

Revolution Sensor
