System Specifications

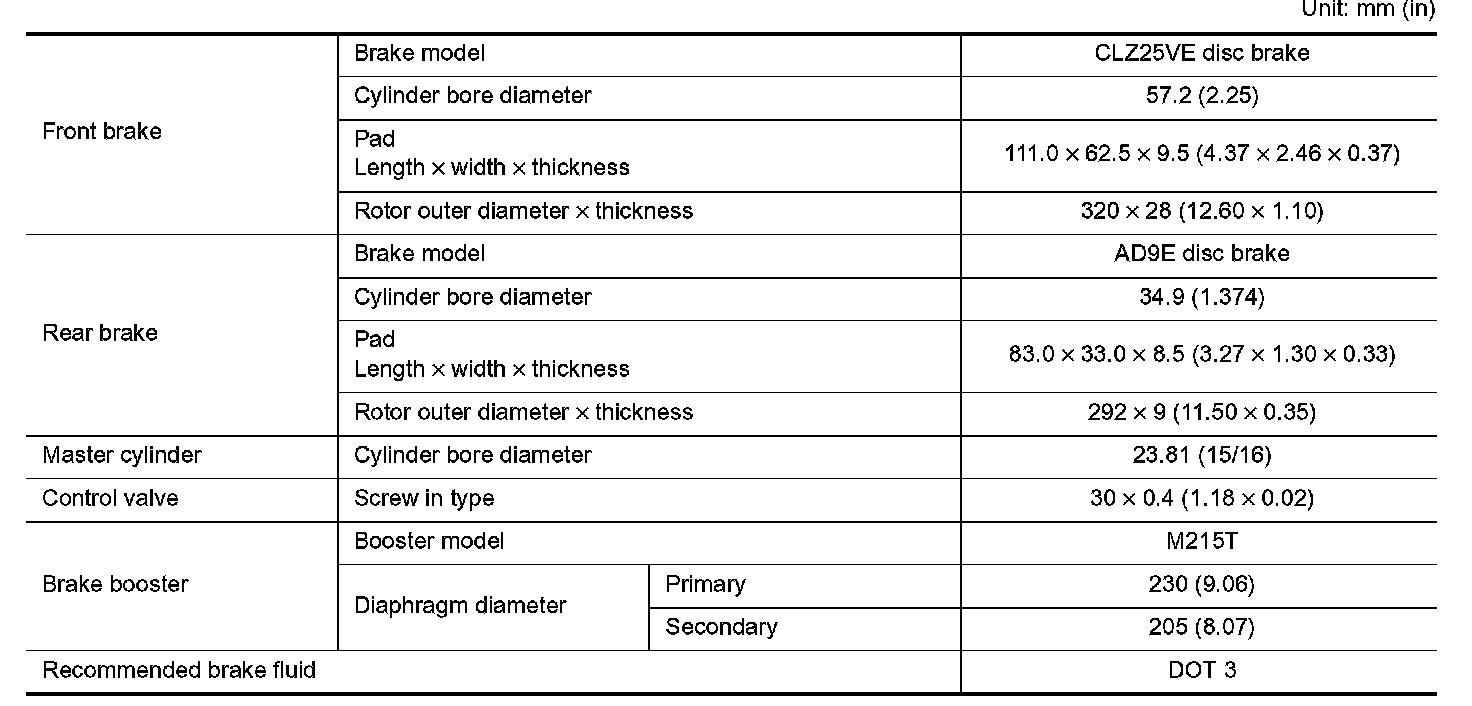

General Specifications

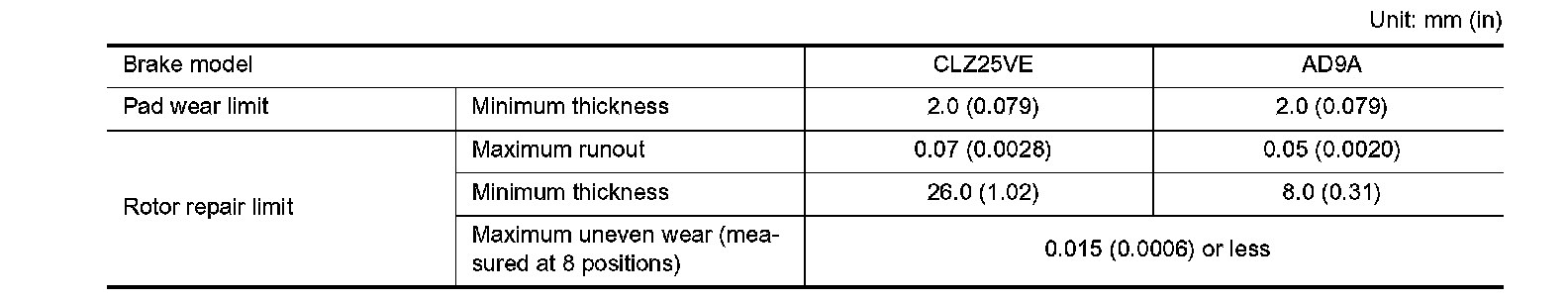

Disc Brake

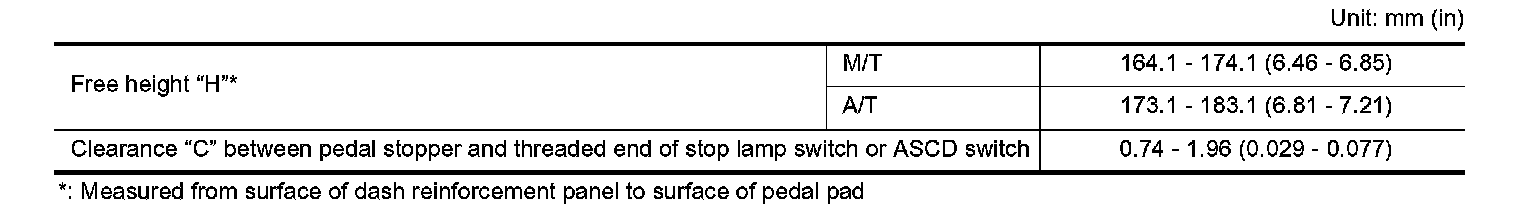

Brake Pedal

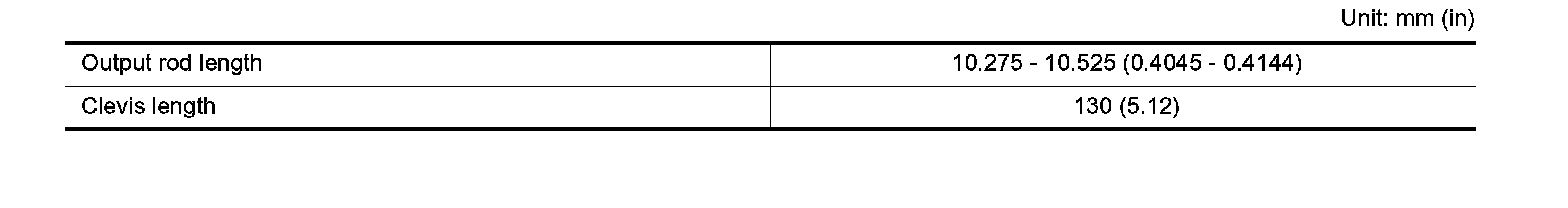

Brake Booster

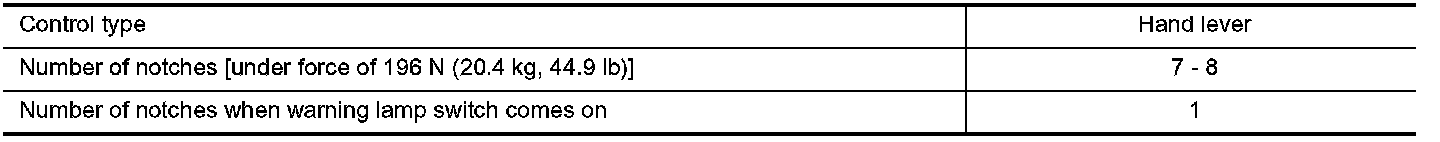

Parking Brake Control





Parking Drum Brake
