Technical Data

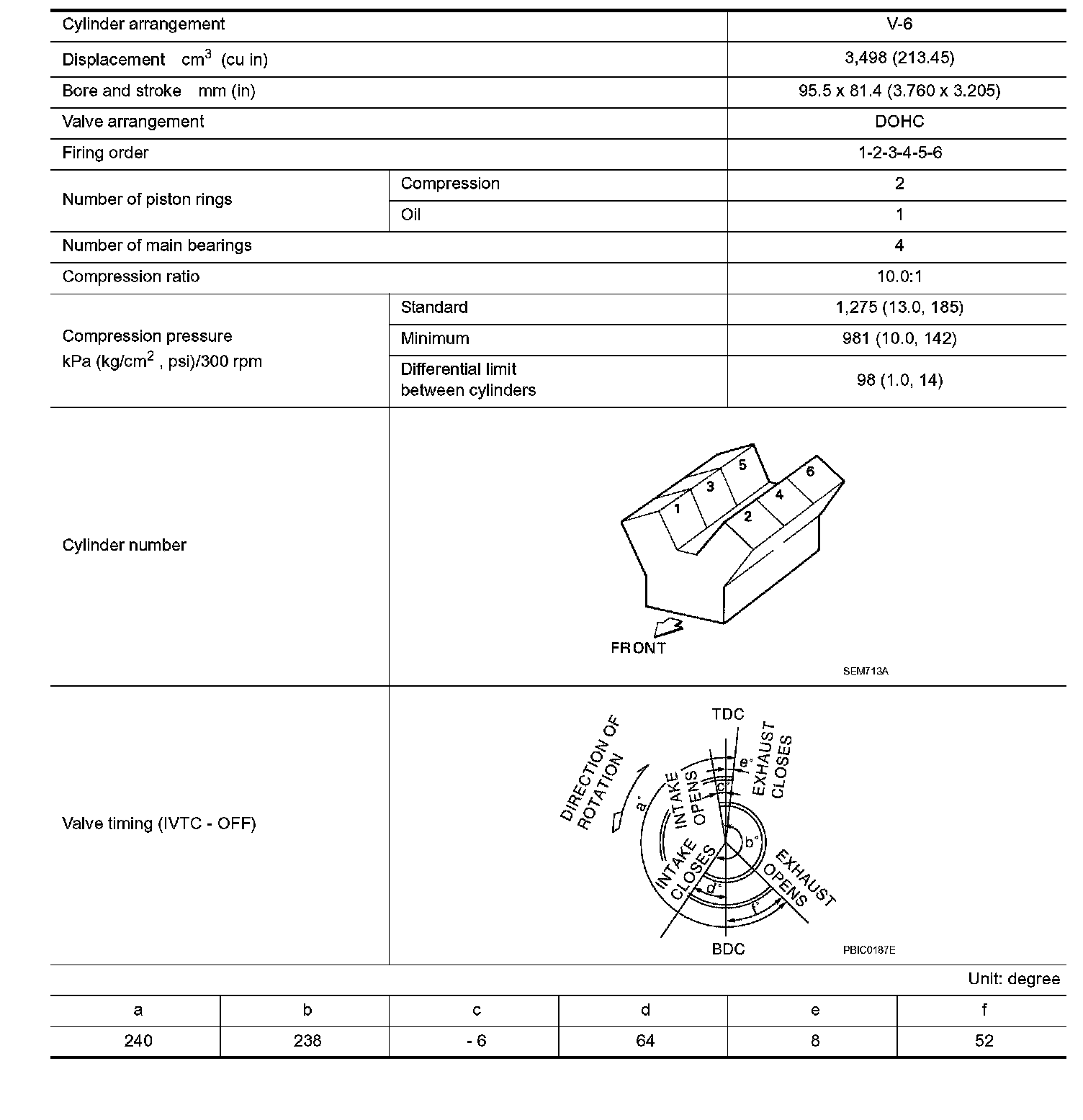

GENERAL SPECIFICATIONS

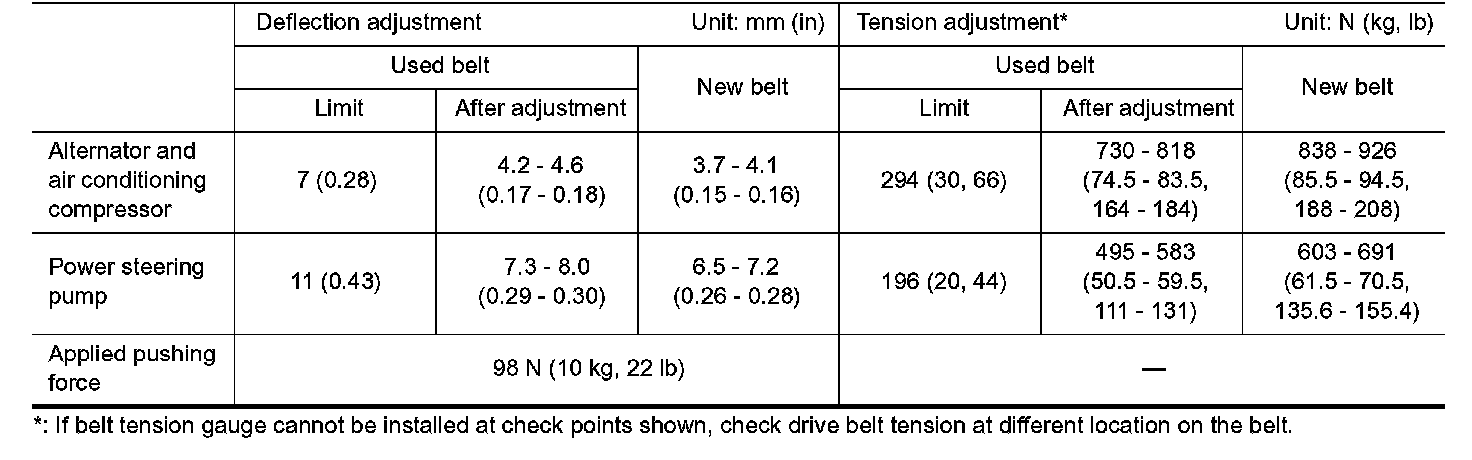

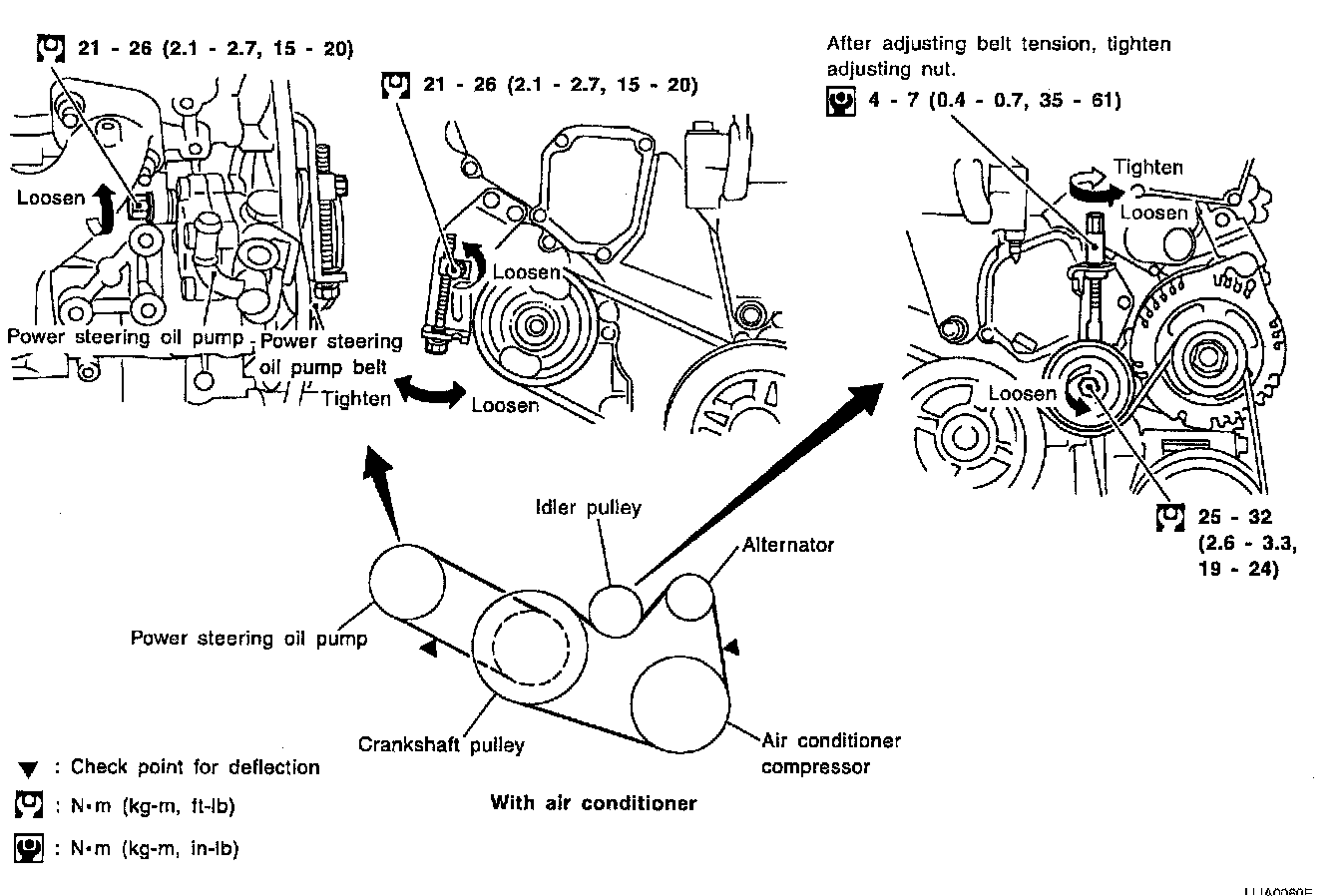

DRIVE BELT

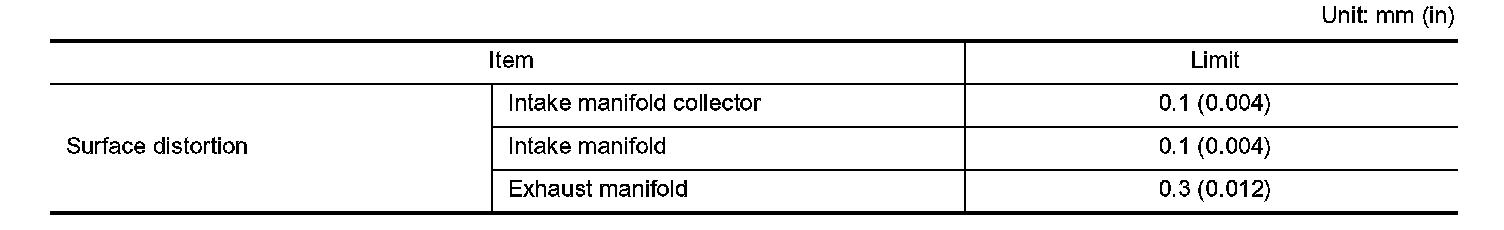

INTAKE MANIFOLD COLLECTOR, INTAKE MANIFOLD AND EXHAUST MANIFOLD

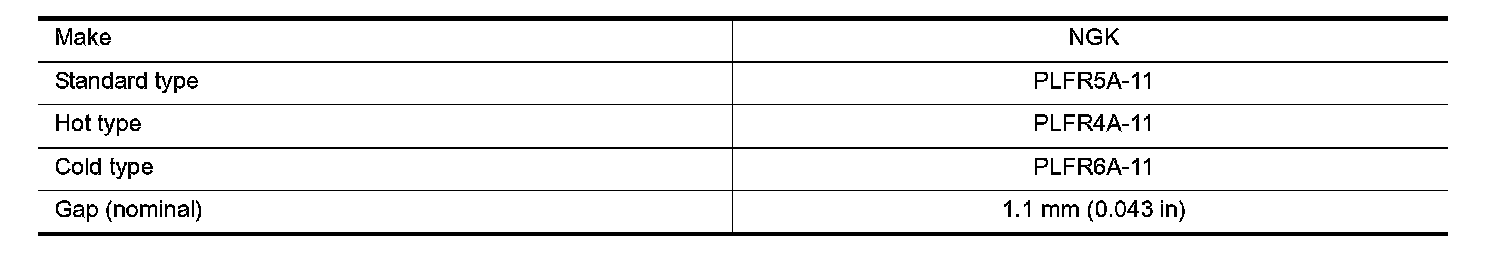

SPARK PLUG

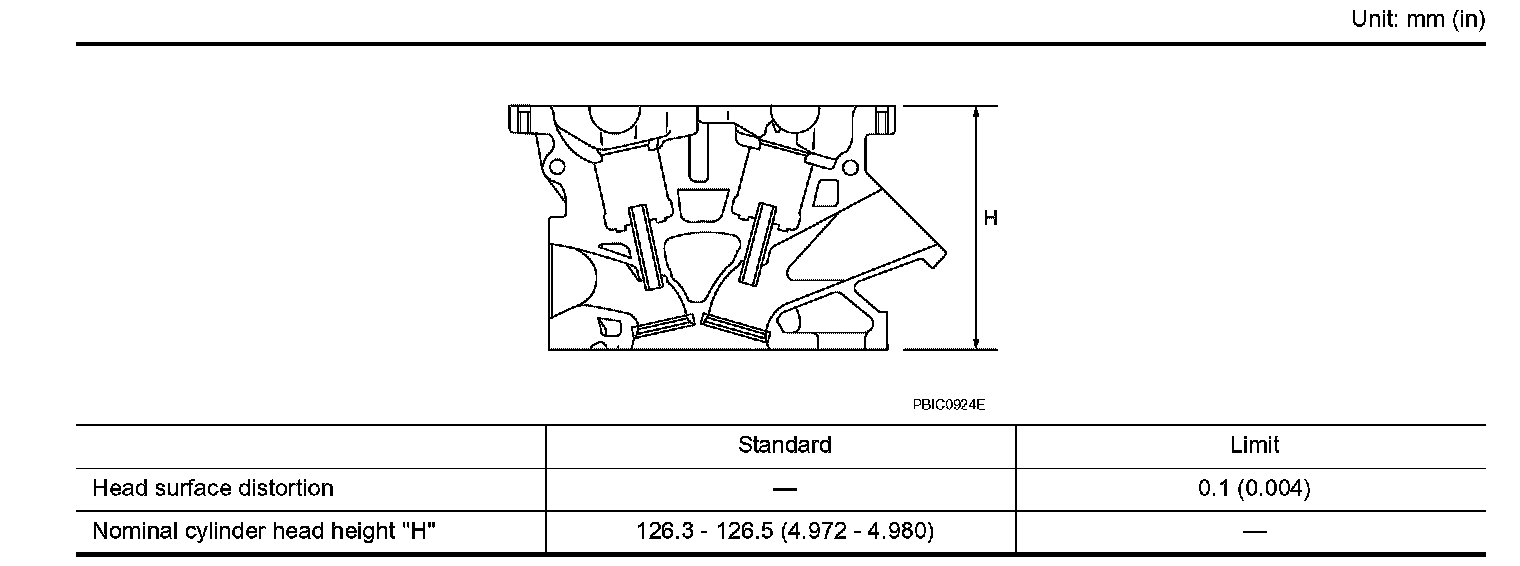

CYLINDER HEAD
VALVE

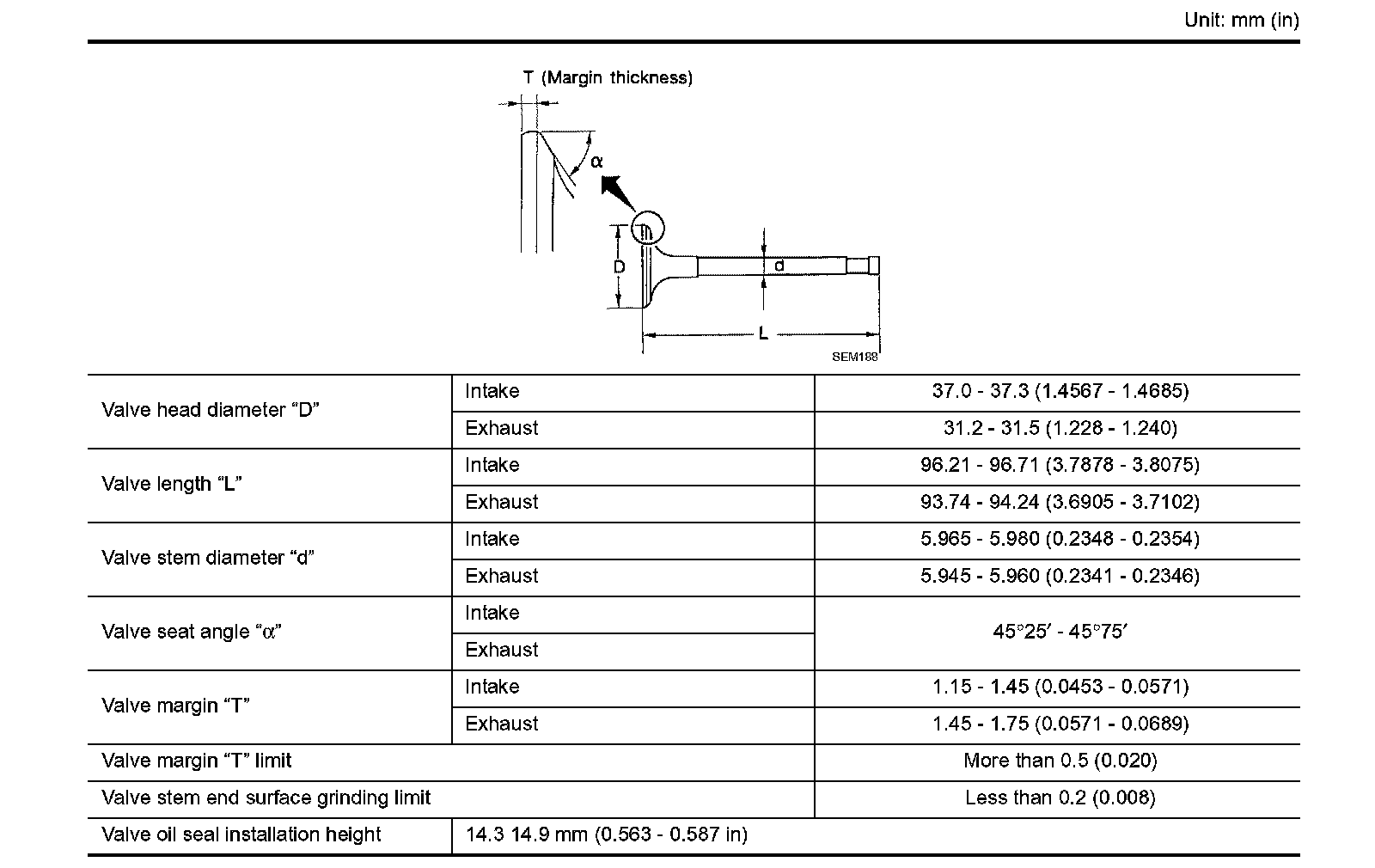

Valve Dimensions

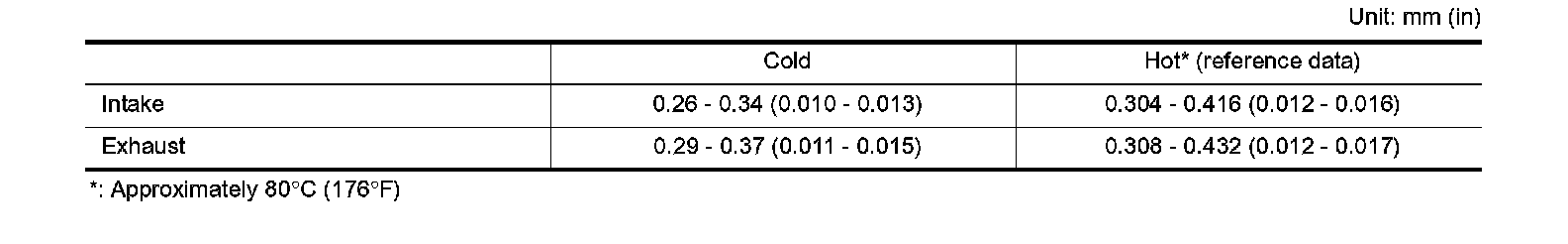

Valve Clearance

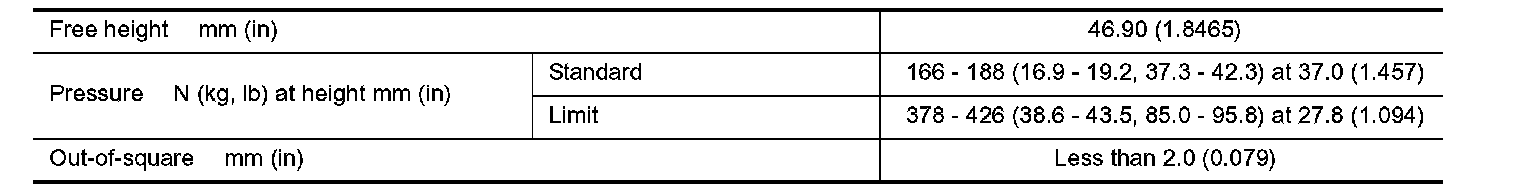

Valve Spring

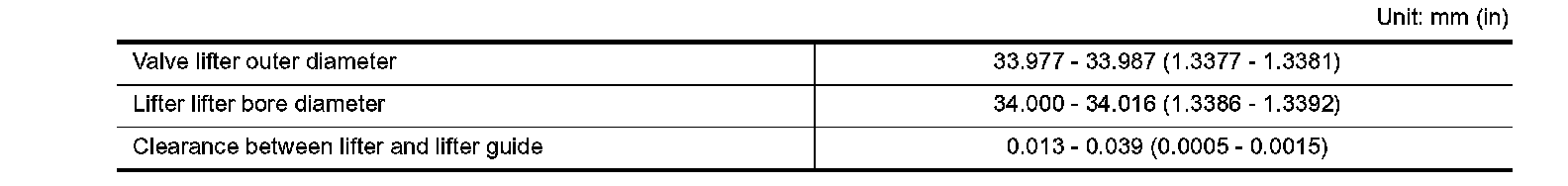

Valve Lifter

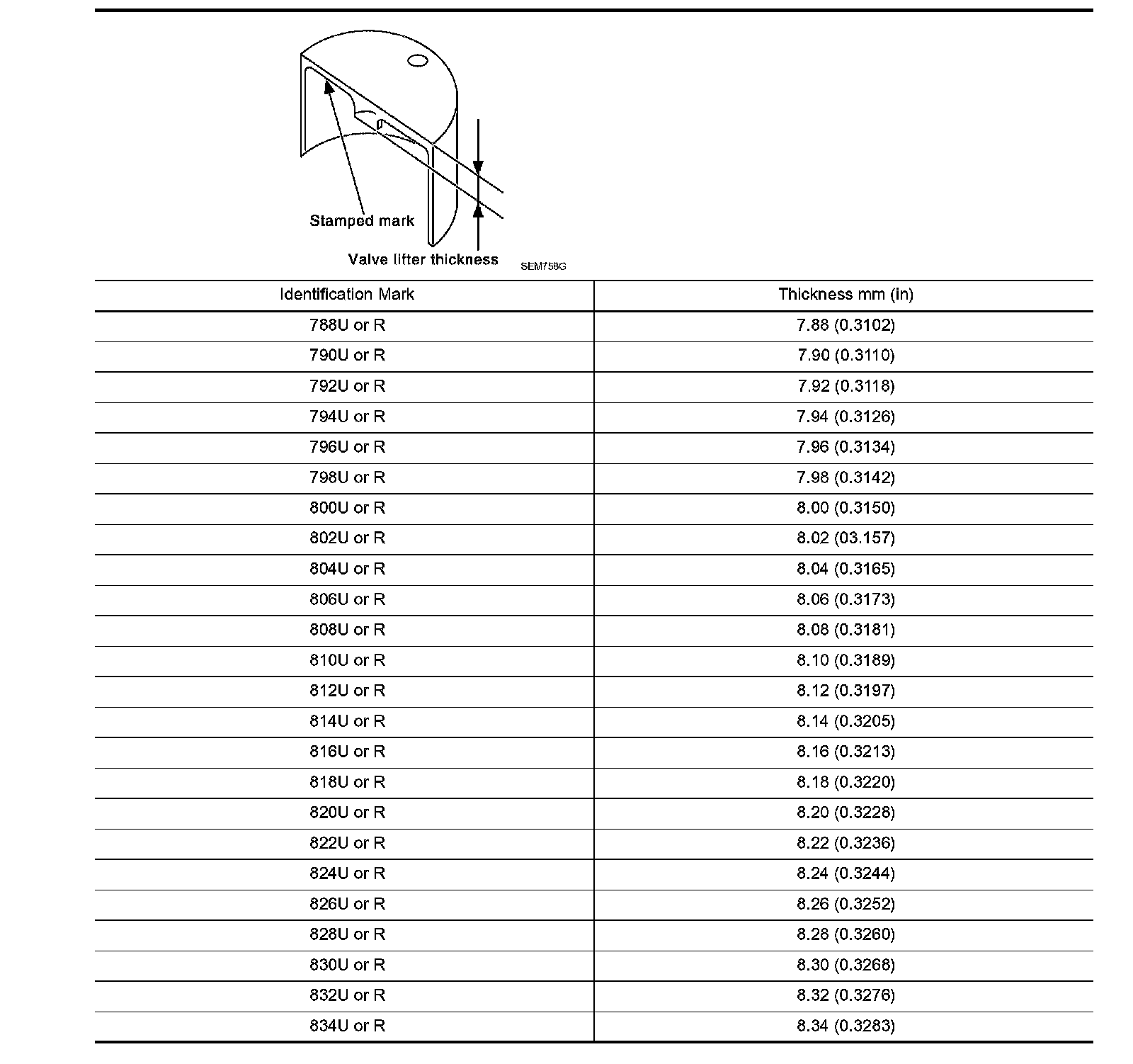

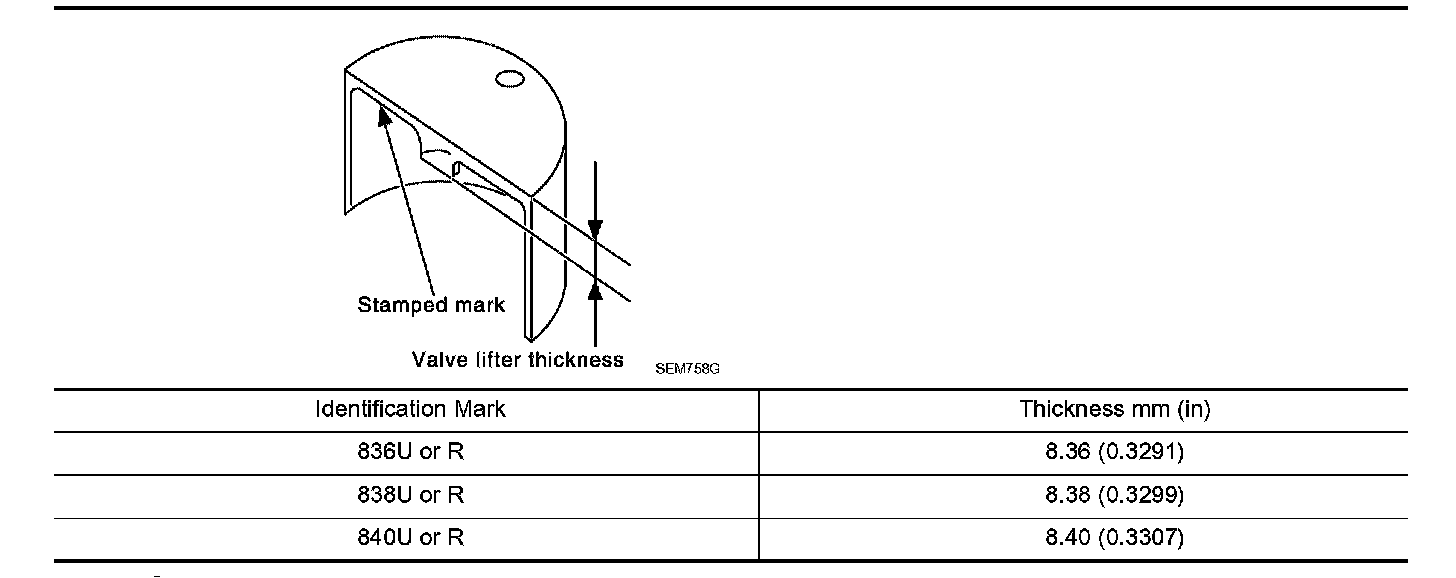

Available Valve Lifter

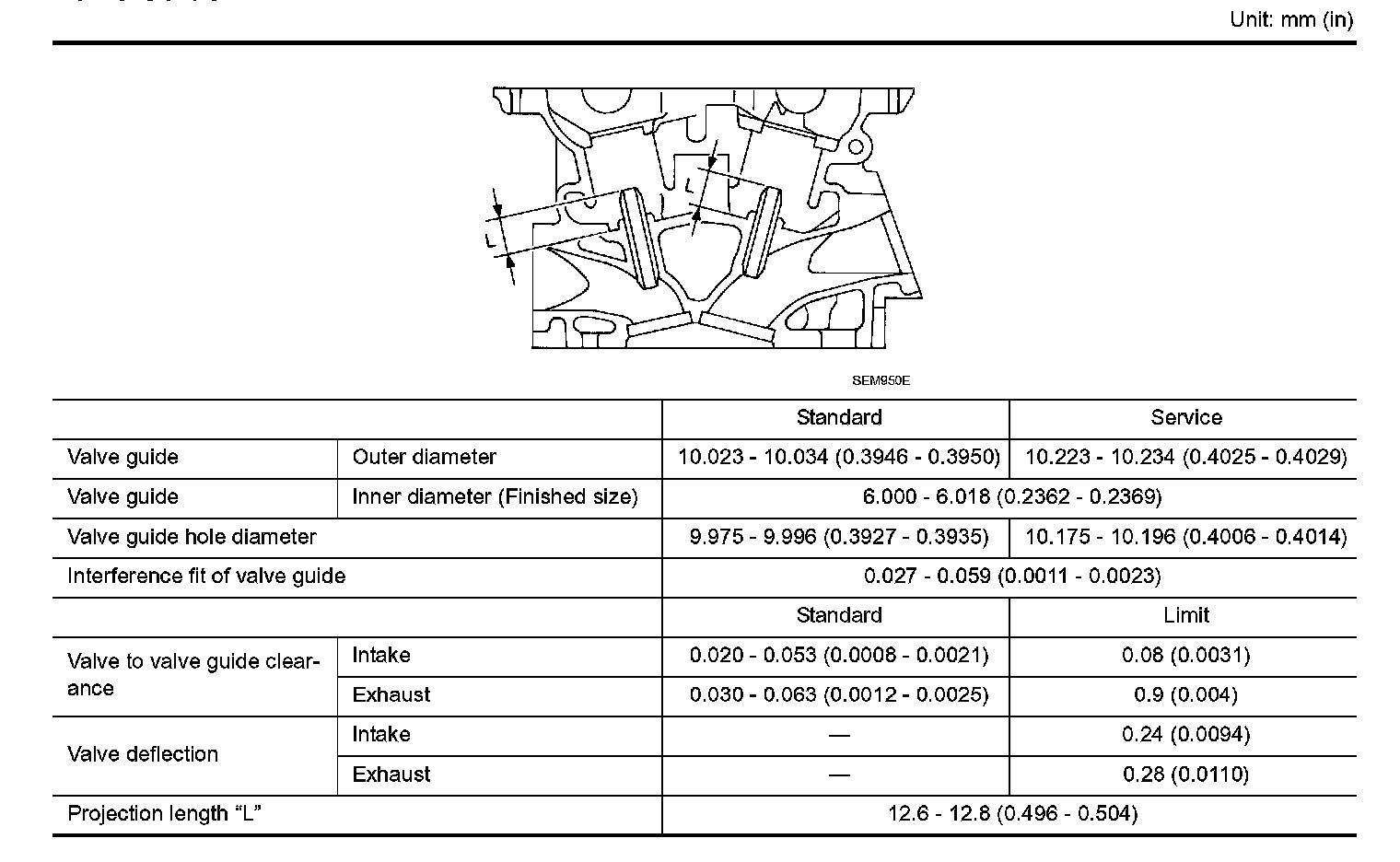

Valve Guide

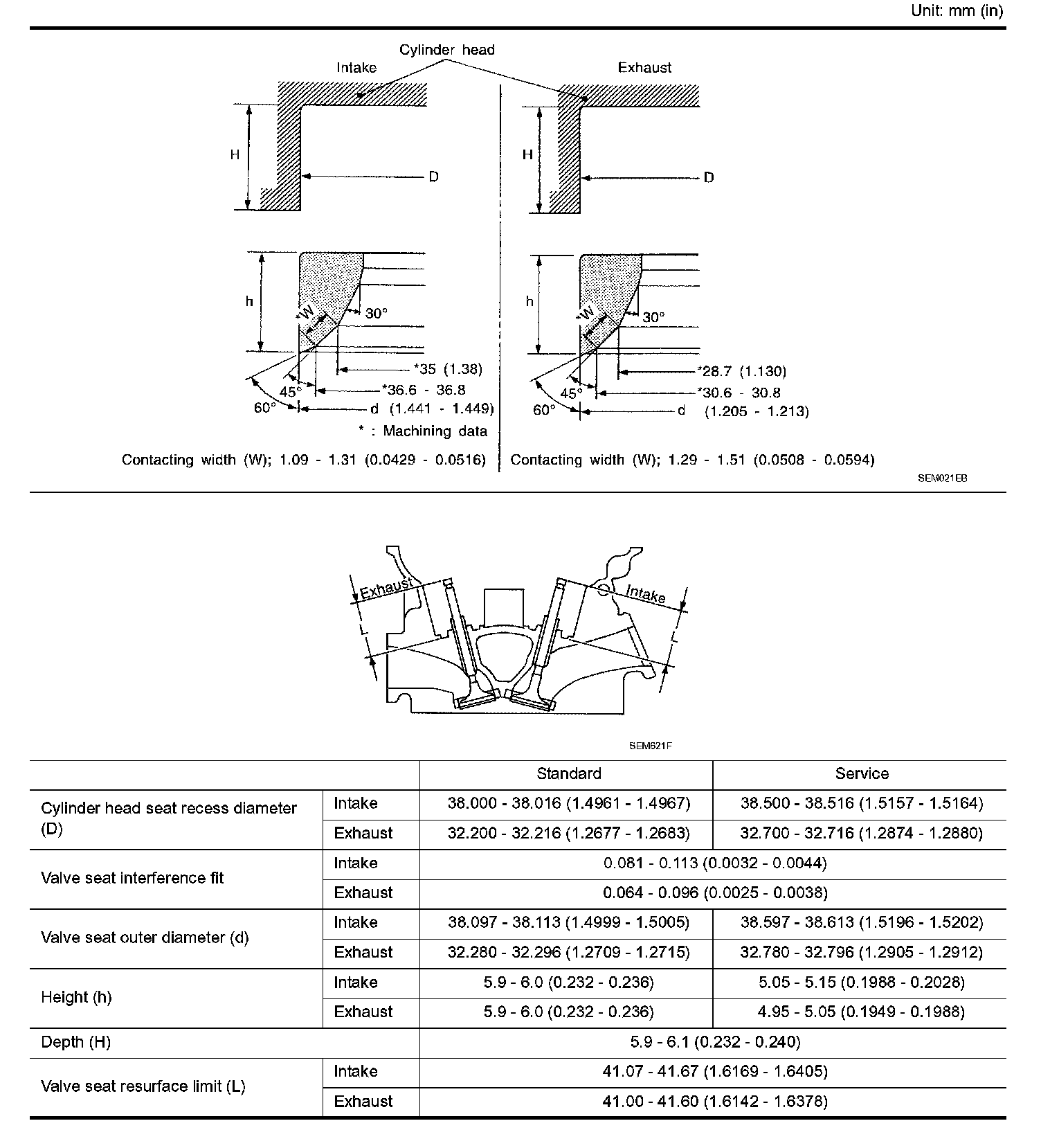

Valve Seat

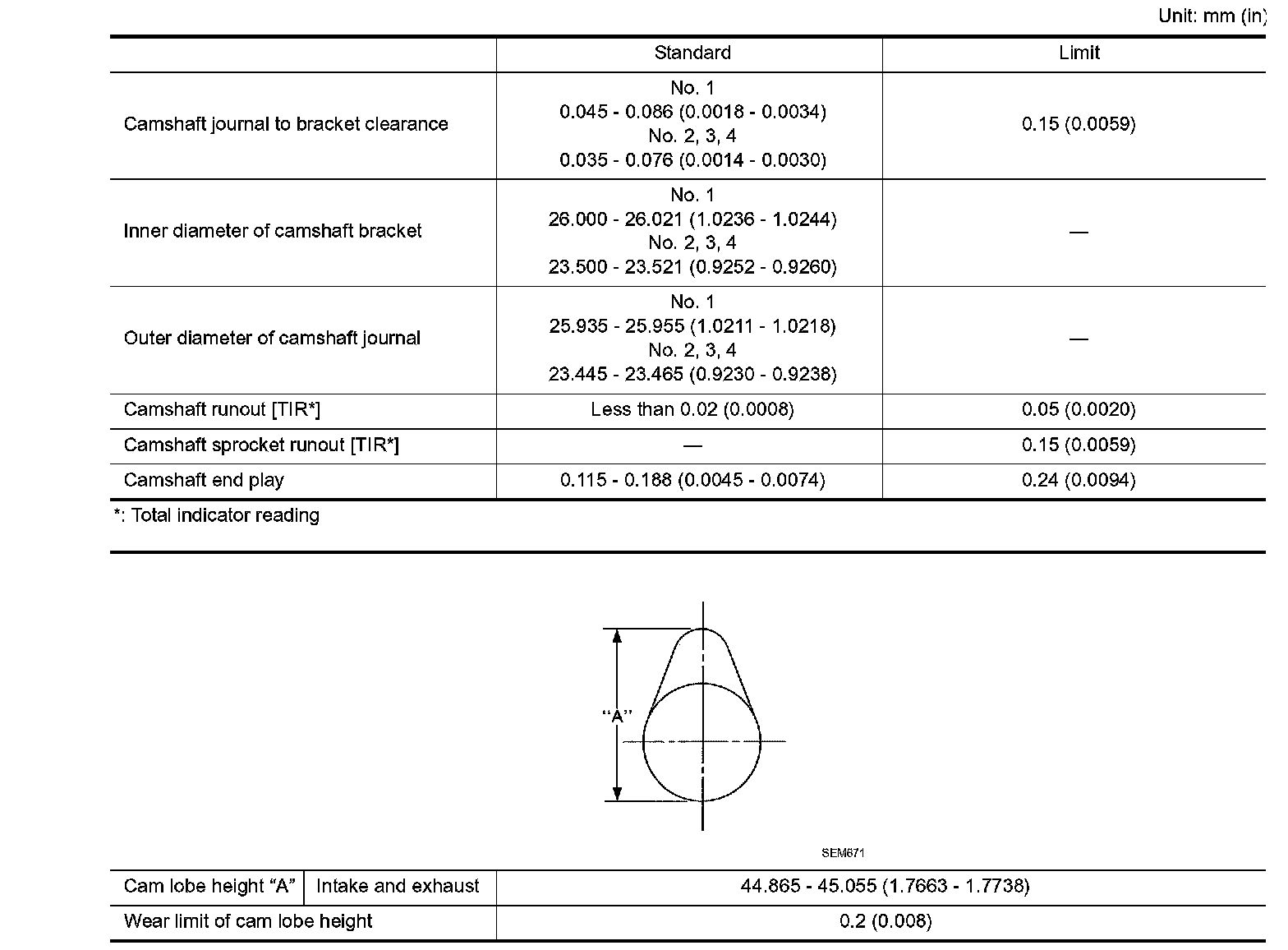

CAMSHAFT AND CAMSHAFT BEARING
CYLINDER BLOCK
PISTON, PISTON RING AND PISTON PIN
Available Piston
Piston Ring

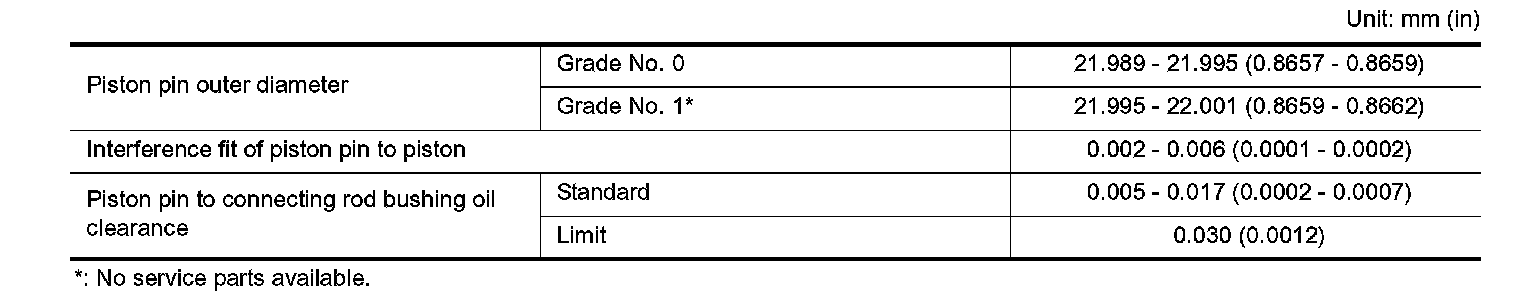

Piston Pin

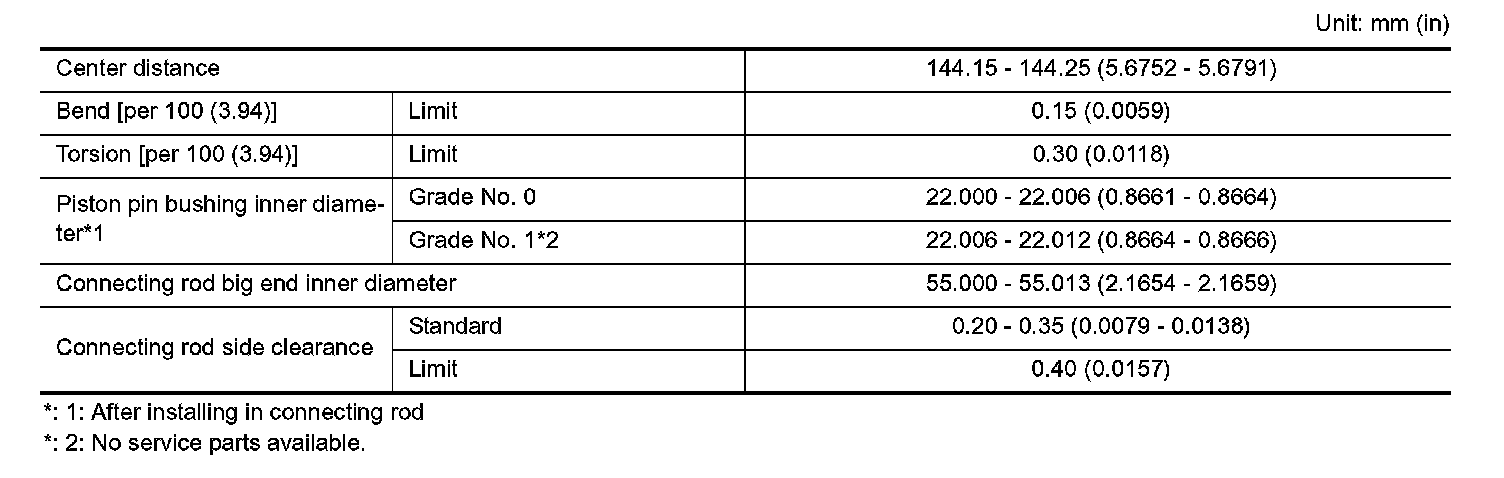

CONNECTING ROD
CRANKSHAFT

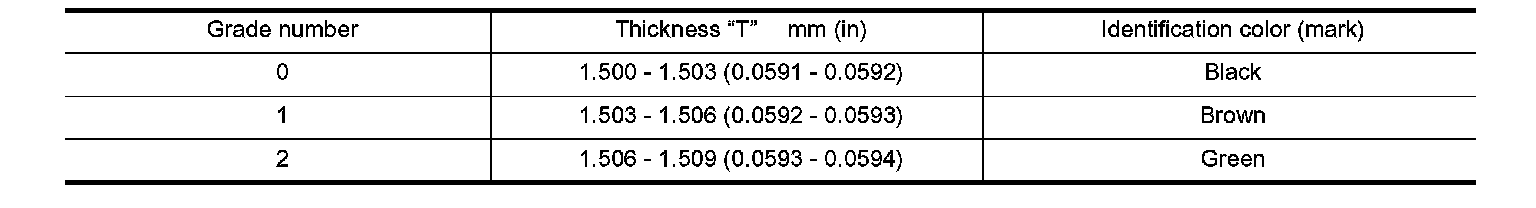

AVAILABLE MAIN BEARING
Undersize
CONNECTING ROD BEARING
Undersize
MISCELLANEOUS COMPONENTS

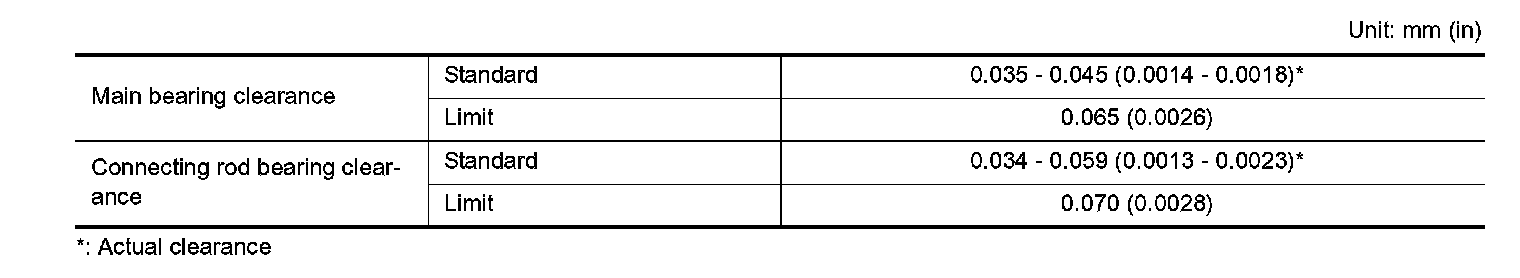

BEARING CLEARANCE
