System Specifications

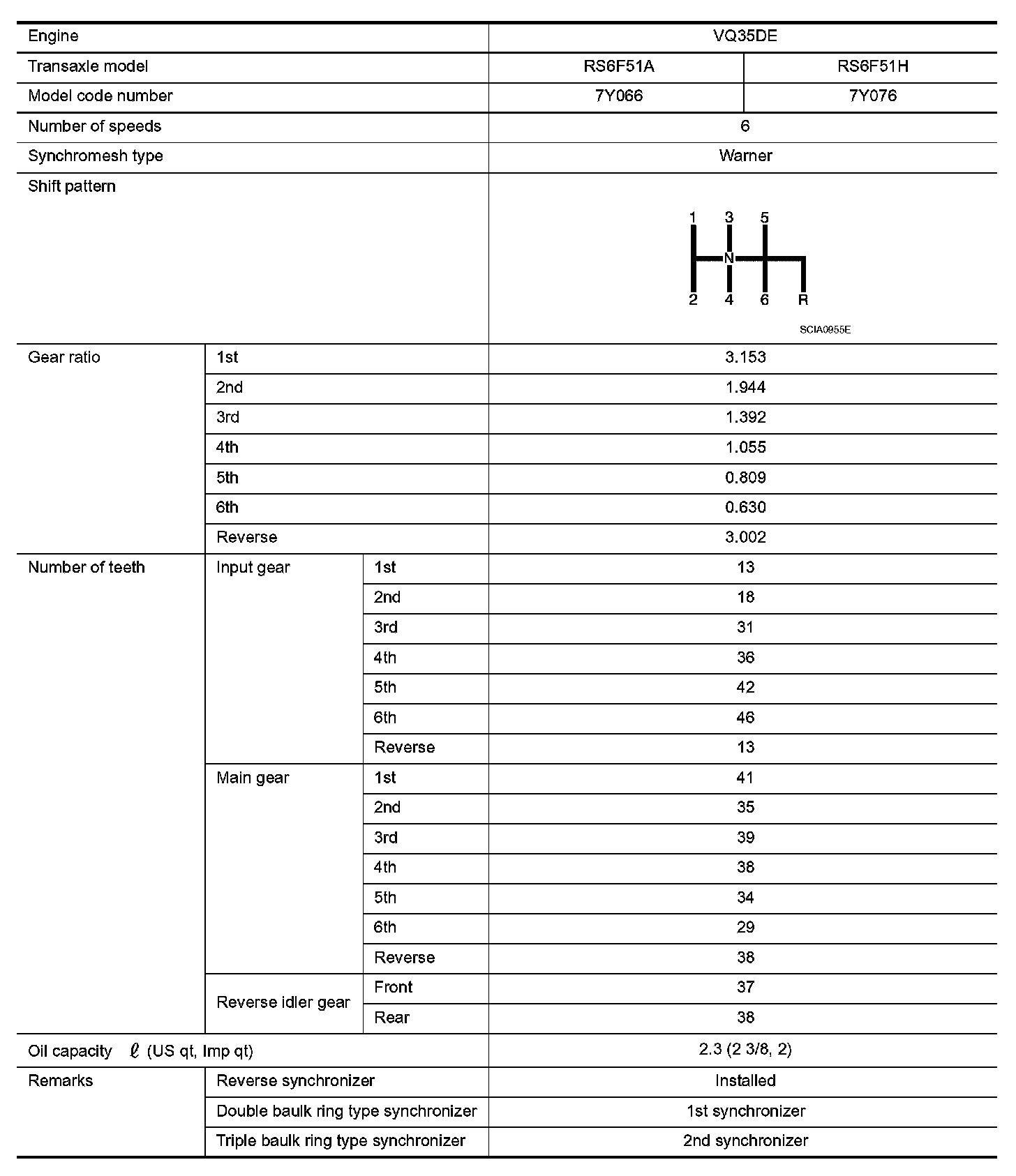

General Specifications

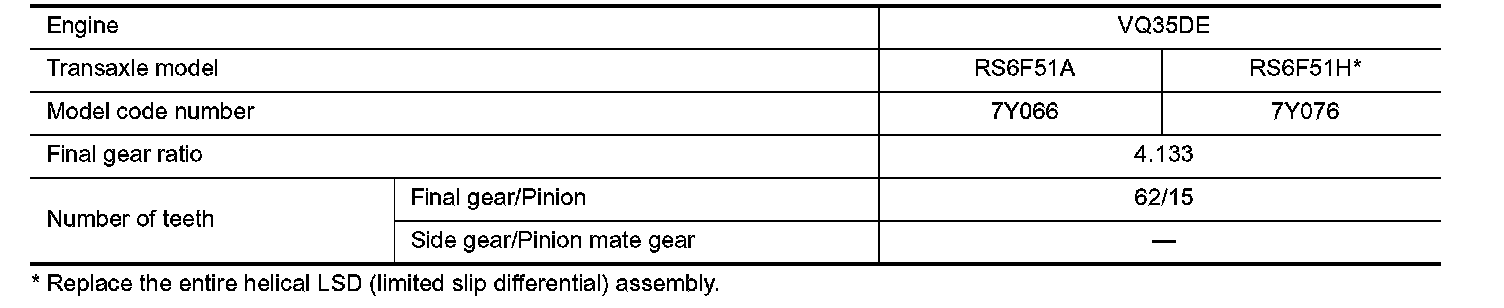

FINAL GEAR

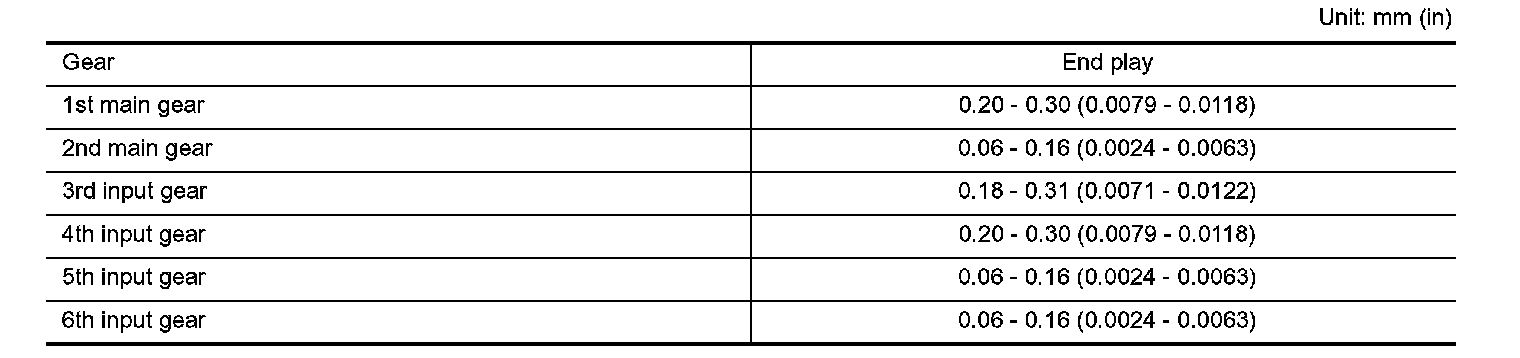

Gear End Play

Clearance Between Baulk Ring and Gear

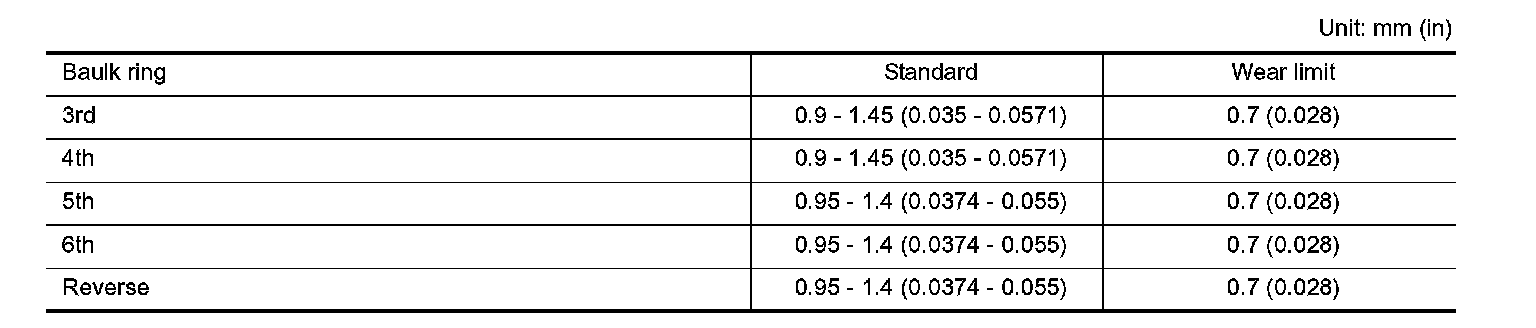

3RD, 4TH, 5TH, 6TH & REVERSE BAULK RING

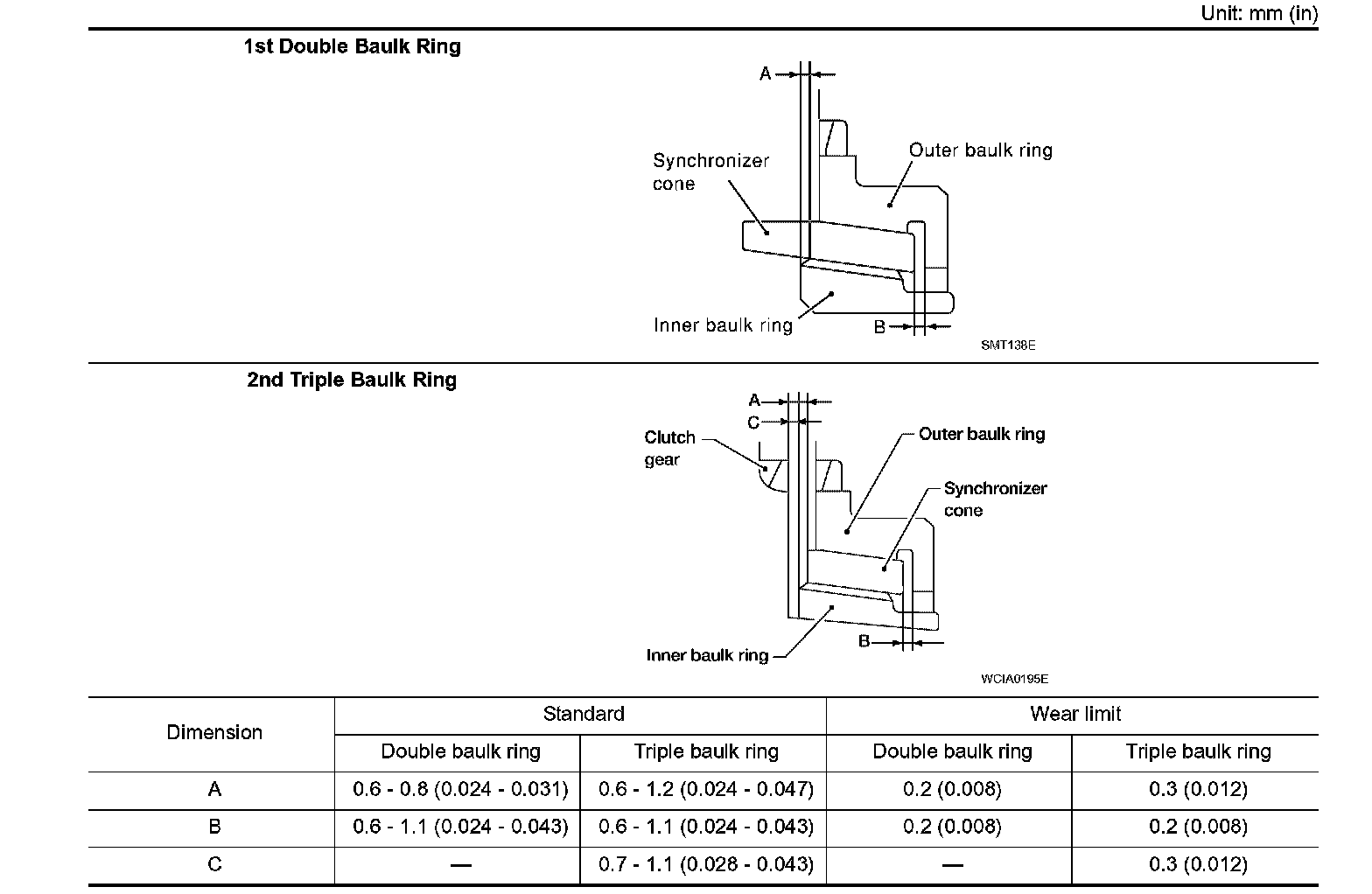

1ST AND 2ND BAULK RING

Available Snap Rings





6TH BUSHING

Available C-rings

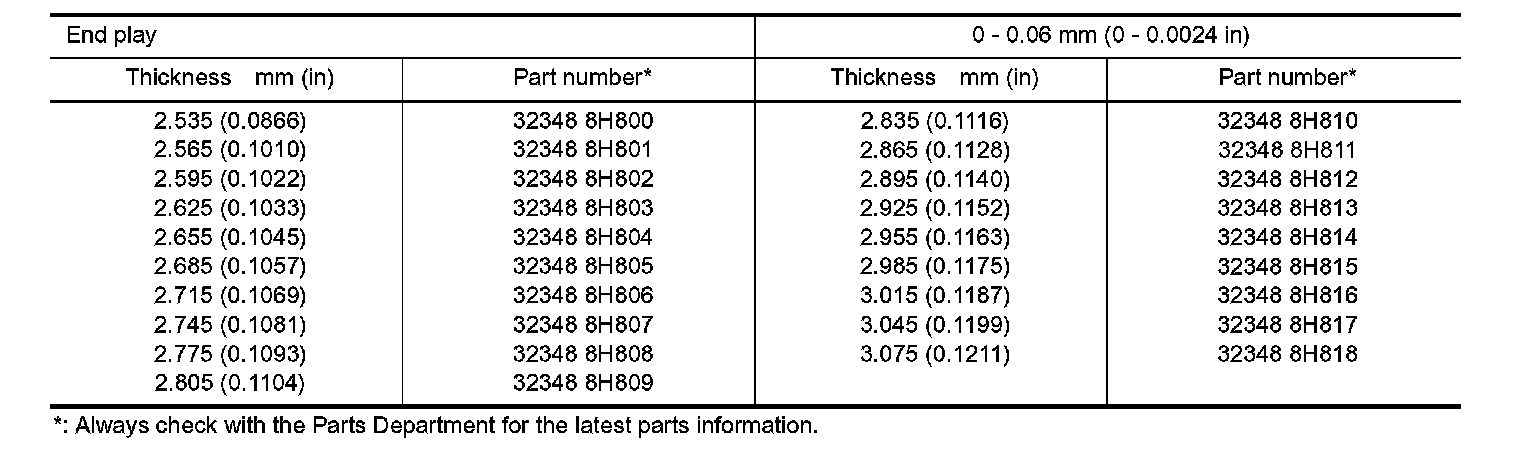

MAINSHAFT C-RING

Available Thrust Washers

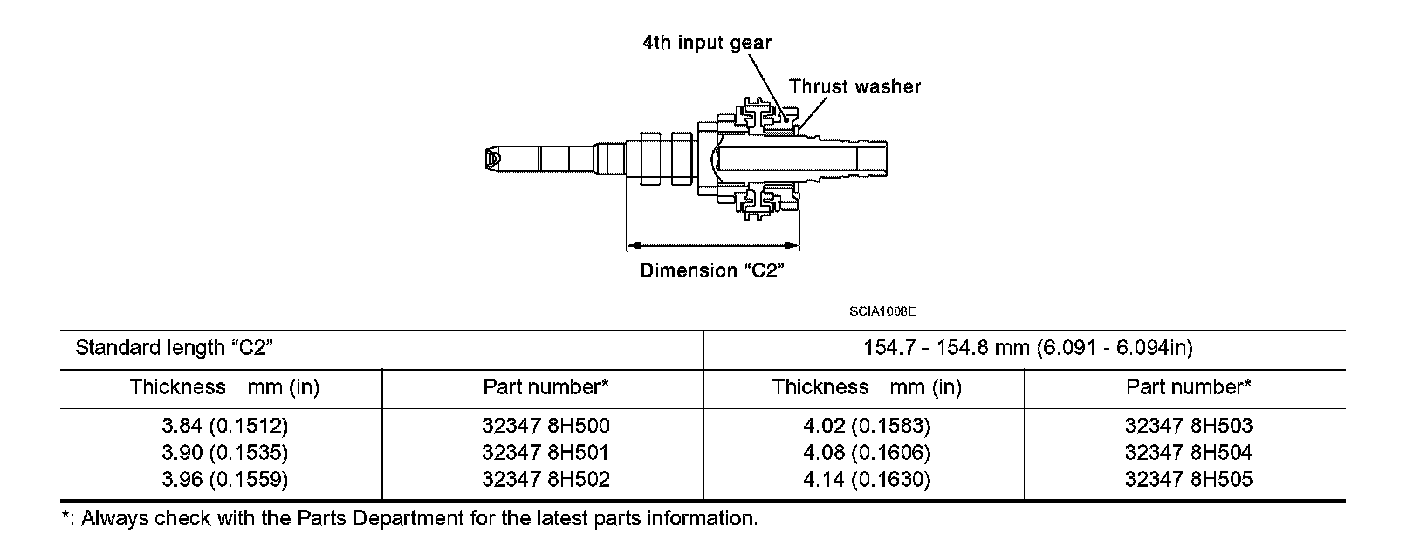

INPUT SHAFT THRUST WASHER

Available Adjusting Shims

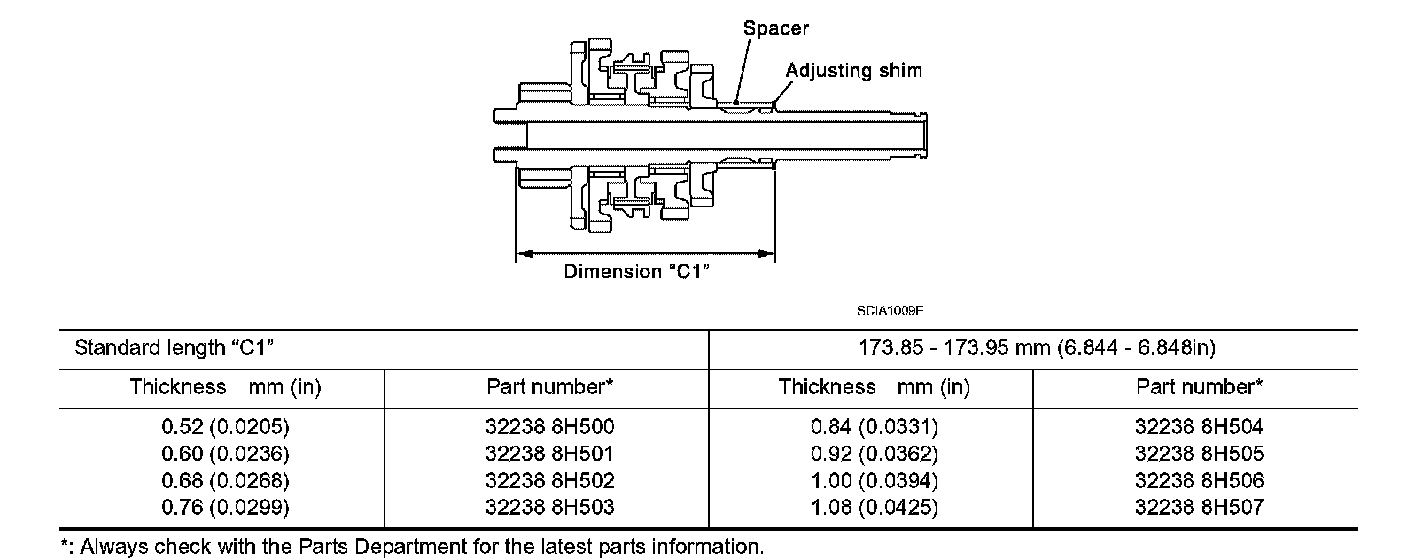

MAINSHAFT ADJUSTING SHIM

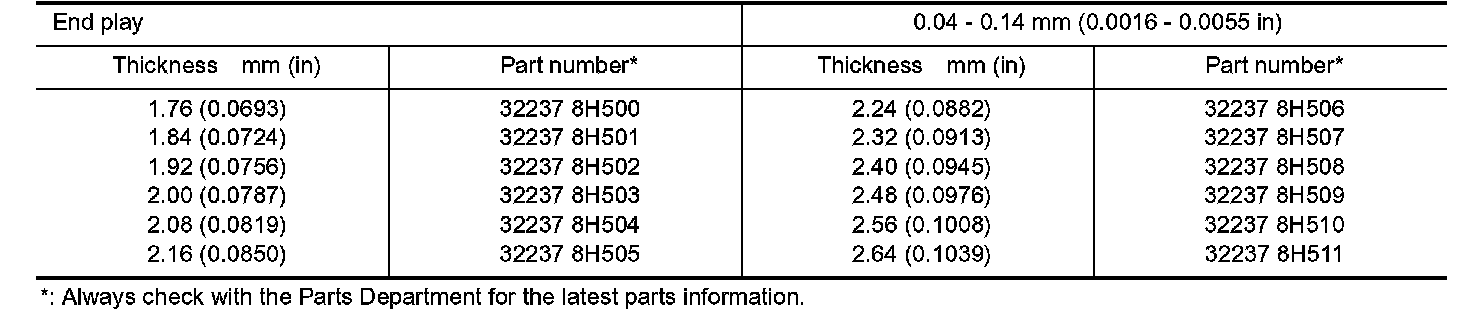

INPUT SHAFT REAR BEARING ADJUSTING SHIM





*: Always check with the Parts Department for the latest parts information.





MAINSHAFT REAR BEARING ADJUSTING SHIM

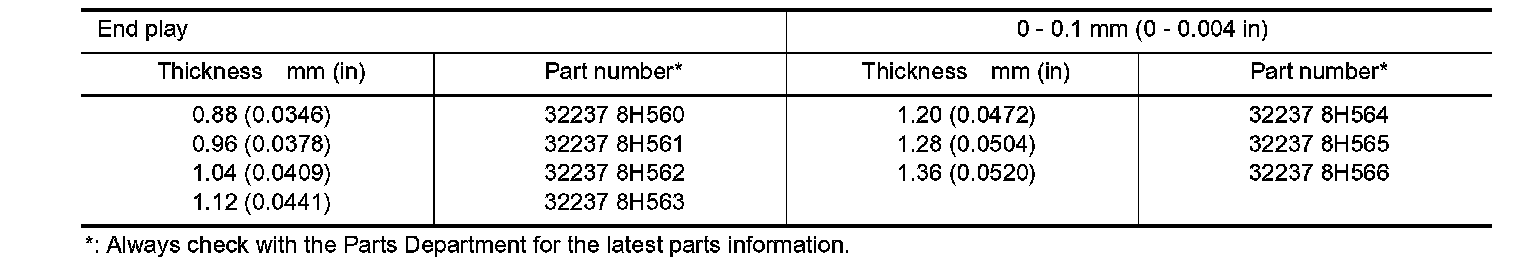

REVERSE IDLER GEAR ADJUSTING SHIM





6TH MAIN GEAR ADJUSTING SHIM

Available Shims
-Differential Side Bearing Preload and Adjusting Shim-





BEARING PRELOAD





DIFFERENTIAL SIDE BEARING ADJUSTING SHIM(S)
