System Specifications

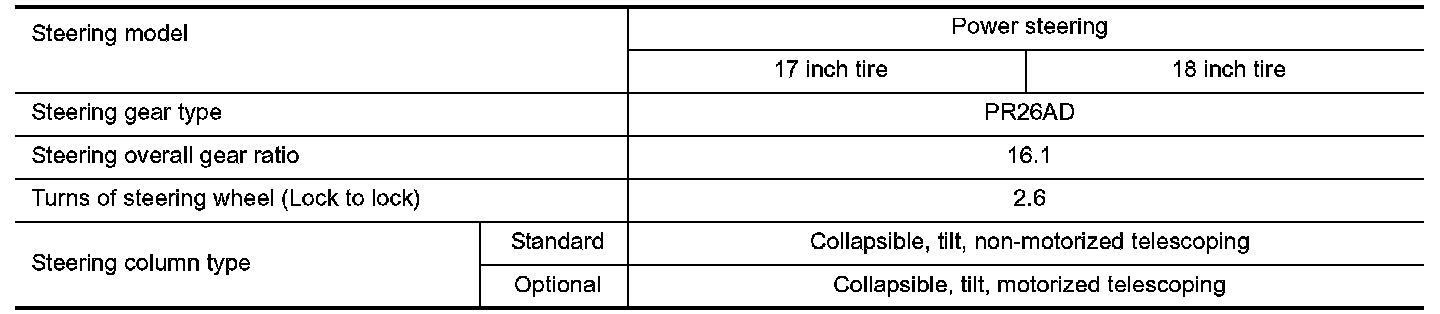

General Specifications

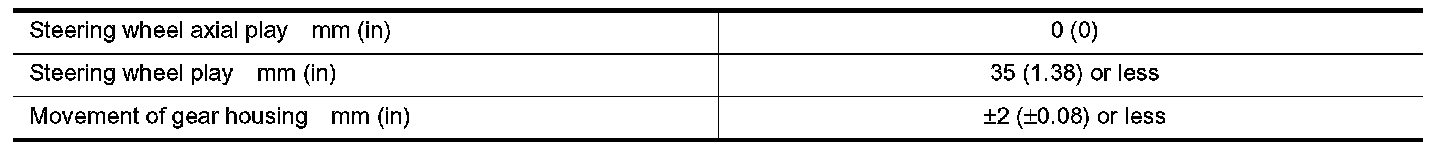

Steering Wheel
Steering wheel axial play 0 mm (0 inch)
Steering wheel play 35 mm (1.38 inch) or less
Movement of gear housing +2 mm (+0.08 inch) or less

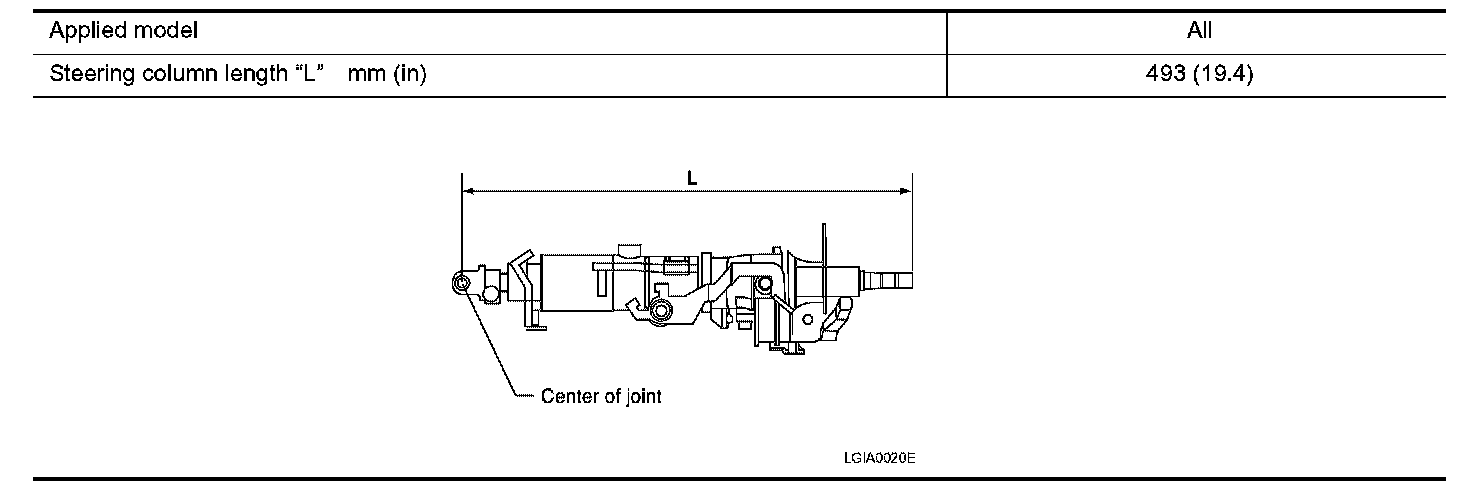

Steering Column

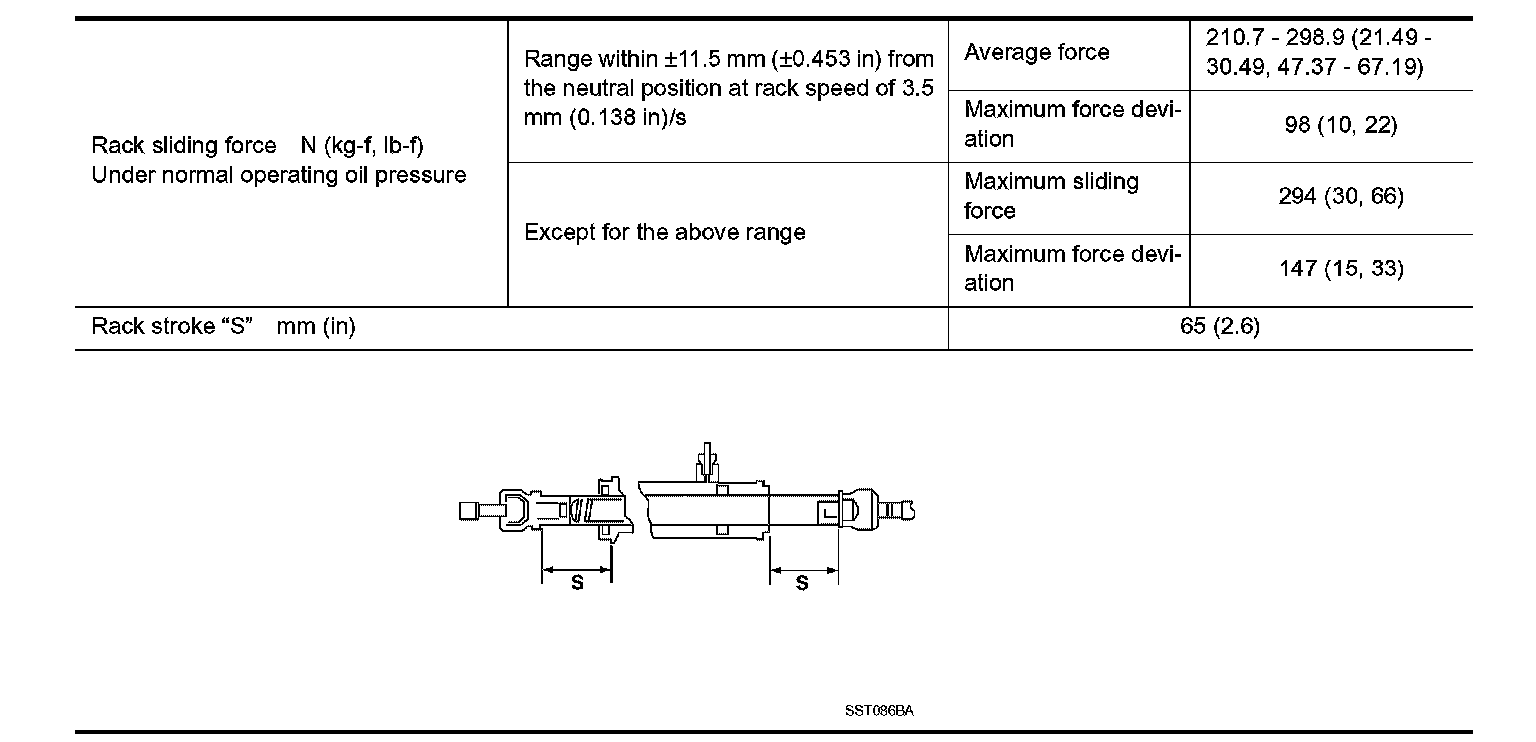

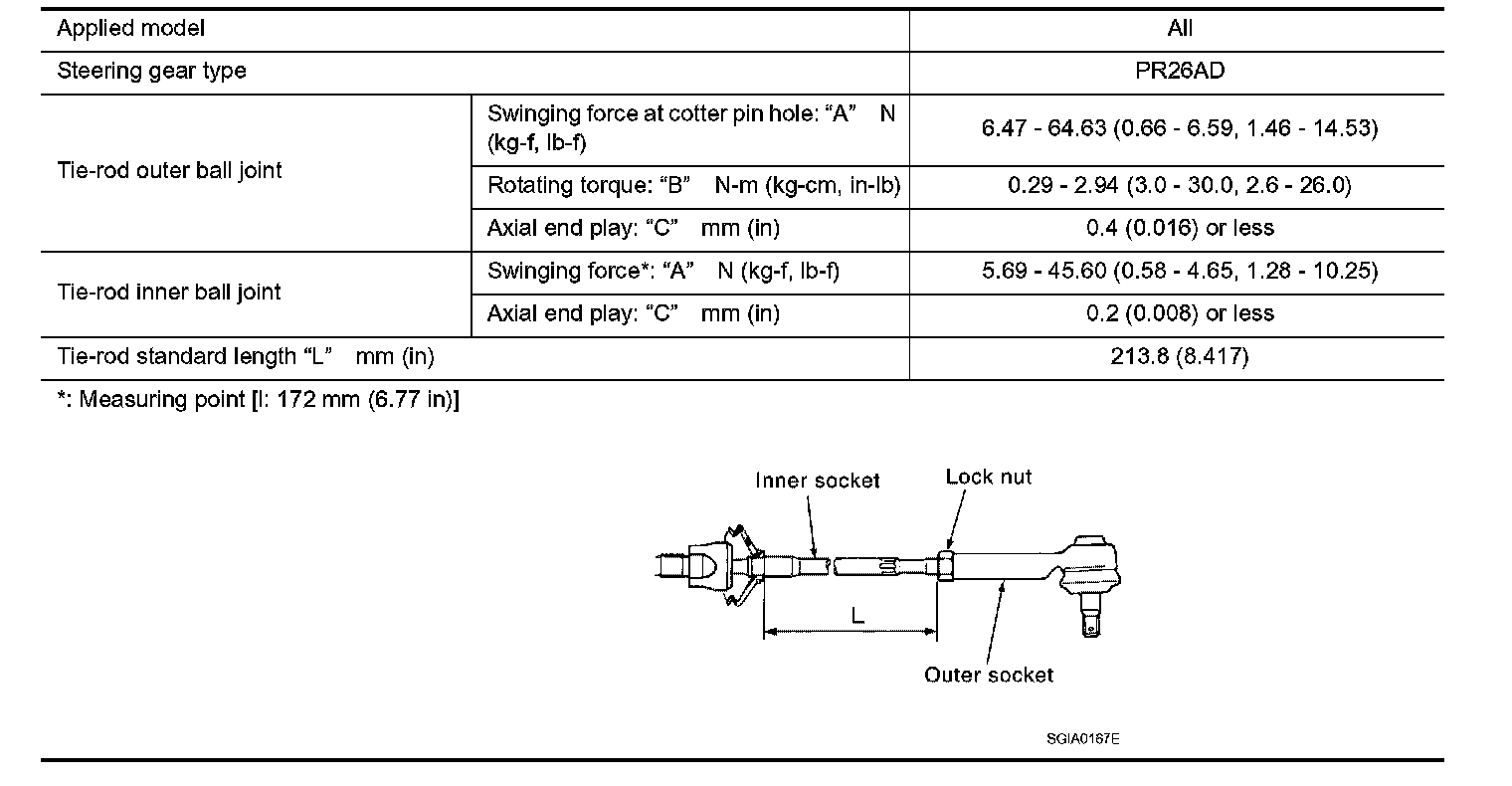

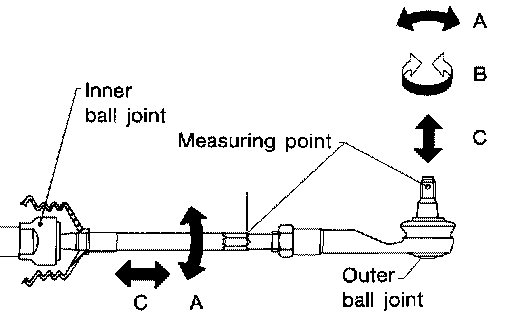

Steering Gear and Linkage

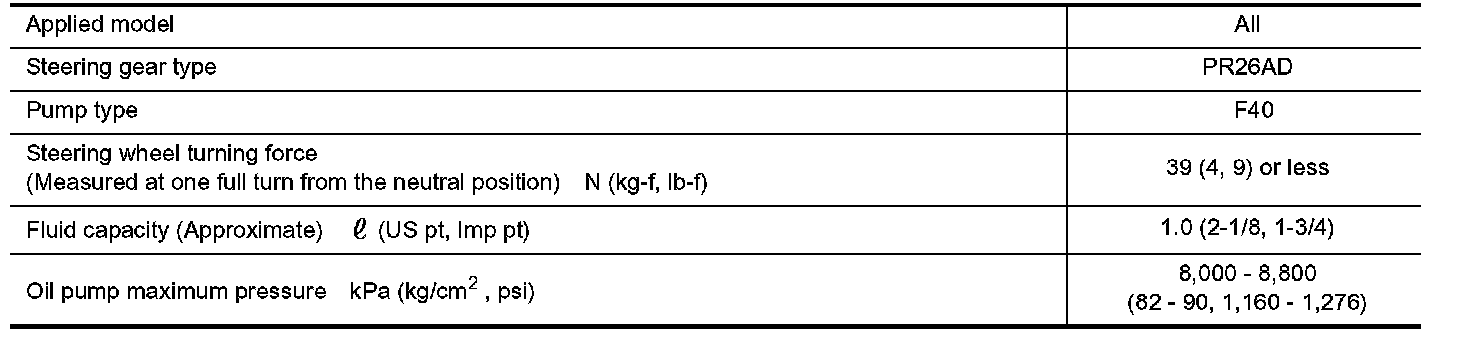

Power Steering
