Home >> Nissan-Datsun >> 2004 >> Sentra L4-1.8L (QG18DE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Intake Manifold

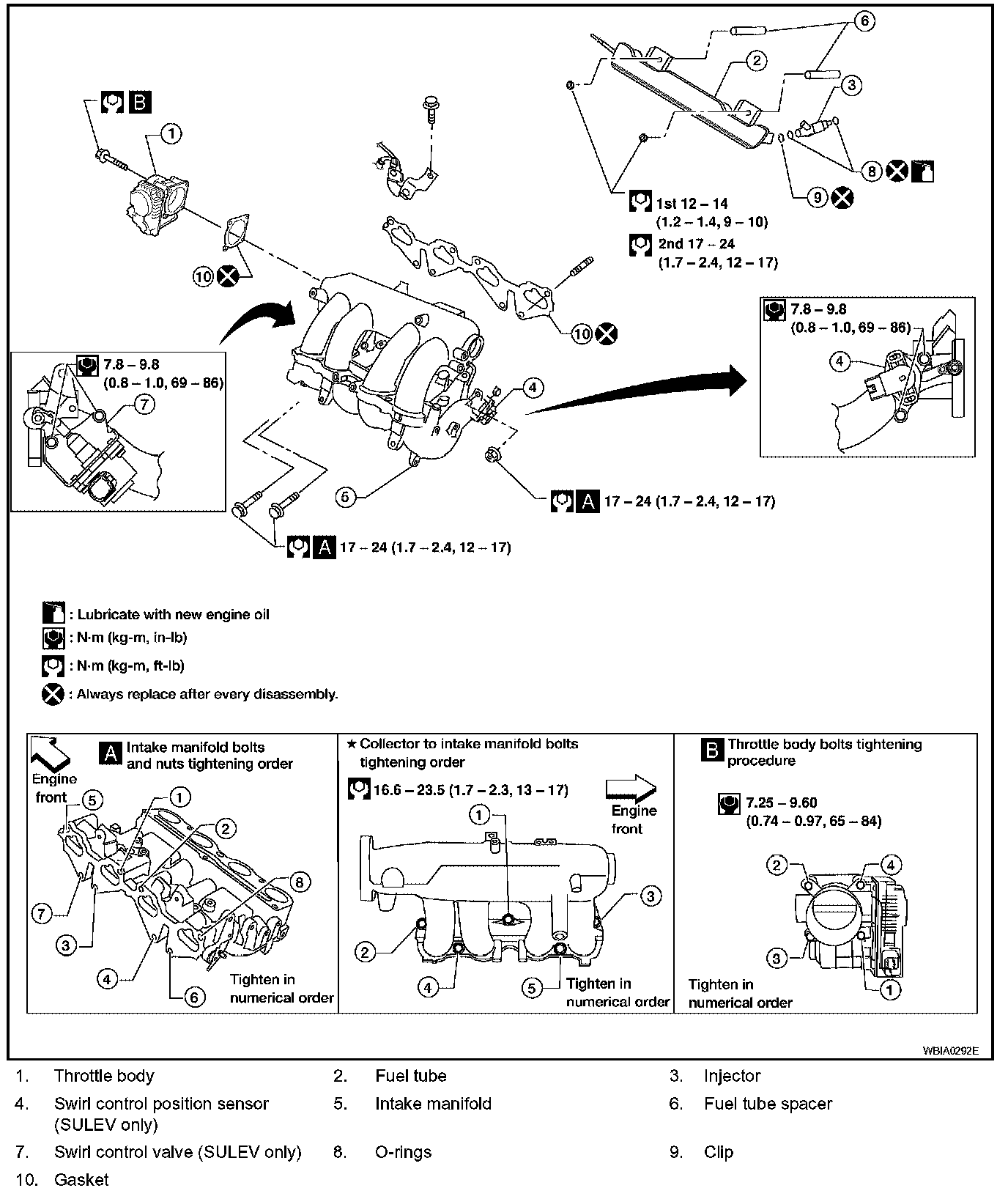

Intake Manifold

1.8l:
