Data Link Connector: Locations

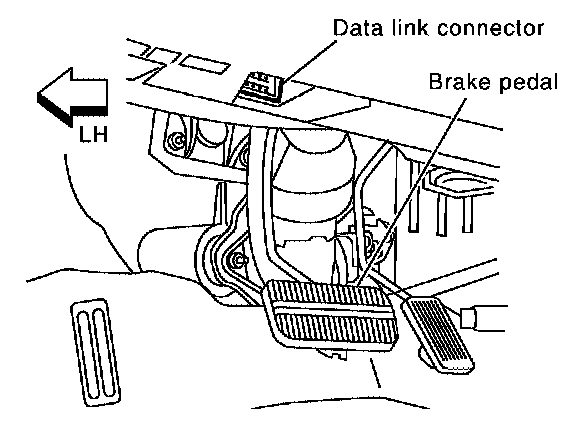

Sulev Models:

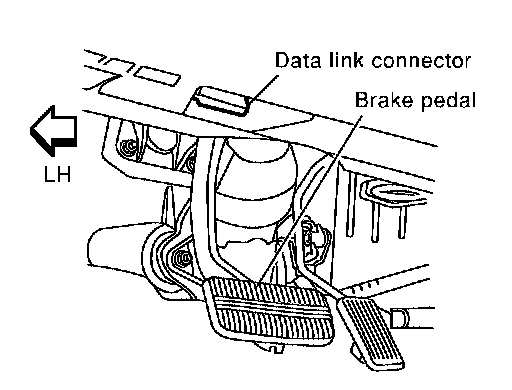

Except Sulev Models:



Engine Control Component Parts Location - Except Sulev Models:
