Coolant Temperature Sensor/Switch (For Computer): Locations

A/T Models Ulev And M/T Models:

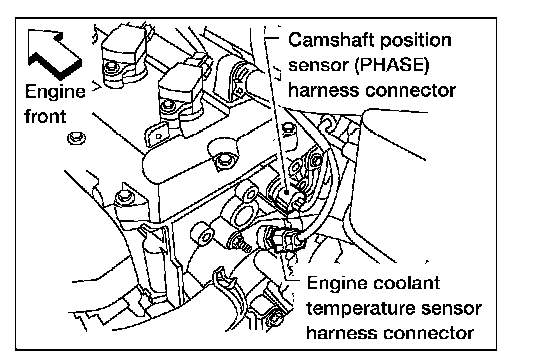

Engine Control Component Parts Location - A/T Models Ulev And M/T Models:

A/T Models Except Ulev:

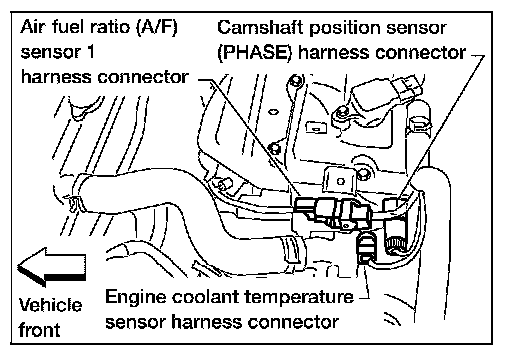

Engine Control Component Parts Location - A/T Models Except Ulev:
