Component Locations

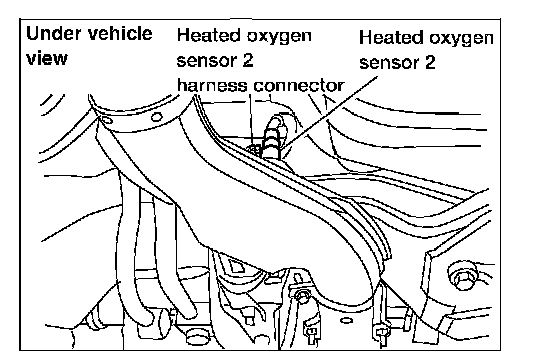

A/T Models Ulev And M/T Models:

A/T Models Ulev And M/T Models:

A/T Models Ulev And M/T Models:

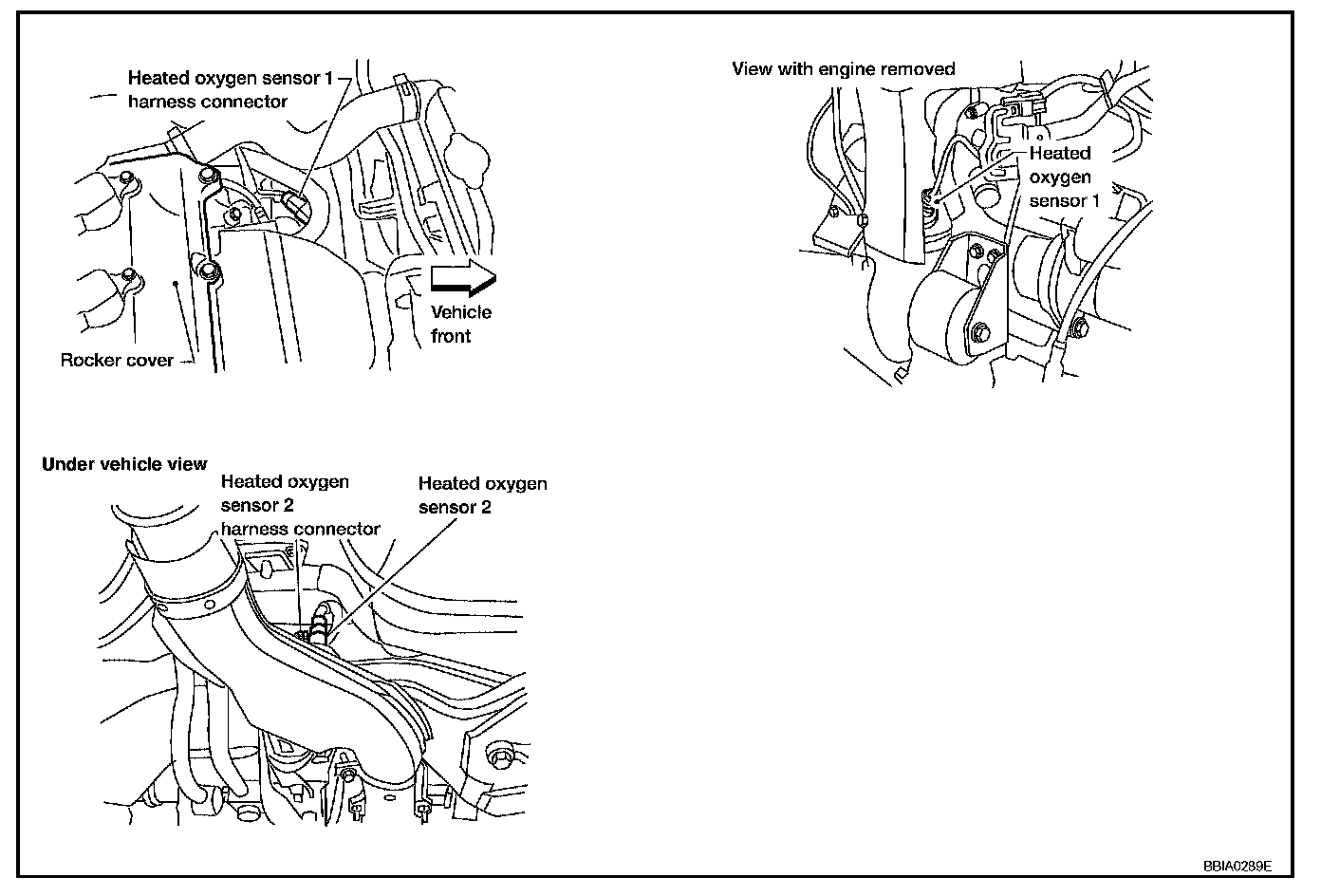

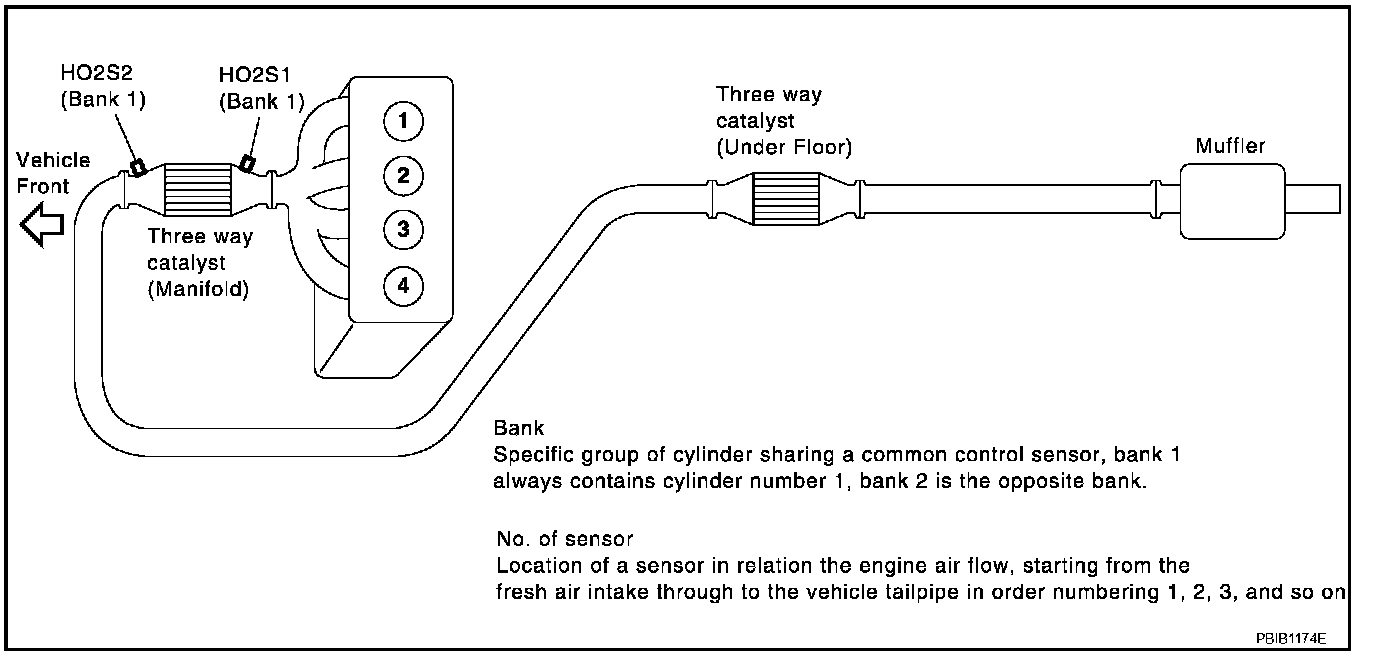

Engine Control Component Parts Location - A/T Models Ulev And M/T Models:

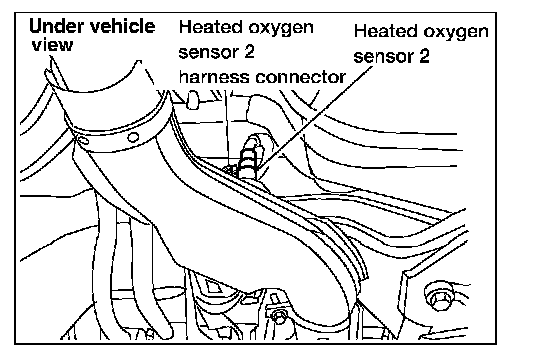

A/T Models Except Ulev:

A/T Models Except Ulev:

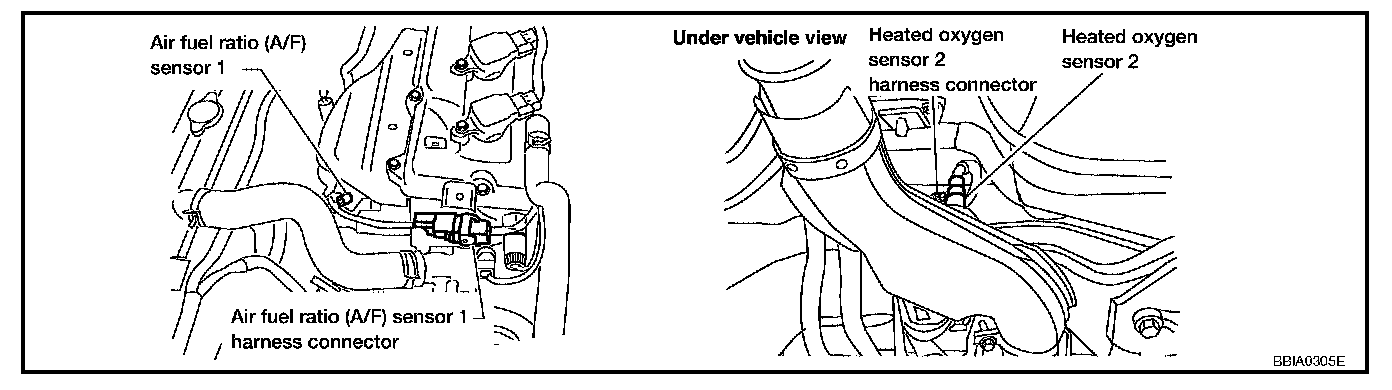

Engine Control Component Parts Location - A/T Models Except Ulev:
