Engine Control System Schematic

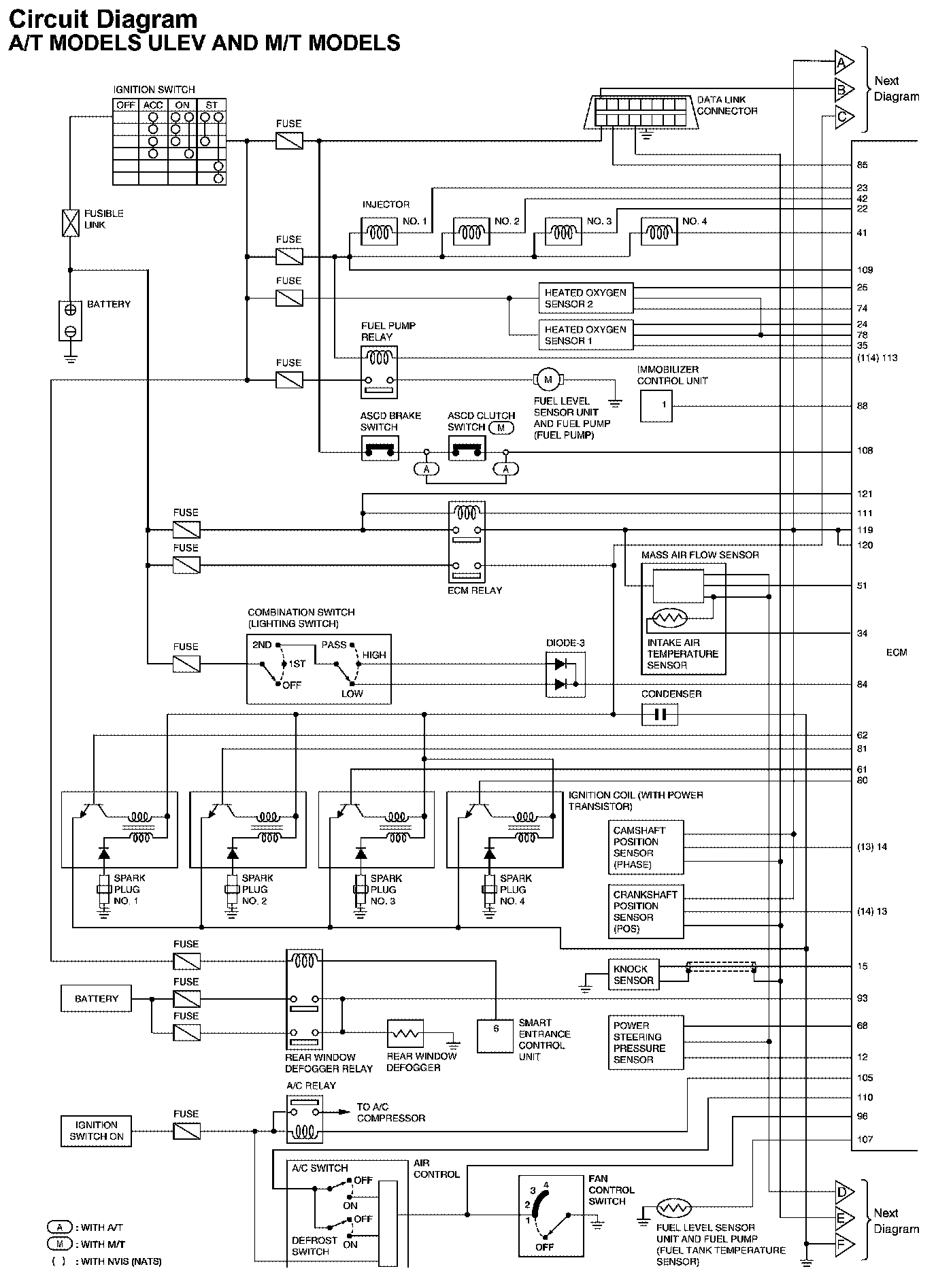

Circuit Diagram A/T Models Ulev And M/T Models Part 1:

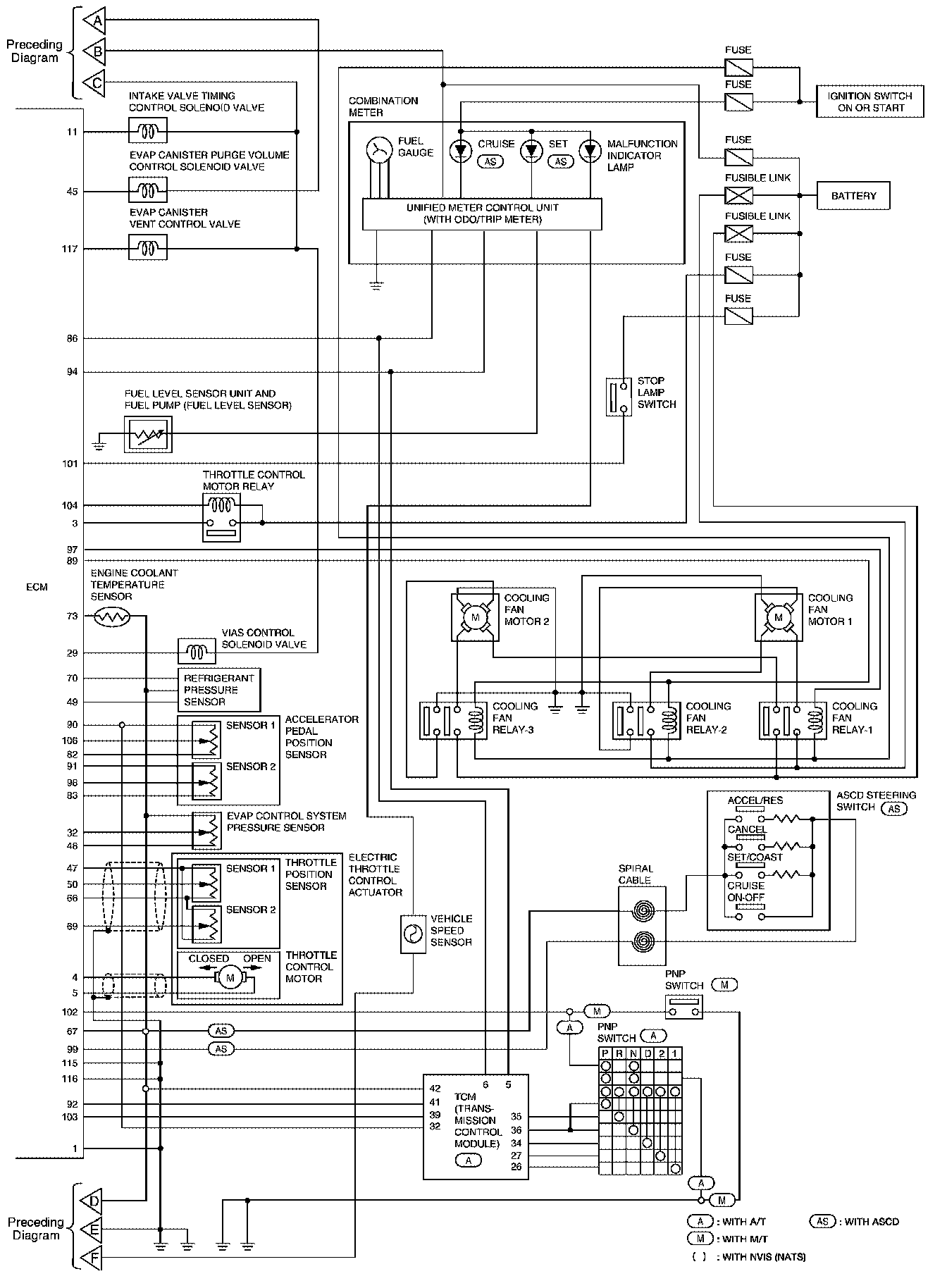

Circuit Diagram A/T Models Ulev And M/T Models Part 2:

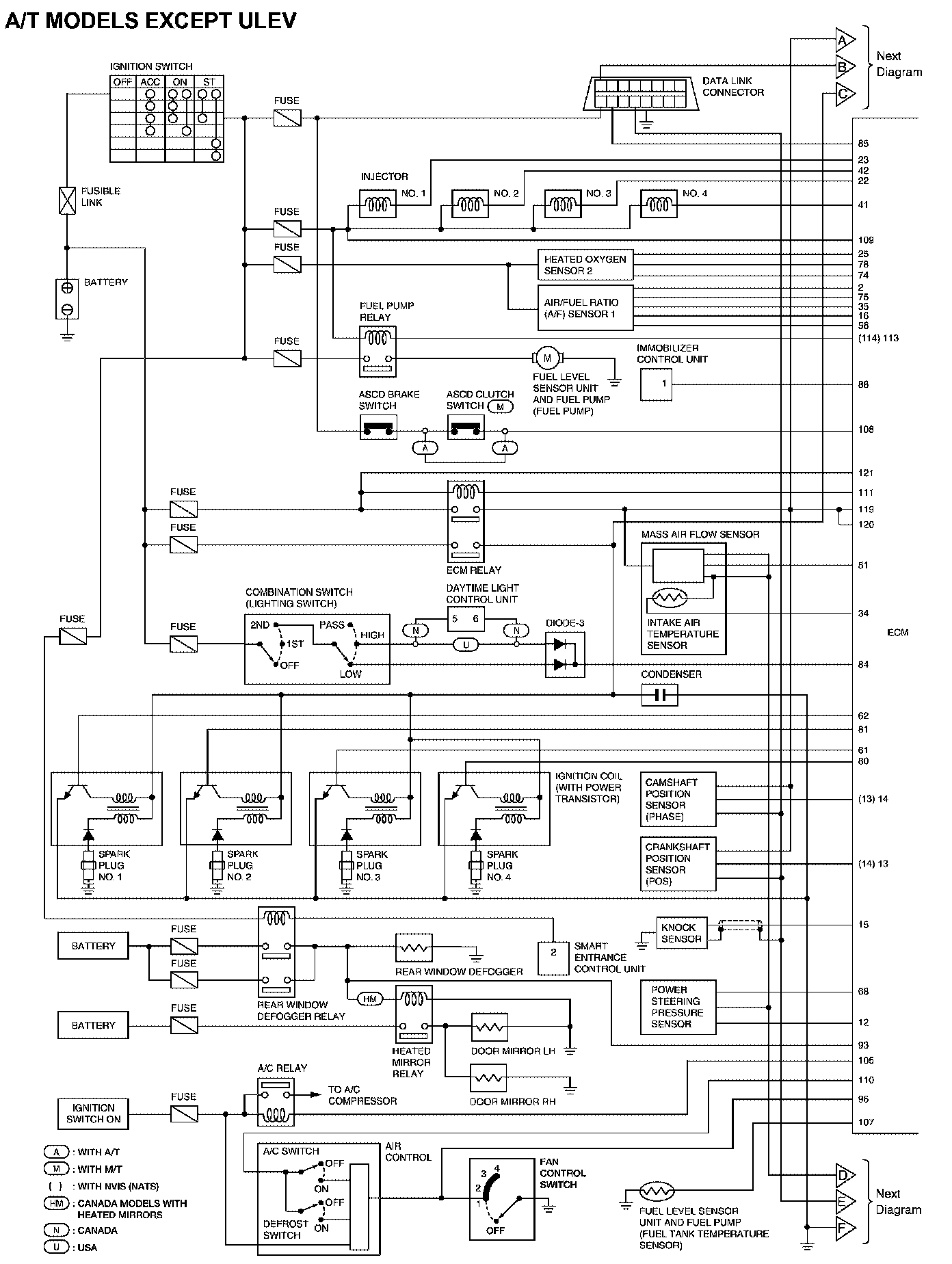

Circuit Diagram A/T Models Except Ulev Part 1:

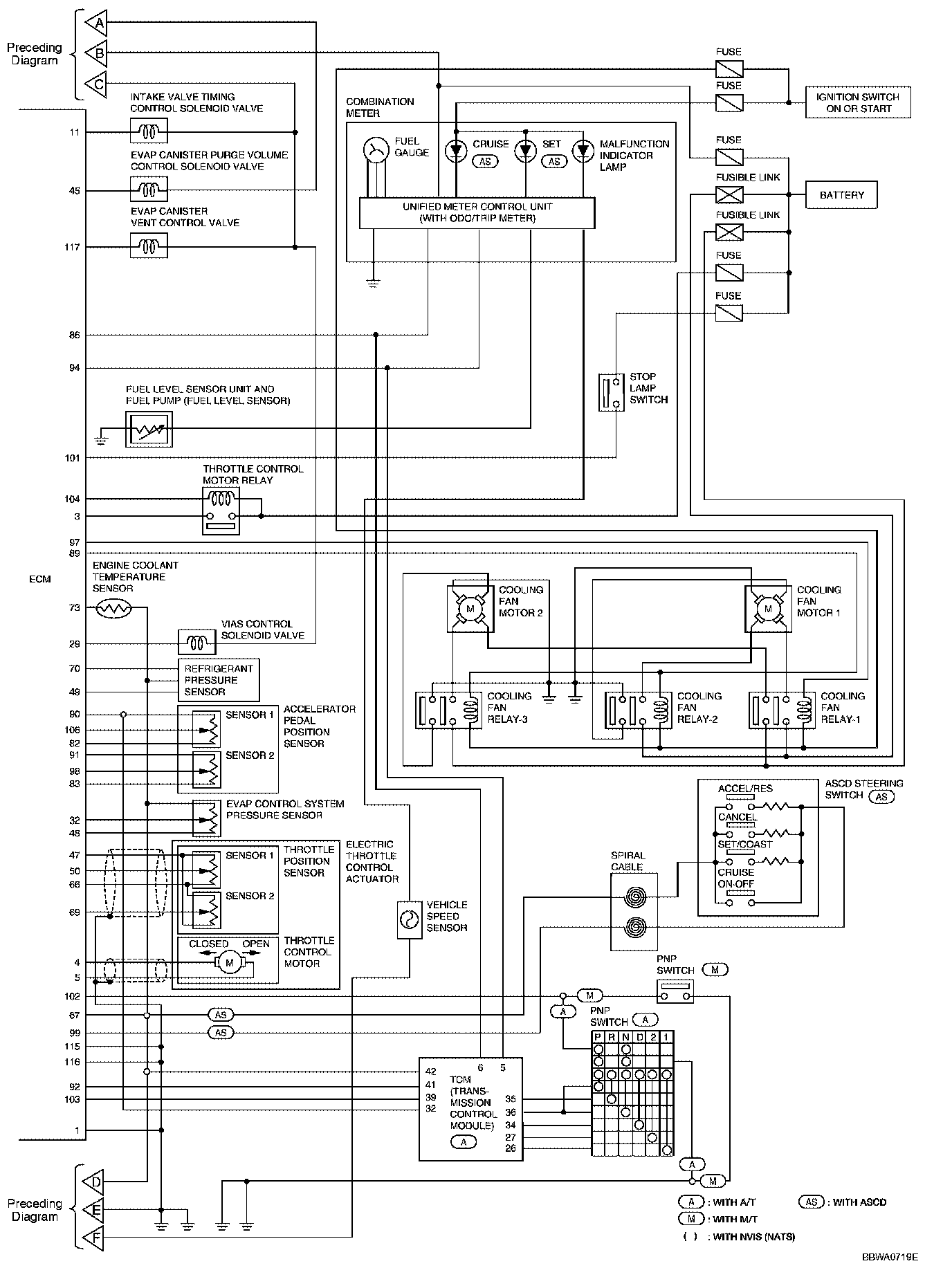

Circuit Diagram A/T Models Except Ulev Part 2:
