Scan Tool Testing and Procedures

CAN Diagnostic Support Monitor

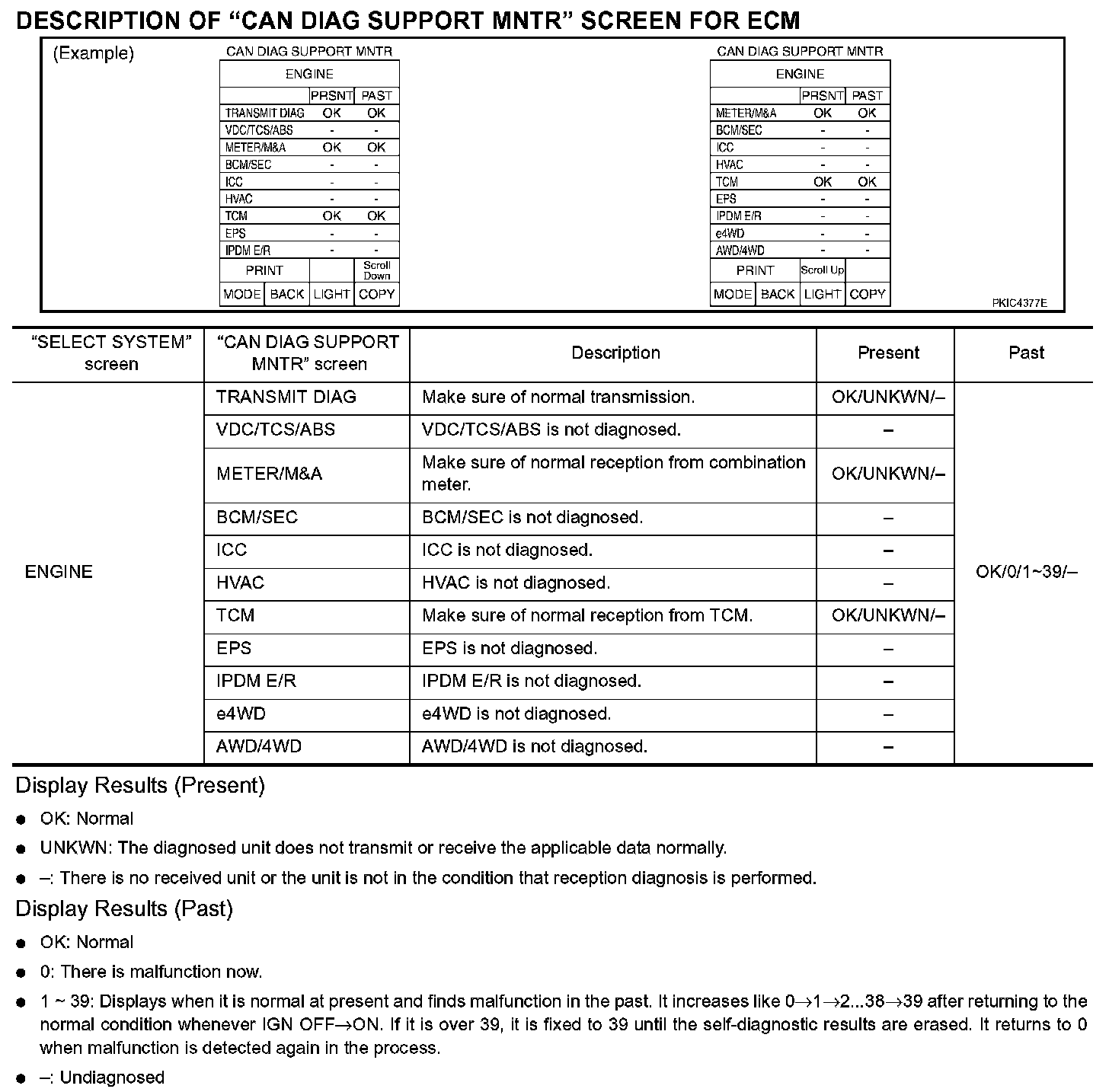

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR ECM

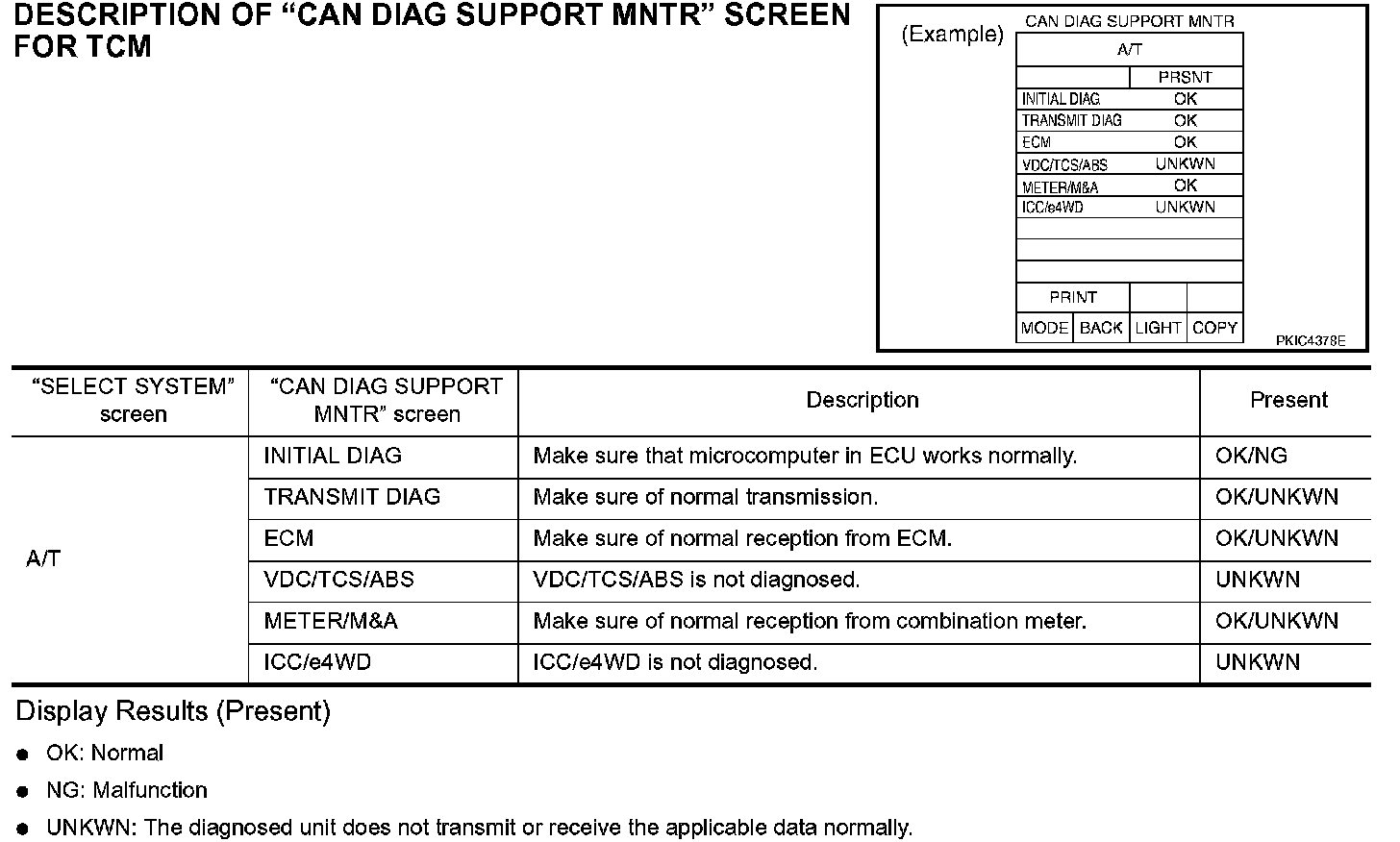

DESCRIPTION OF "CAN DIAG SUPPORT MNTR" SCREEN FOR TCM
