Control Valve
Control Valve

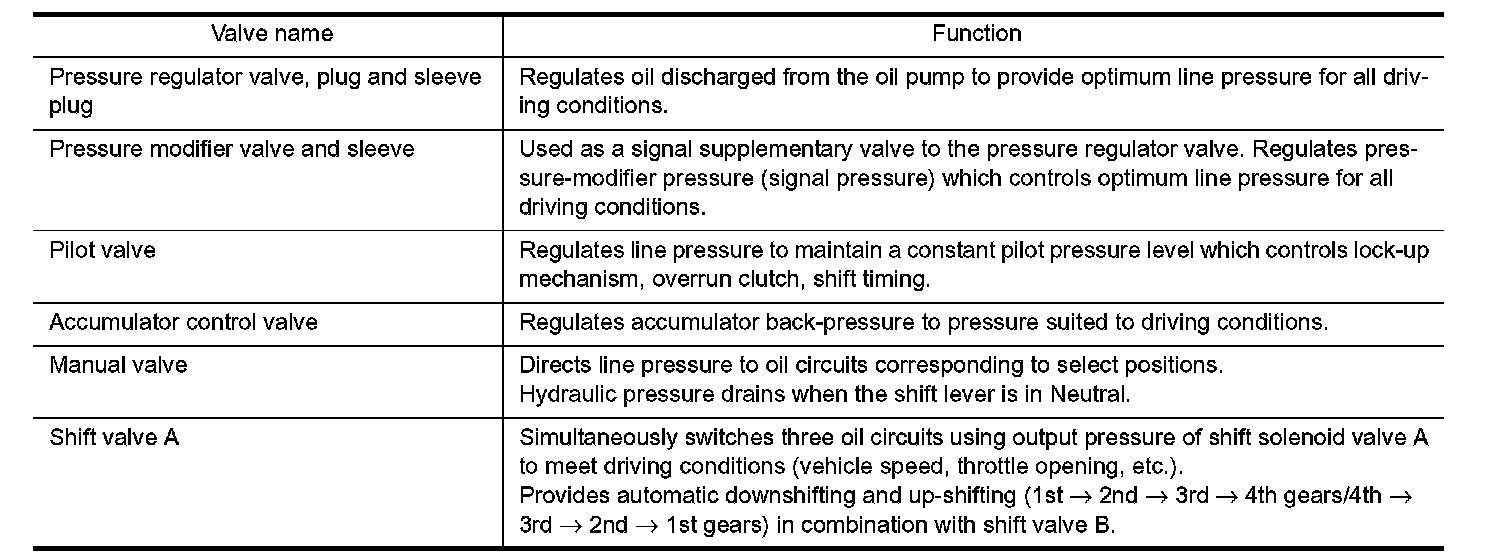

Function Of Control Valves (part 1):

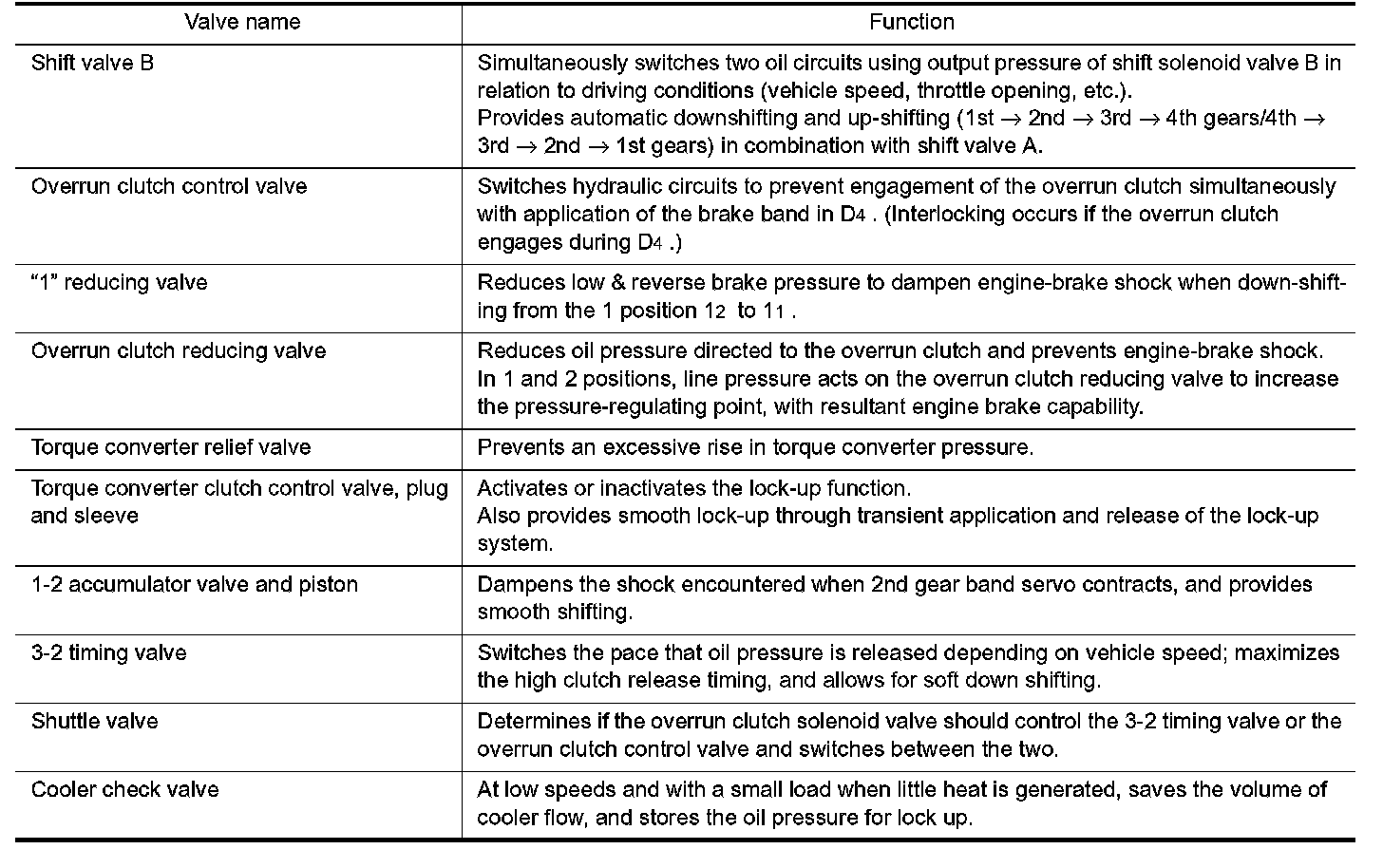

Function Of Control Valves (part 1):
