Shift Schedule

Shift Schedule

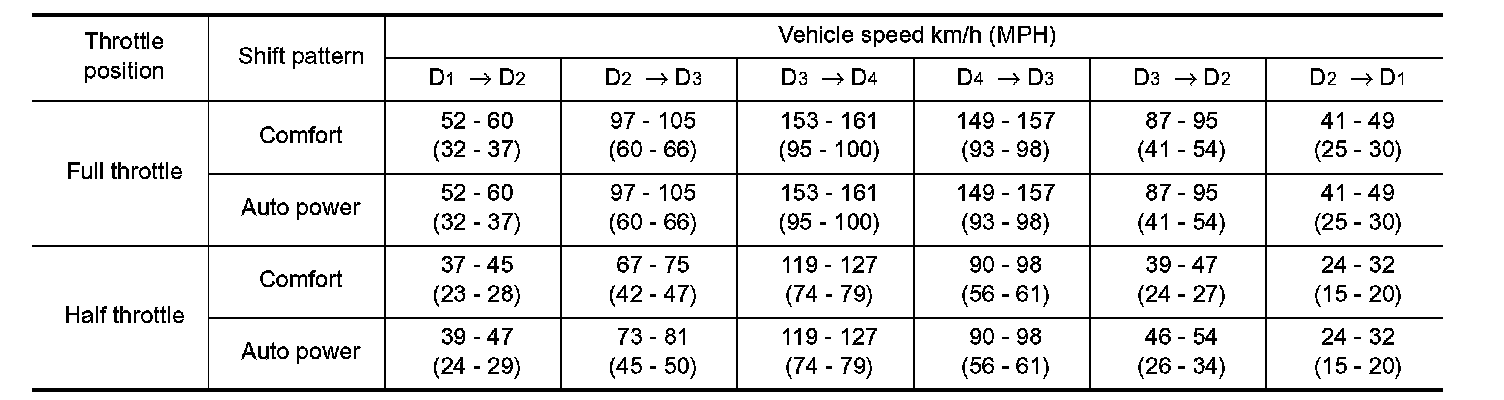

Vehicle Speed When Shifting Gears Throttle Position:

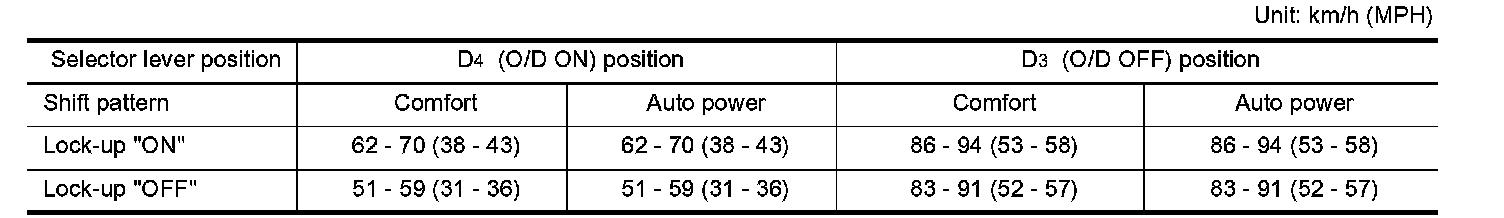

Vehicle Speed When Preforming And Releasing Lock-Up:

NOTE:
^ Lock-up vehicle speed indicates the speed in D4 (O/D ON) position.
^ Perform lock-up inspection after warming up engine.
^ Lock-up vehicle speed may vary depending on the driving conditions and circumstances.
