System Specifications

SERVICE DATA AND SPECIFICATIONS (SDS)

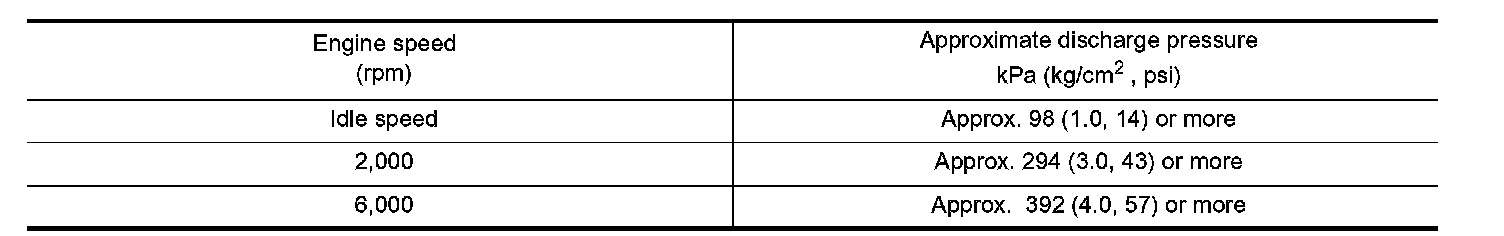

Oil Pressure:





Oil Pressure

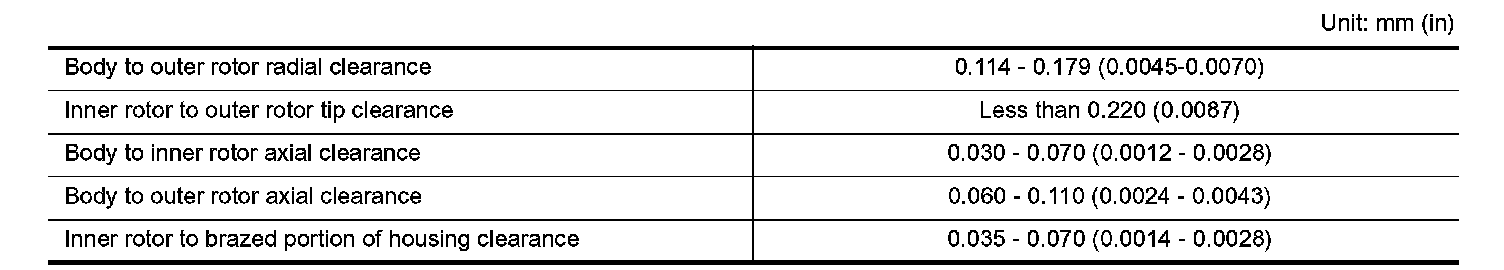

Oil Pump:





Oil Pump

Regulator Valve:





Regulator Valve

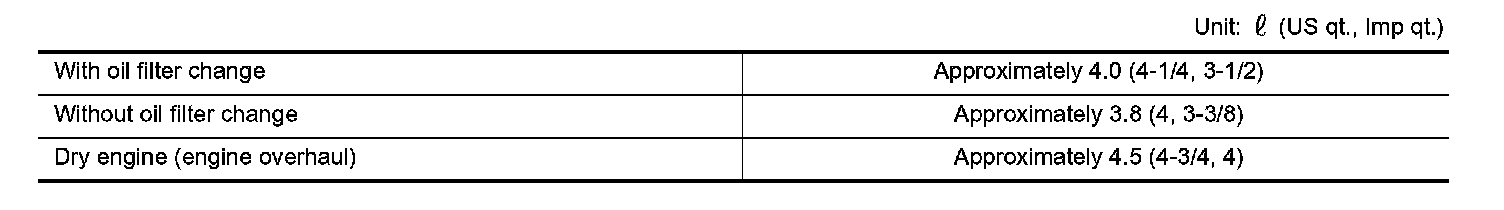

Oil Capacity:





Oil Capacity
