Work Support Mode

DTC WORK SUPPORT MODE WITH CONSULT-II
CONSULT-II Setting Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.





1. Turn ignition switch OFF.

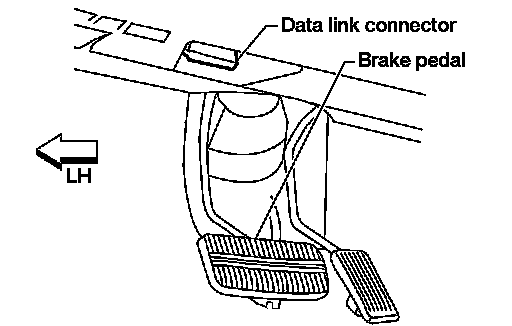

2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.





3. Turn ignition switch ON.

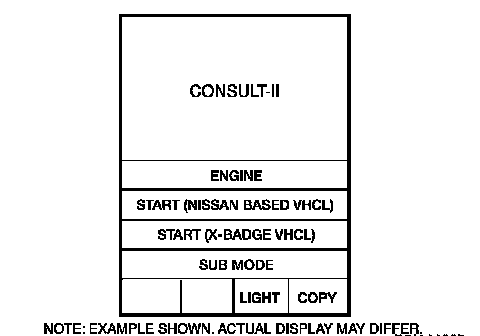

4. Touch "START (NISSAN BASED VHCL)".

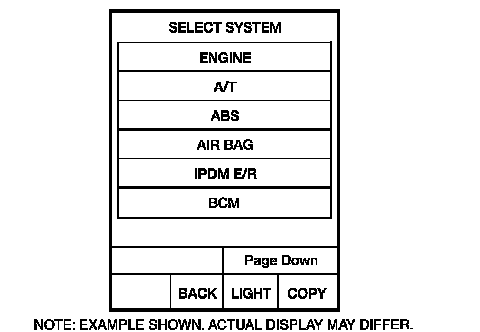

5. Touch "A/T".
If "A/T" is not indicated, go to GI-38, "CONSULT-II Data Link Connector (DLC) Circuit". CONSULT-II Checking System

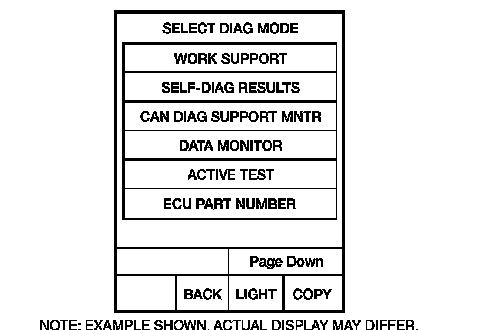

6. Touch "DTC WORK SUPPORT".

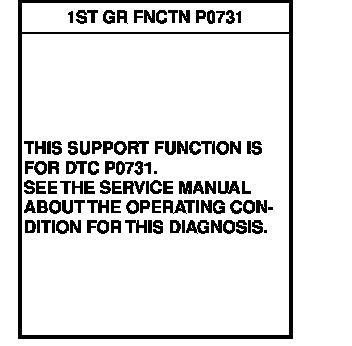

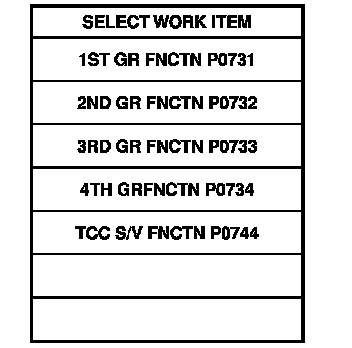

7. Touch select item menu (1ST, 2ND, etc.).





8. Touch "START".





9. Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

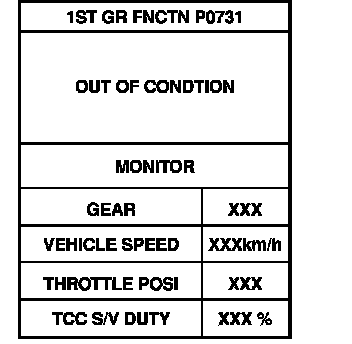

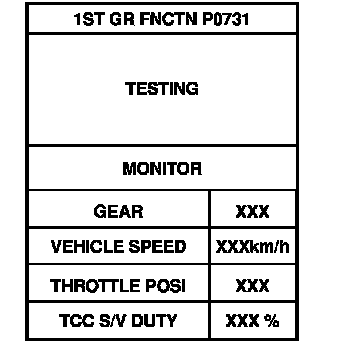

^ When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

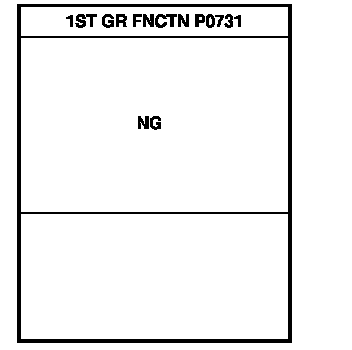

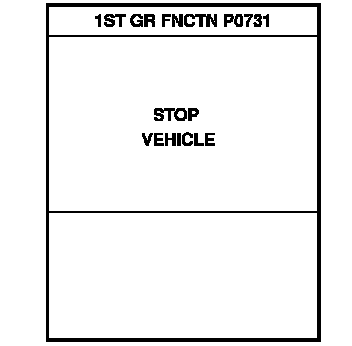

10. Stop vehicle. If "NG" appears on the screen, malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

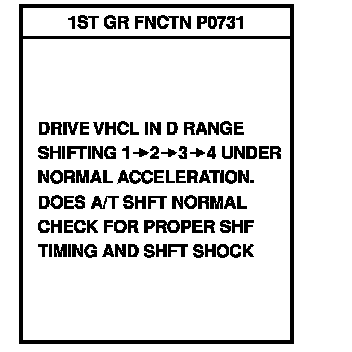

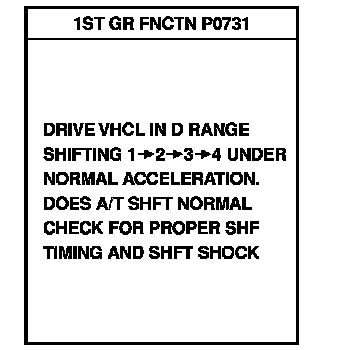

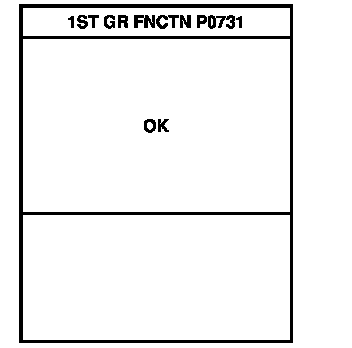

11. Perform test drive to check gear shift feeling in accordance with instructions displayed.





12. Touch "YES" or "NO".








13. CONSULT-II procedure ended.

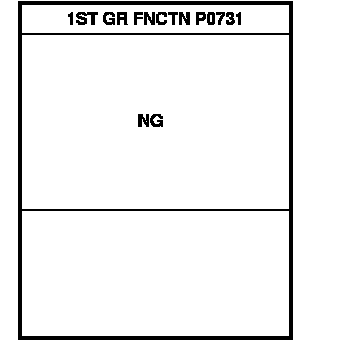

^ If "NG" appears on the screen, a malfunction may exist. Go to "DIAGNOSTIC PROCEDURE".

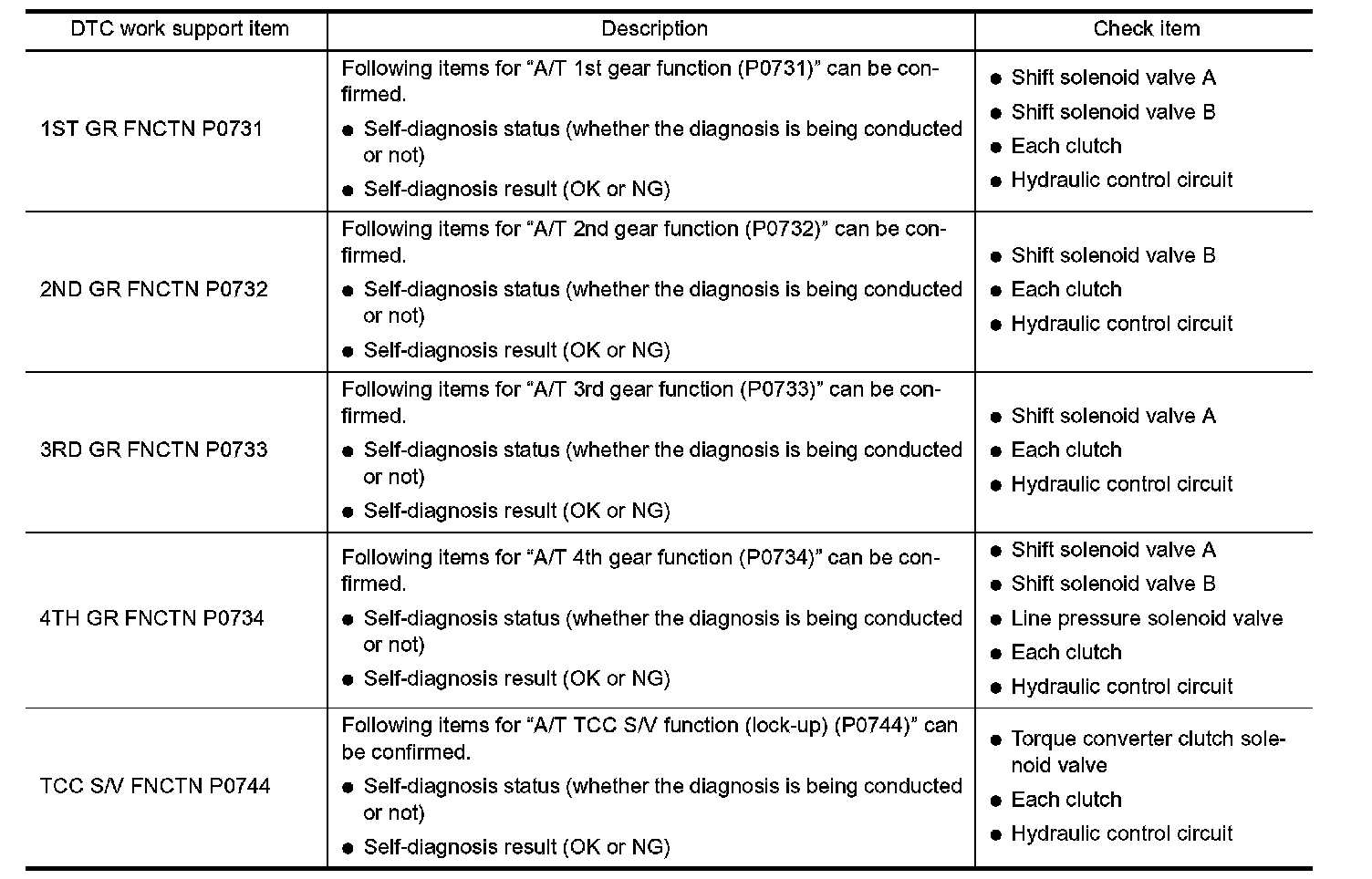

DTC Work Support Mode:
