Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2007
>>
Sentra L4-2.0L (MR20DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
>>
System Specifications
System Specifications

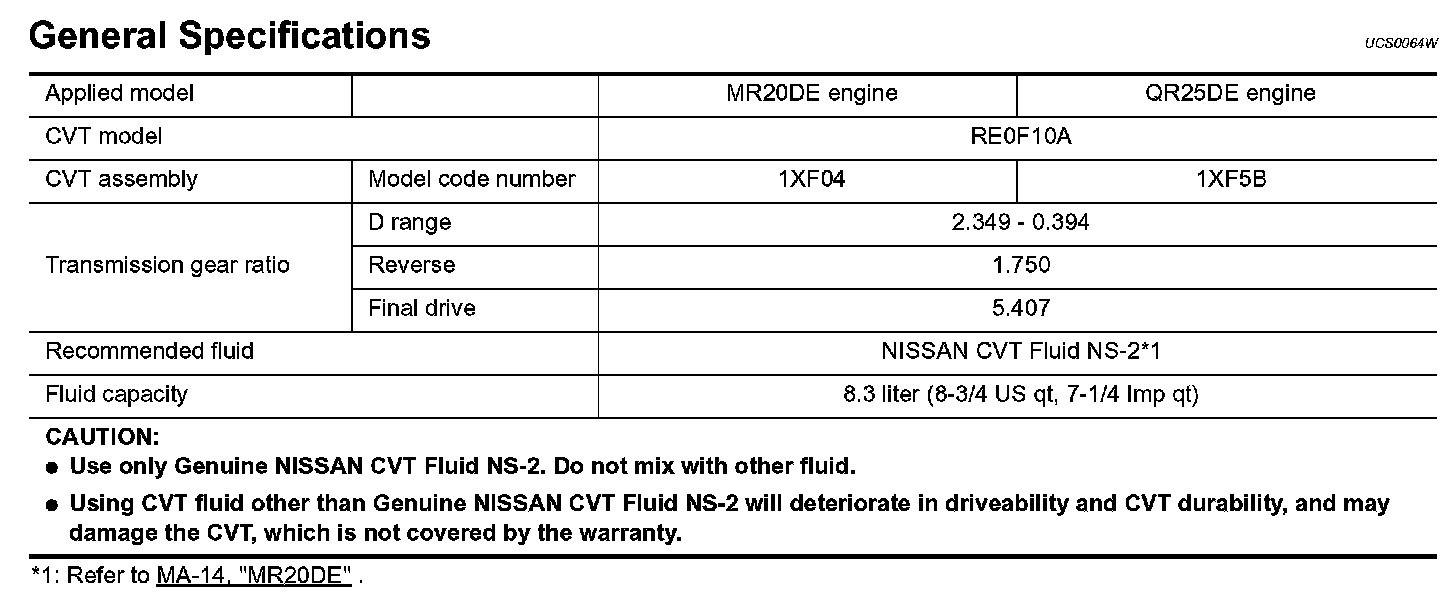

General Specifications

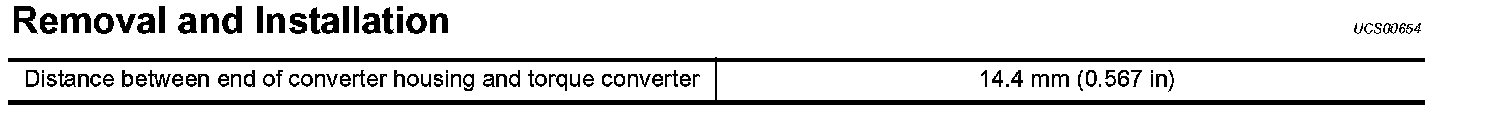

Removal and Installation

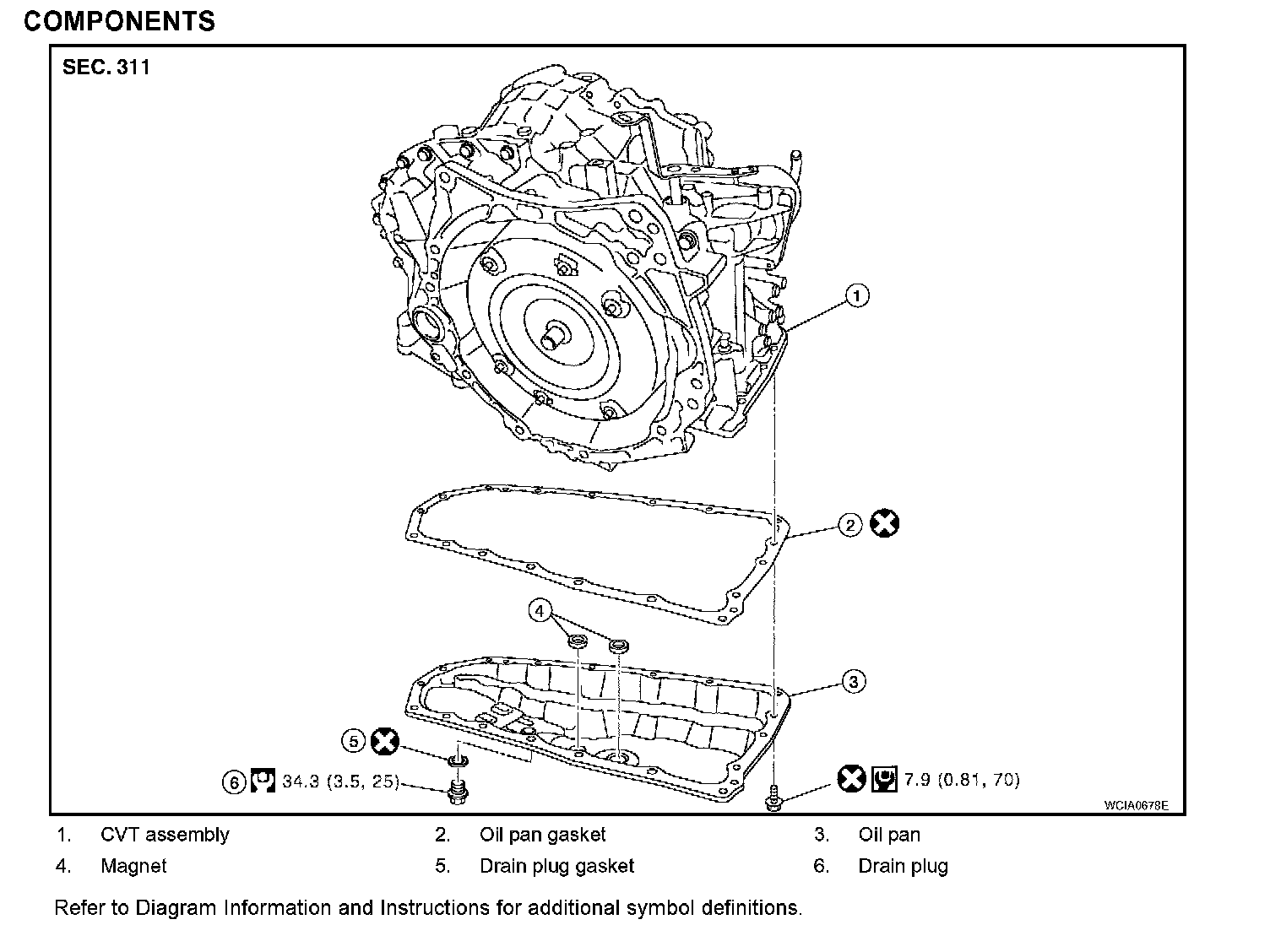

Exploded View CVT-194:
Fluid Pan
