Removal and Installation

REAR SEAT

60:40 SPLIT FOLD DOWN RIGHT SEATBACK




Removal
1. Lift up on the front of the right seat cushion and fold forward toward the front of the vehicle.

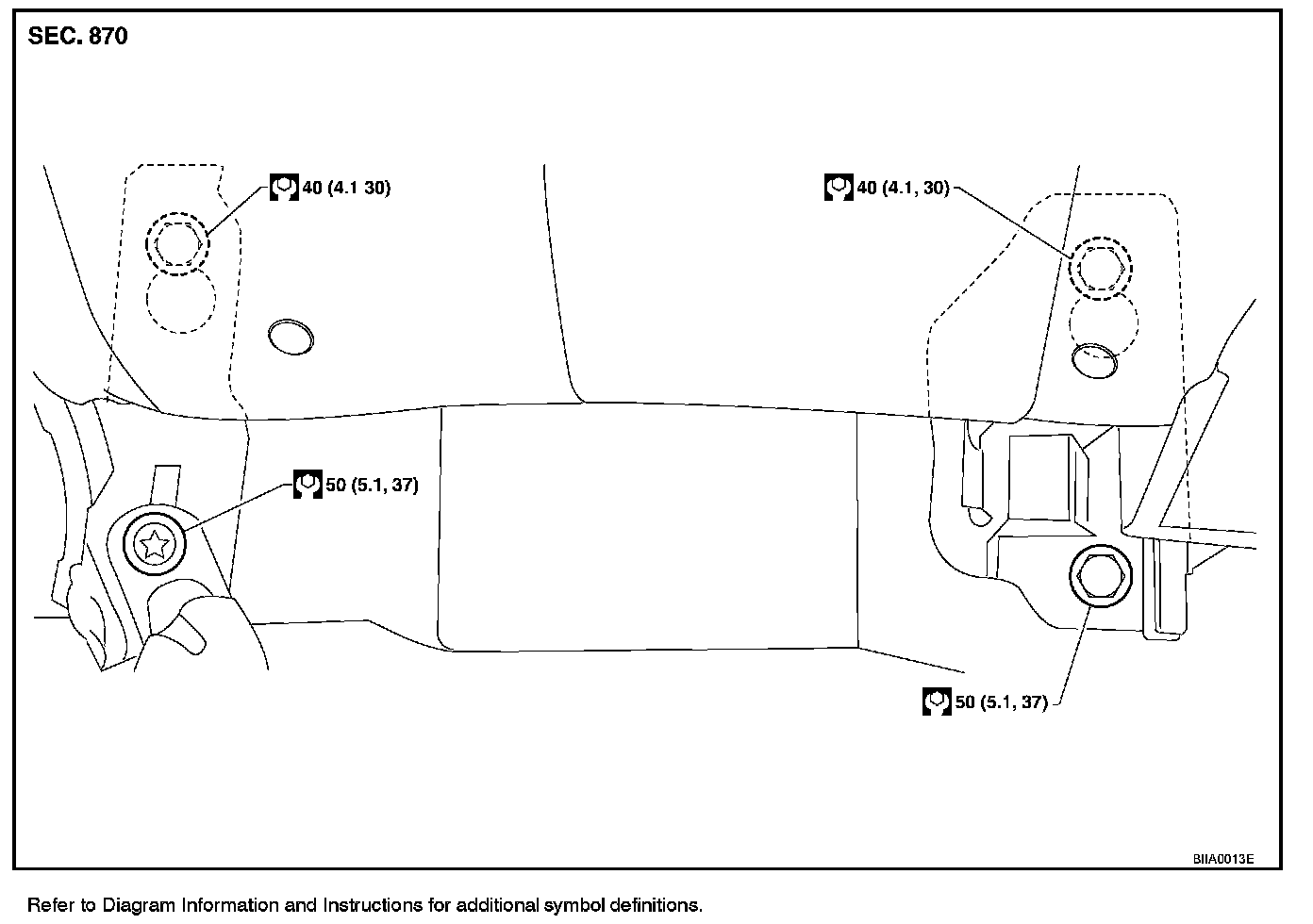

2. Remove the lower seatback mounting bolts from the right rear seat back brackets.
3. Slide rear seat back brackets toward the rear of the vehicle.
4. Lift the right seatback and remove from the vehicle.

Installation
Installation is the reverse order of removal.

60:40 SPLIT FOLD DOWN LEFT SEATBACK




Removal
1. Lift the right seatback and remove from the vehicle.
2. Remove the lower seatback mounting bolts from the right rear seat back brackets.
3. Slide rear seat back brackets toward the rear of the vehicle.
4. Lift the right seatback and remove from the vehicle.

Installation
Installation is the reverse order of removal.
