Intelligent Key System Schematic

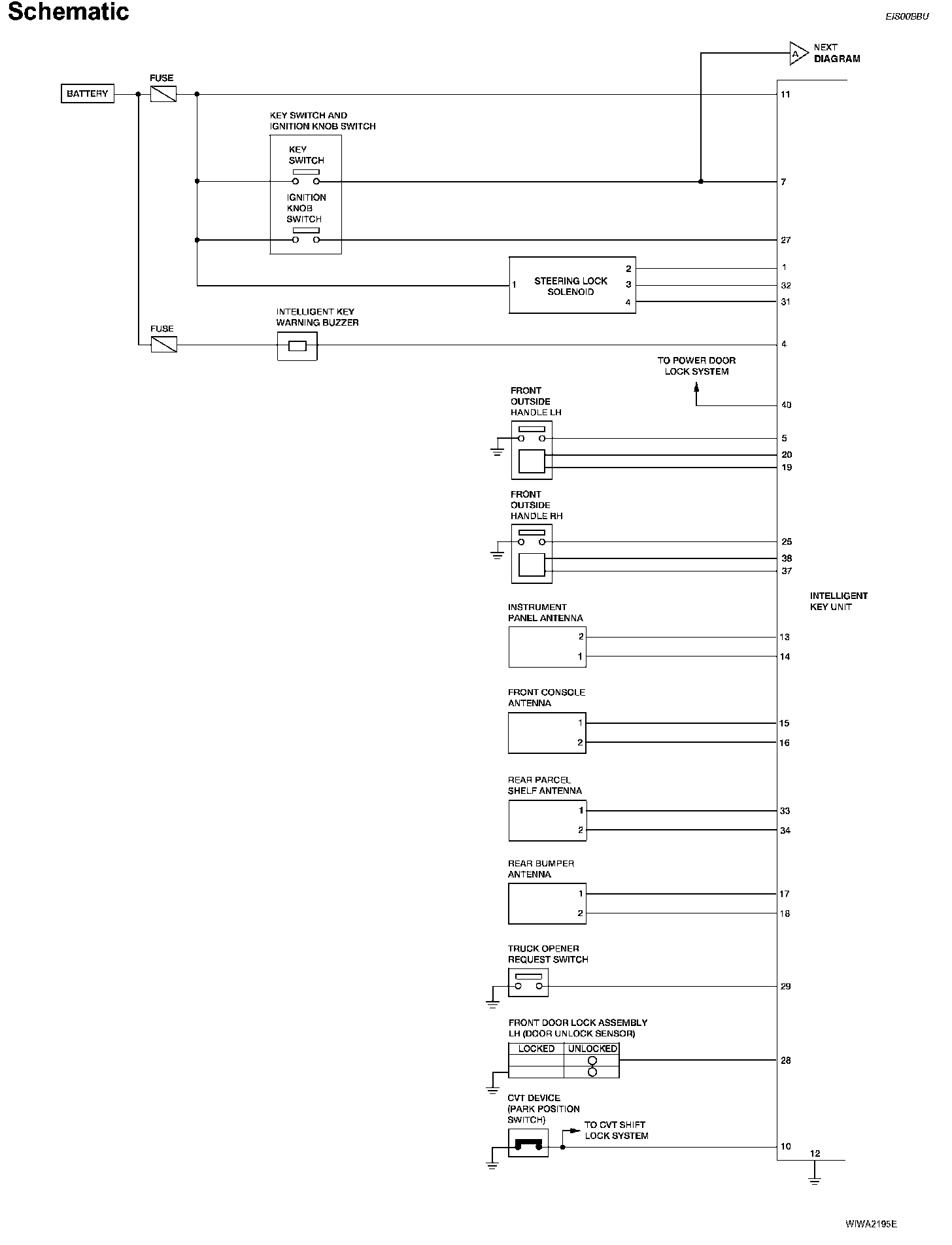

Intelligent Key System Schematic (Part 1):

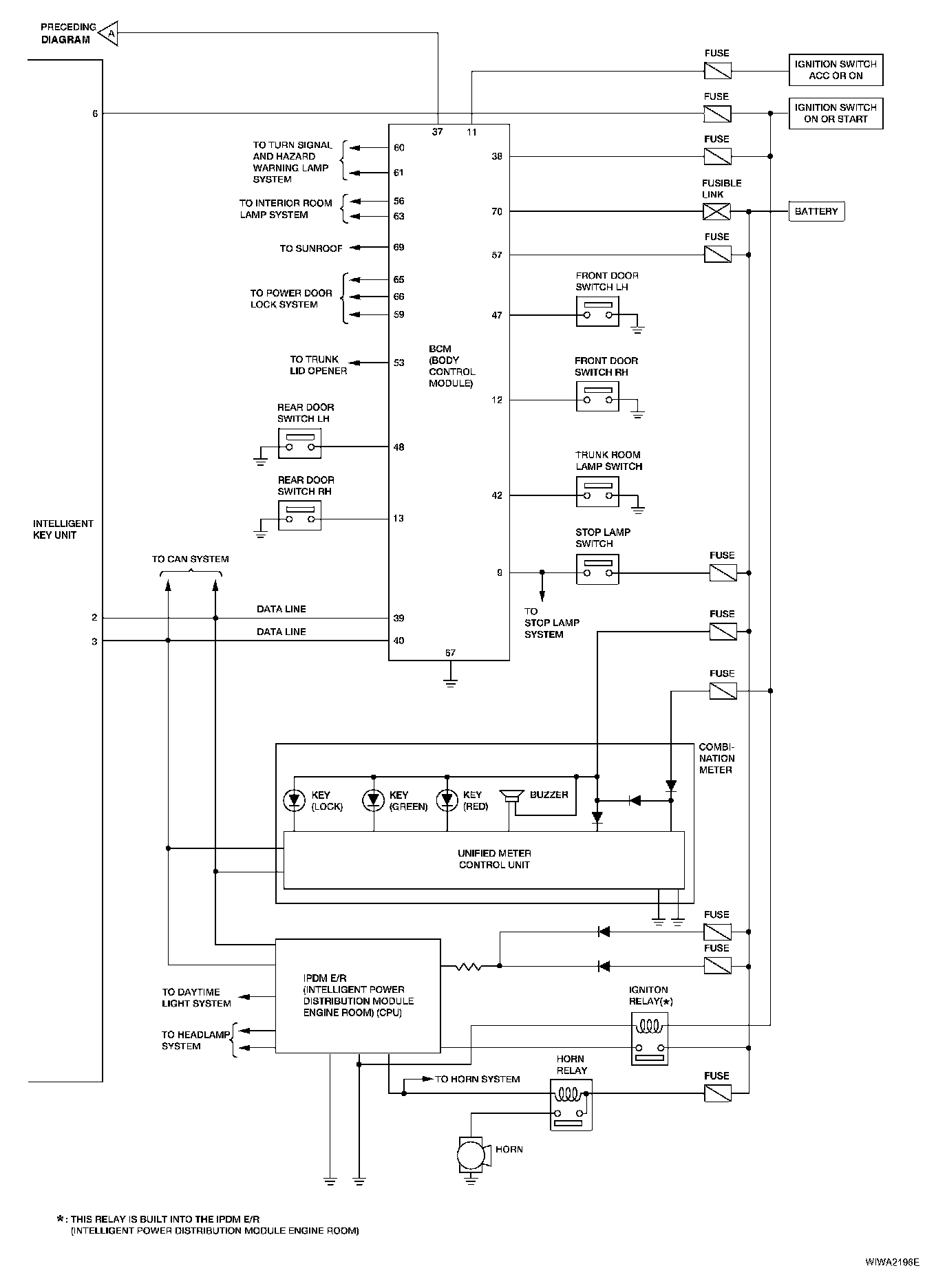

Intelligent Key System Schematic (Part 2):
