System Specifications

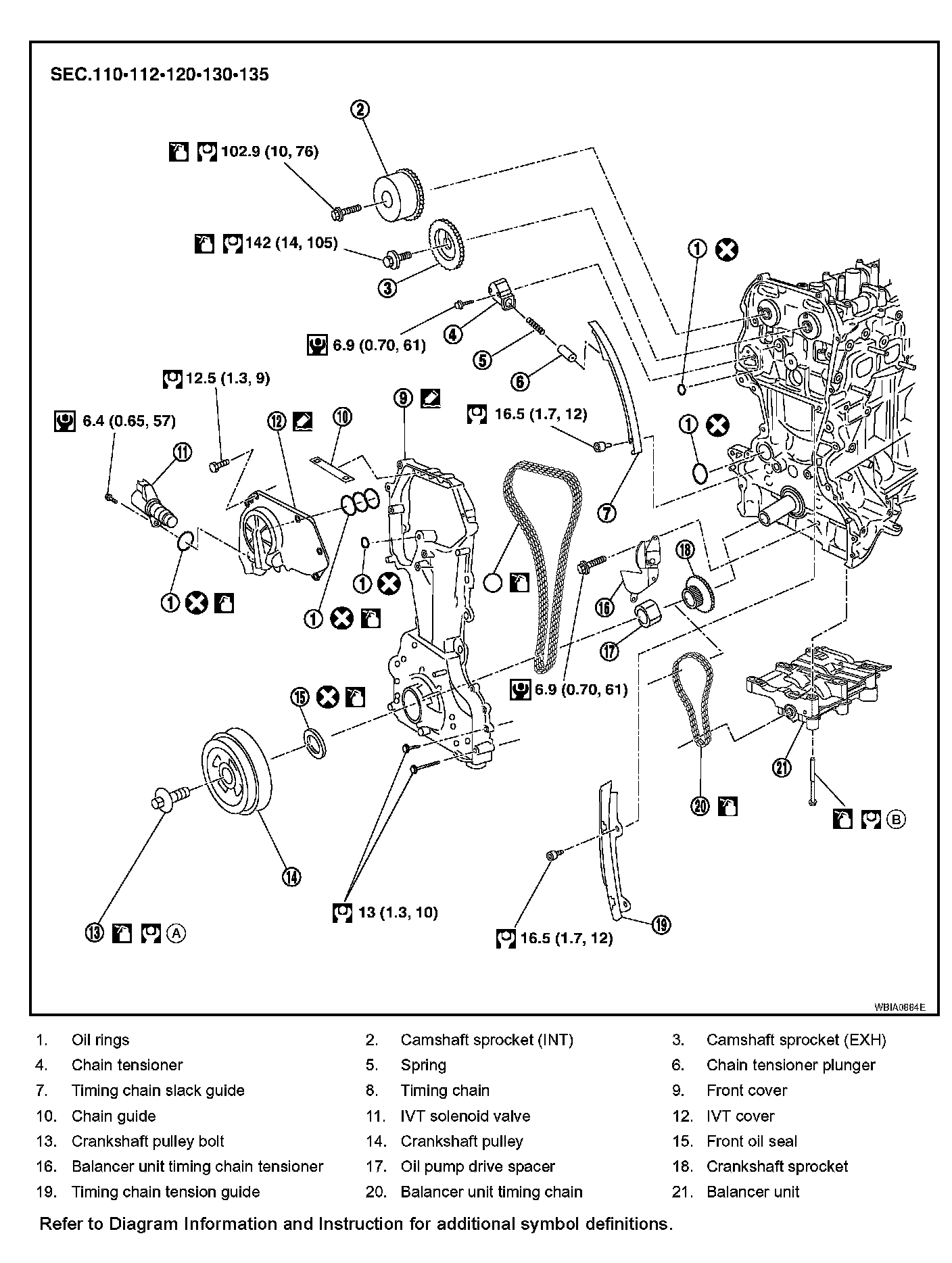

Exploded View EM-160:

Timing Chain Tensioner

Crankshaft Pulley
Tighten crankshaft pulley bolts.
Secure crankshaft pulley with a pulley holder to tighten the bolt.
Perform angle tightening using Tool with the following procedure:
Tool number: KV10112100 (BT-8653-A)
Apply new engine oil to threads and seat surfaces of bolts.
Tighten to initial specifications:
Crankshaft pulley bolt initial tightening 37.3 - 47.1 Nm (3.8 - 4.8 kg-m, 28 - 34 ft-lb)

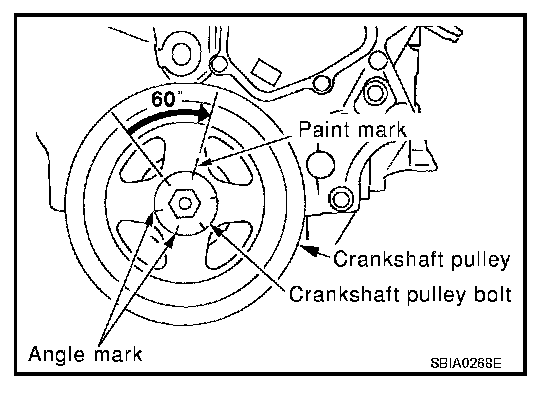

Apply a paint mark on the front cover, mating with any one of six easy to recognize stamp marks on bolt flange.
Turn crankshaft pulley bolt another 60° to 66° degrees [Target: 60° degrees].
Check vertical mounting angle with movement of one stamp mark.

Timing Cover

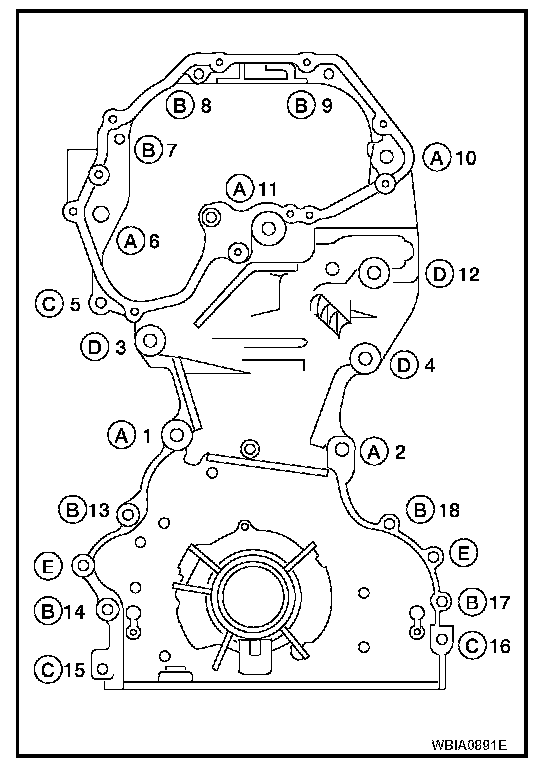

Tighten front cover bolts in the numerical order as shown.
After all bolts are tightened, retighten them to the specified torque.
Front cover bolt torque
Bolts A 49 Nm (5.0 kg-m, 36 ft-lb)
Bolts B 12.7 Nm (1.3 kg-m, 9 ft-lb)
Bolts C 12.7 Nm (1.3 kg-m, 9 ft-lb)
Bolts D 49 Nm (5.0 kg-m, 36 ft-lb)
E Dowel pins
