Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2007
>>
Sentra L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
Shift Control Components
>>
RS6F52H
RS6F52H

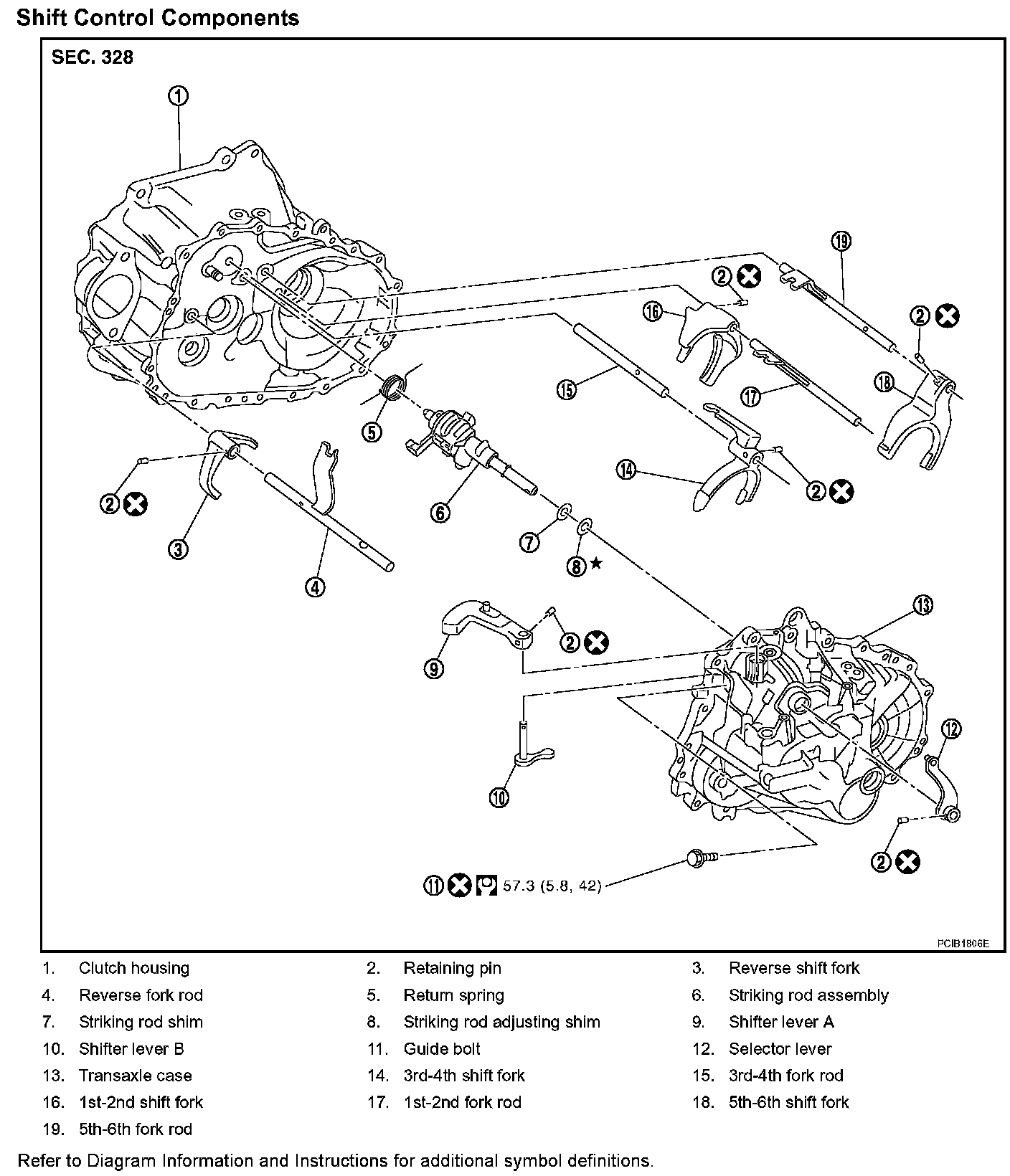

Exploded View MT-147:
