Trunk / Liftgate

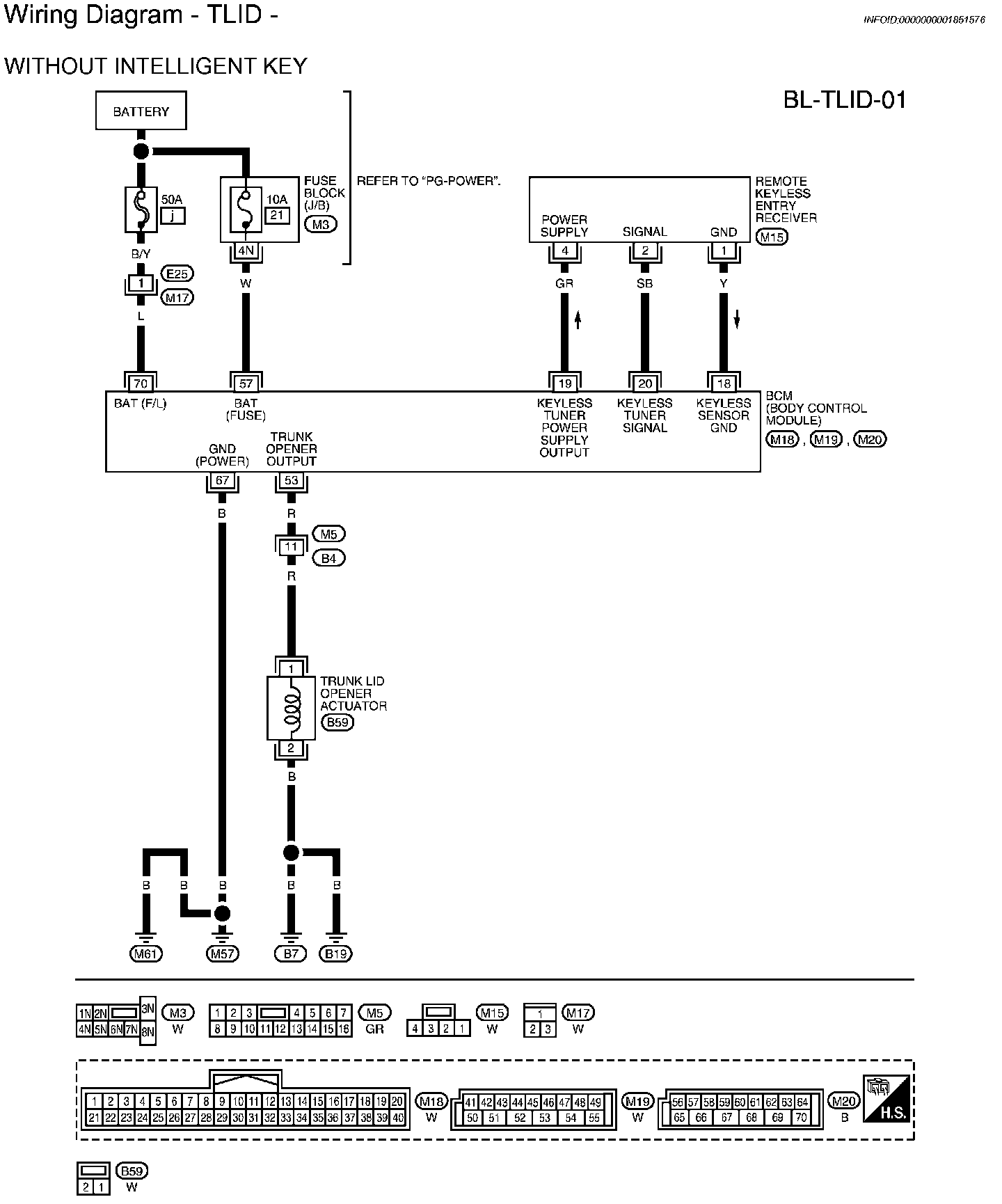

Wiring Diagram - TLID -BL-TLID-01:
WITHOUT INTELLIGENT KEY

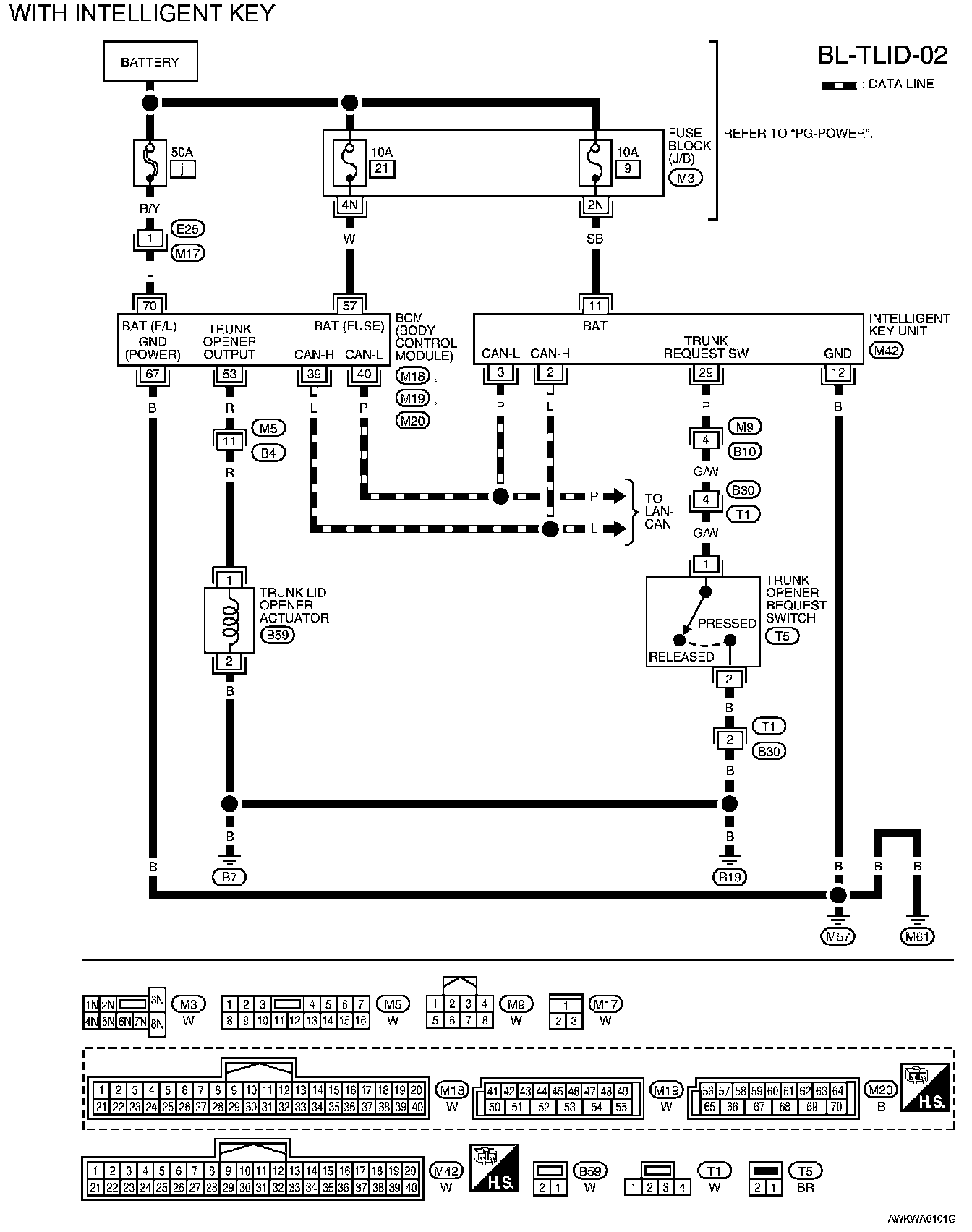

BL-TLID-02:
WITH INTELLIGENT KEY
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
WITHOUT INTELLIGENT KEY
WITH INTELLIGENT KEY
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
