Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2008
>>
Sentra L4-2.0L (MR20DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
>>
System Specifications
>>
Transaxle Assembly
Transaxle Assembly

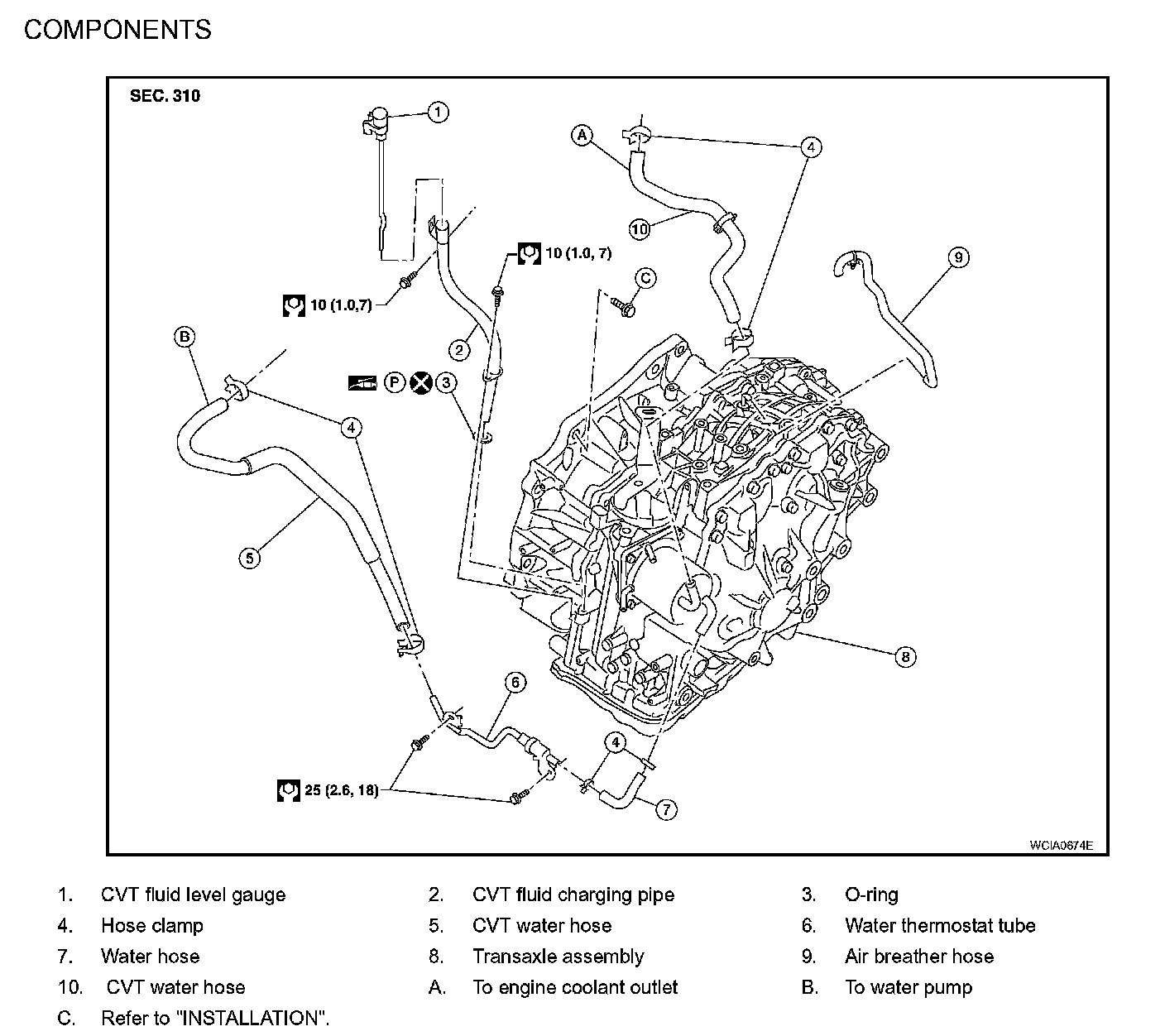

CVT-187 Components:
