Ignition Coil: Service and Repair

Removal and Installation

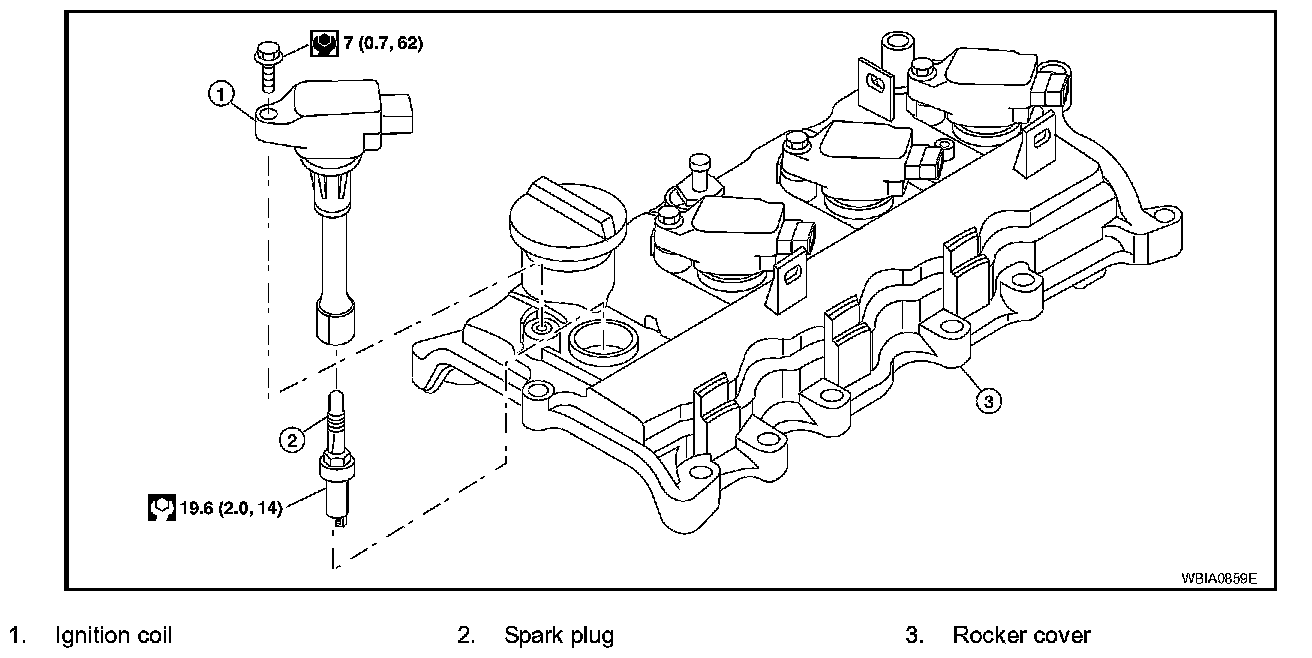

EM-137 Component:

REMOVAL
1. Remove the engine cover.
2. Remove air duct.
3. Disconnect the harness connector from the ignition coil.
4. Remove the ignition coil.

CAUTION:
Do not drop or shock it.

INSTALLATION
Installation is in the reverse order of removal.
