Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2008
>>
Sentra L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
>>
System Specifications
>>
Transmission Pan
Transmission Pan

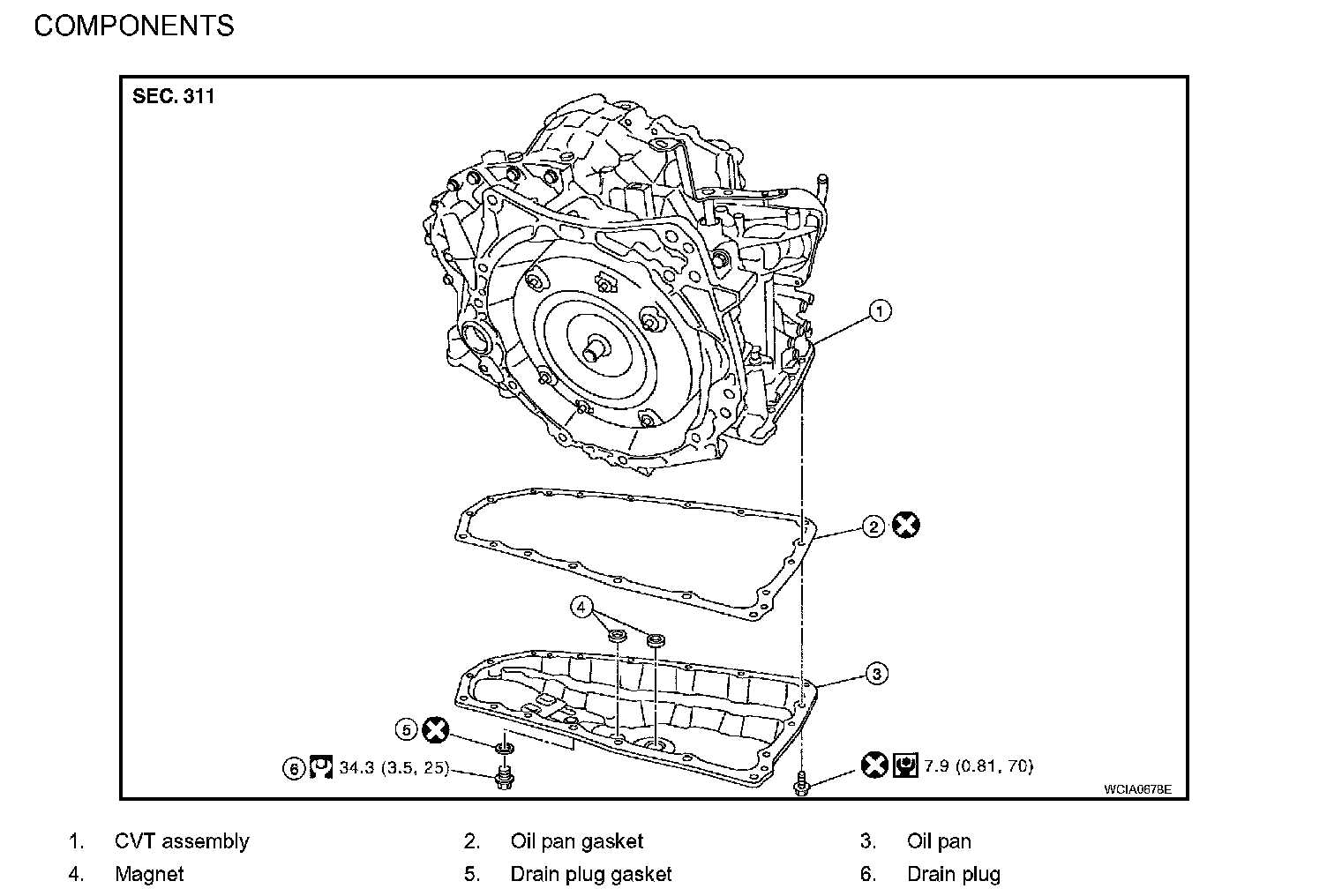

CVT-178 Components:
