Oil Pan, Engine

EM-134 Component:

Oil Pan
Install the two new O-rings in the upper oil pan.

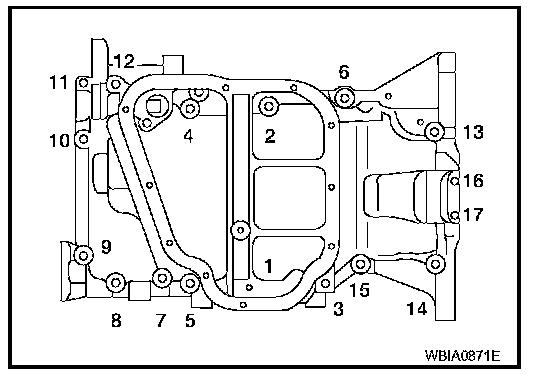

Tighten the upper oil pan bolts in the order as shown.

NOTE:
Use the bolt sizes specified below:
M6 x 20 mm (0.79 in) No.16, 17
M8 x 25 mm (0.98 in) No.3, 4, 6, 11, 13, 14, 15
M8 x 60 mm (2.36 in) No.5, 7, 8, 9, 10
M8 x 100 mm (3.97 in) No. 1, 2, 12

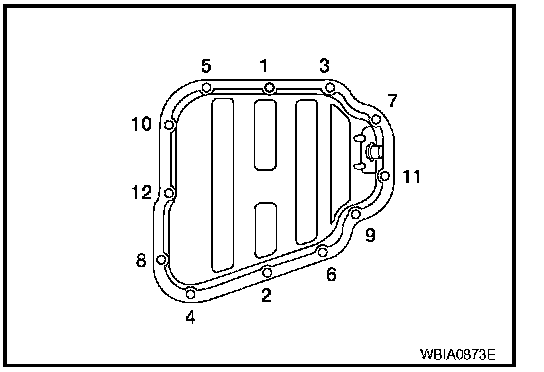

Tighten the lower oil pan bolts in the numerical order shown.
Wait at least 30 minutes after the oil pans are installed before filling the engine with oil.
