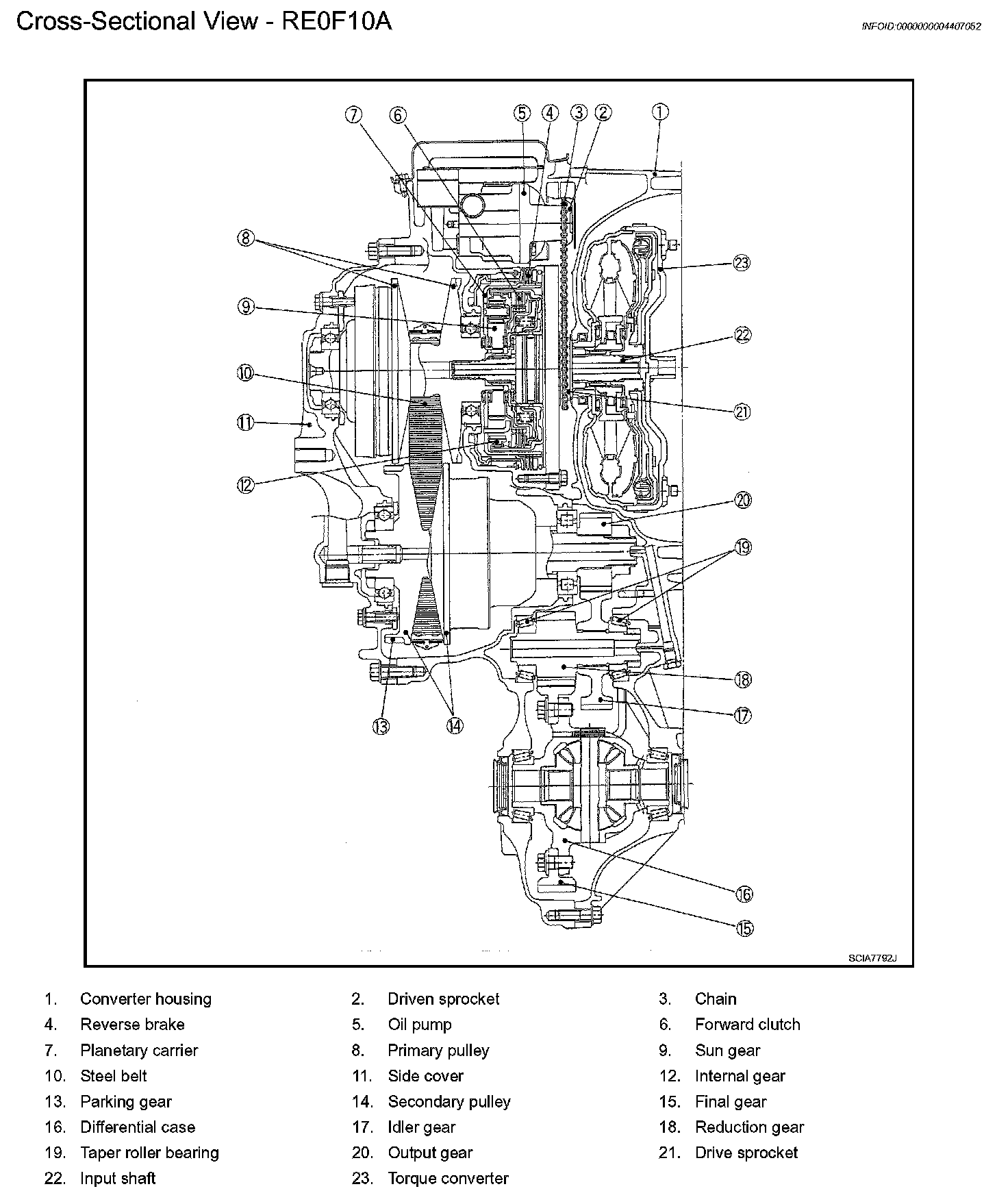

Cross-Sectional View - RE0F10A
Cross-Sectional View - RE0F10A
CVT SYSTEM
Cross-Sectional View - RE0F10A
