Oldsmobile Truck
>>
1991
>>
Silhouette V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Powertrain Controls
>>
Engine Data Sensors, Spark Control & Emission Control
Engine Data Sensors, Spark Control & Emission Control

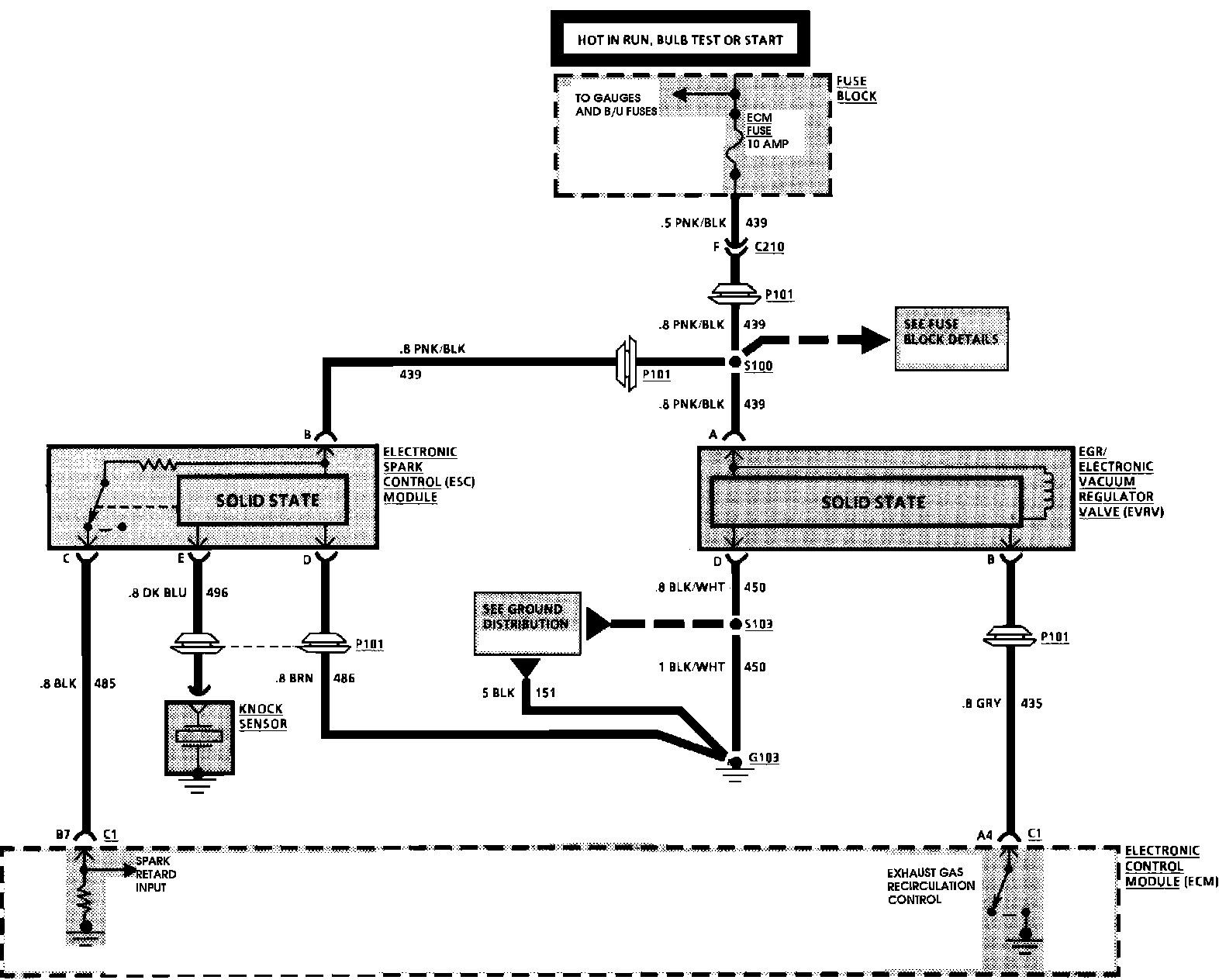

Throttle Body Injection. Engine Data Sensors, Spark Control And Emission Control:
Throttle Body Injection. Engine Data Sensors, Spark Control And Emission Control:
