Connector Description

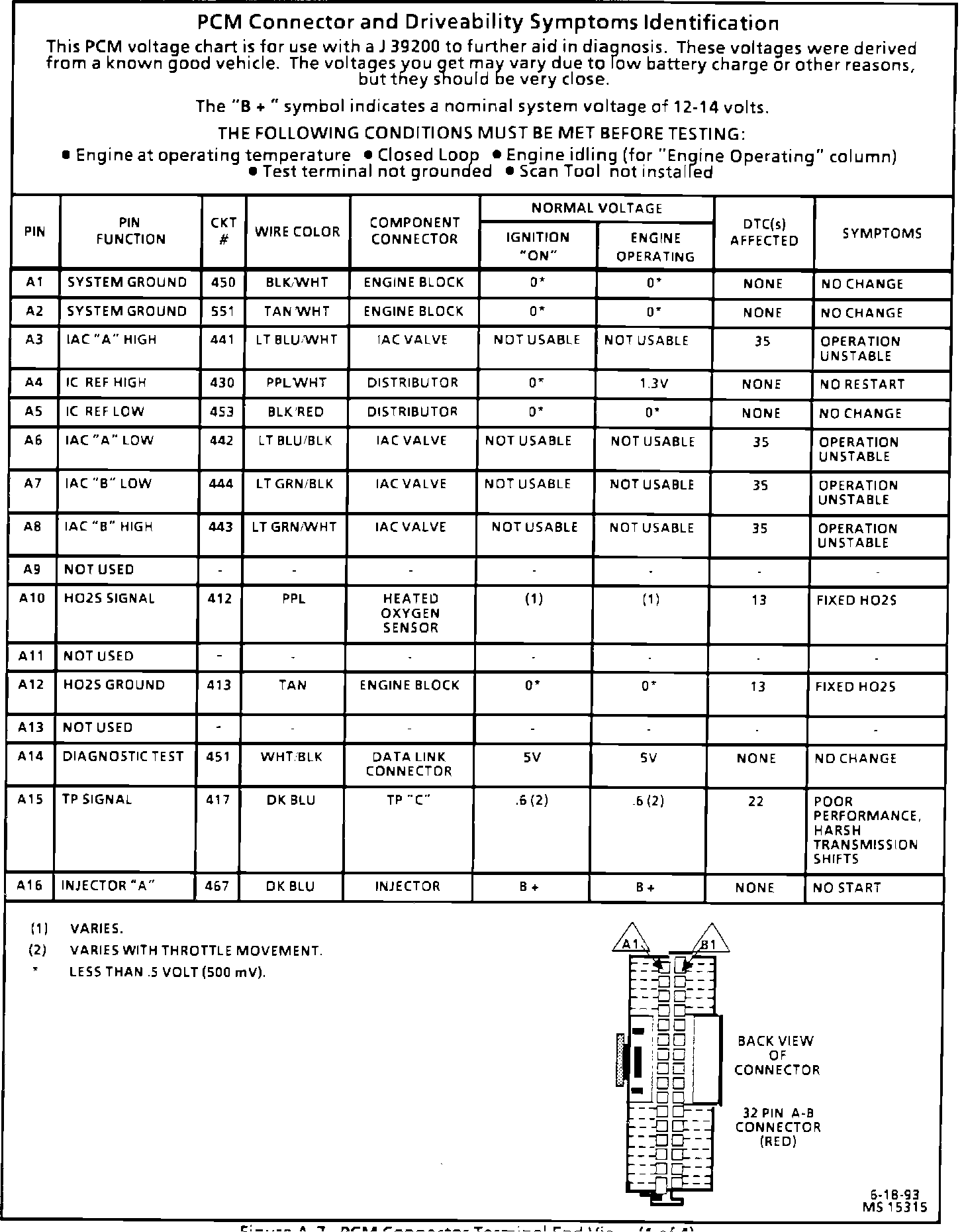

PCM Connector/Pinout Terminal - 4.3W Bravada 93_94 (1 Of 4):

"A" Terminal Pins

PCM Connector/Pinout Terminal - 4.3W Bravada 93_94 (2 Of 4):

"B" Terminal Pins

PCM Connector/Pinout Terminal - 4.3W Bravada 93_94 (3 Of 4):

"E" Terminal Pins

PCM Connector/Pinout Terminal - 4.3W Bravada 93_94 (4 Of 4):

"F" Terminal Pins
