Fuse Block Application Table
Fuse Block Application Table

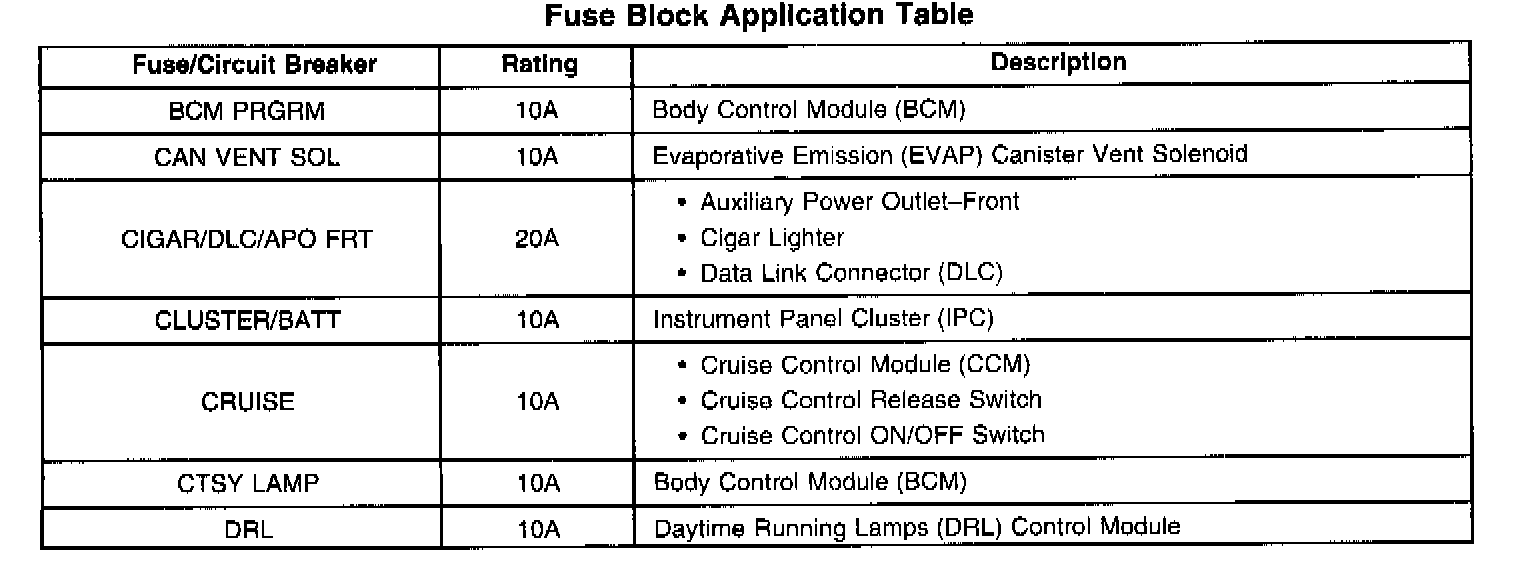

Fuse Block Application Table (Part 1 Of 3):
Fuse Block Application Table (Part 2 Of 3):
Fuse Block Application Table (Part 3 Of 3):
