Steering Column Anchor Cable
Removal Procedure1. Remove the knee bolster.
2. Remove the steering column upper nut.
3. Remove the center console. Refer to Console Replacement-Front Floor in Instrument Panel, Gauges and Warning Indicators.

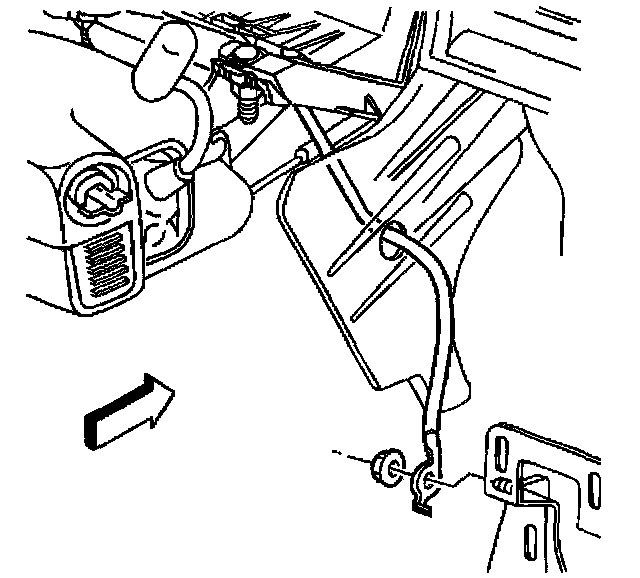

4. Remove the anchor cable nut from the center console bracket.
5. Remove the anchor cable.
Installation Procedure
1. Properly route the steering column anchor cable.
2. Install the anchor cable to the center console bracket stud.
Notice: Refer to Fastener Notice in Service Precautions.
3. Install the anchor cable nut to the center console bracket stud.
- Tighten the steering column anchor nut to 10 Nm (14 ft. lbs.).
4. Install the steering column anchor cable end to the steering column stud.
5. Install the steering column nut. Refer to Steering Column Replacement.
6. Install the center console. Refer to Console Replacement-Front Floor in Instrument Panel, Gauges and Warning Indicators.
7. Install the knee bolster.
