Emission Control Systems: Locations

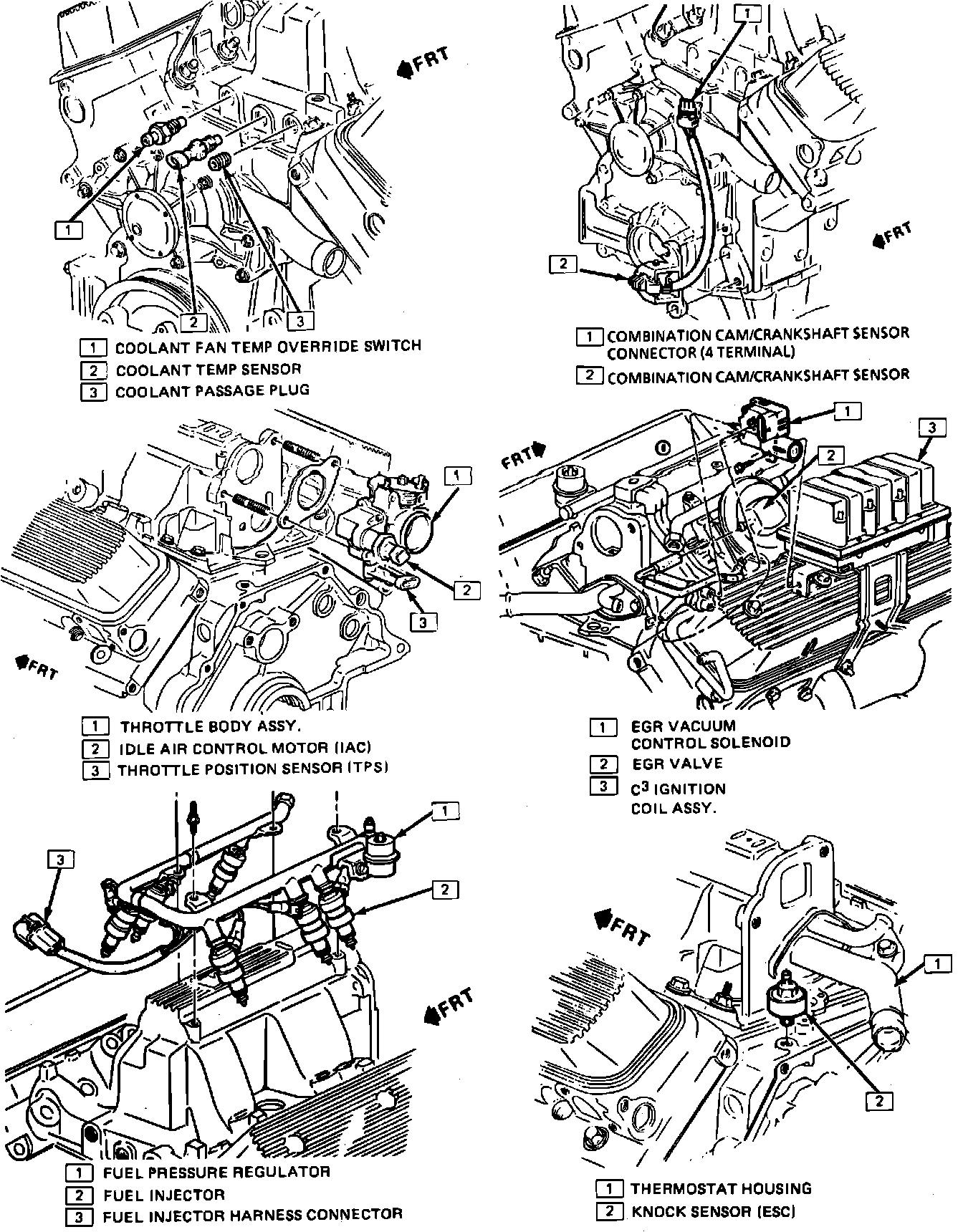

Fig. 48 Emission Component Location. 1986 Calais W/V6-183/3.0L, PFI:
