Throttle Position Sensor: Locations

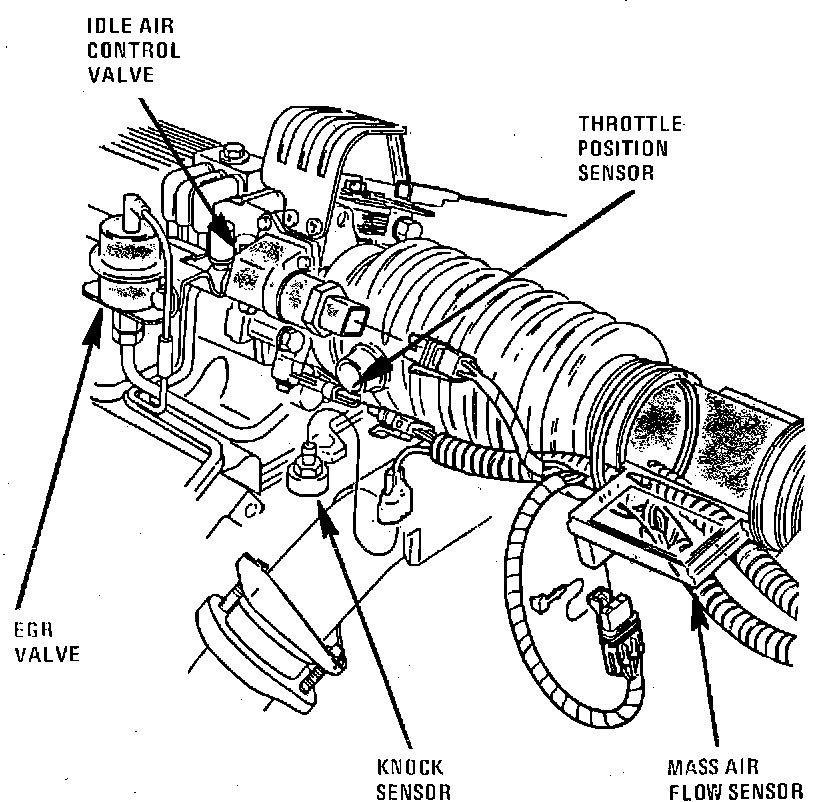

Top LH Side Of Engine:

LH Side Of Engine Near Throttle Body Assembly

Applicable to: 1986 88 & 98 w/V6-181 (3.0L) Engine
