Home >> Oldsmobile >> 1987 >> Cutlass Ciera V6-173 2.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Wiring Circuit >> Part 1 of 3

Part 1 of 3

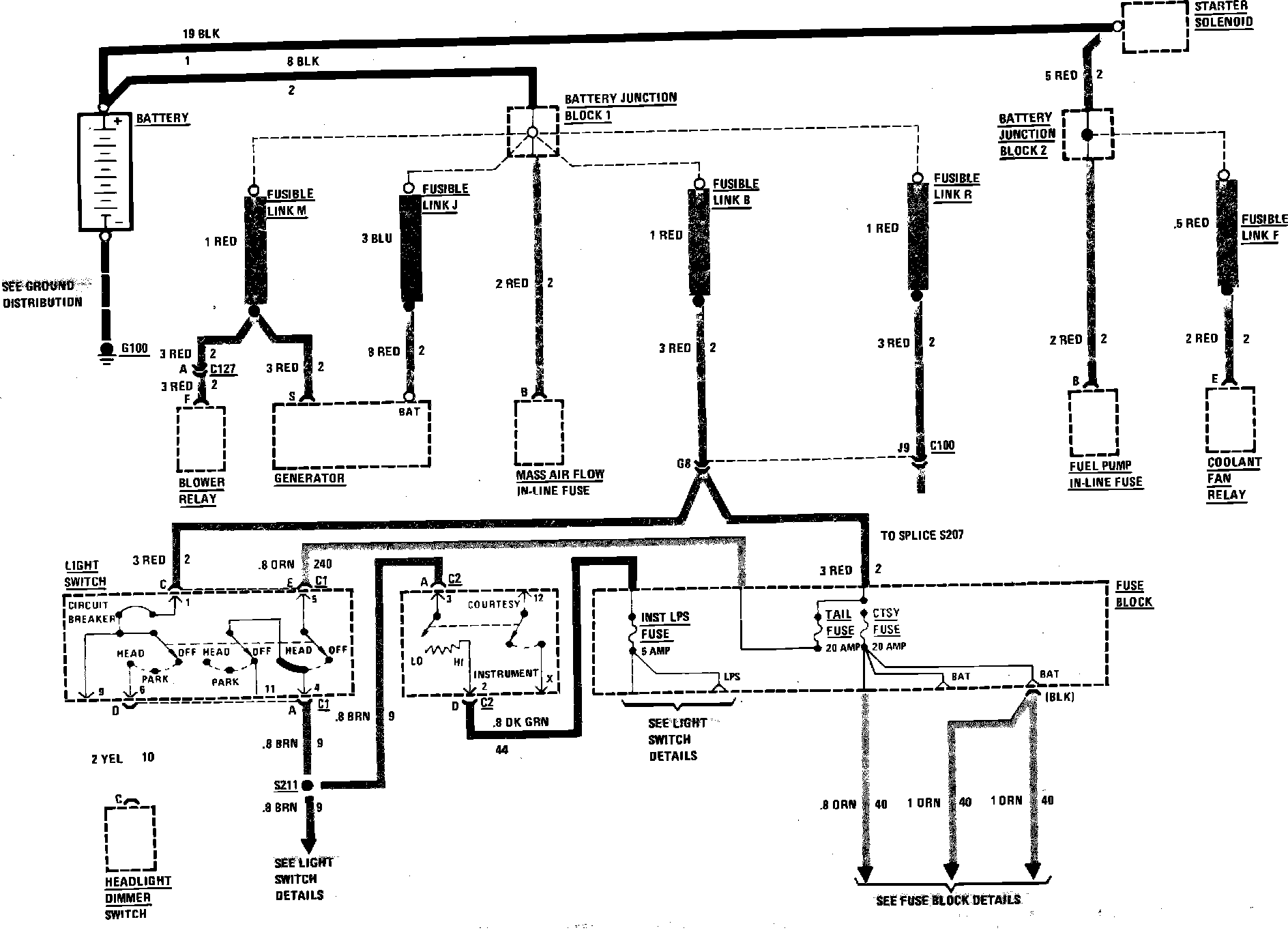

Power Distribution Wiring Circuit (Part 1 Of 3):
